TMC2209 Stepper Motor Driver / Drivers (BTT) Driver

BTTSKU: BT0002299

Sale price$3.99

Customer Reviews

Based on 6 reviews
Pete Tewes
Great little stepper

BTT quality and a great price. What more can you want!?!

Pete T.
Fatastic driver

When you need a 2209, this is what you want! Awesome quality.

Perfect for Octopus!

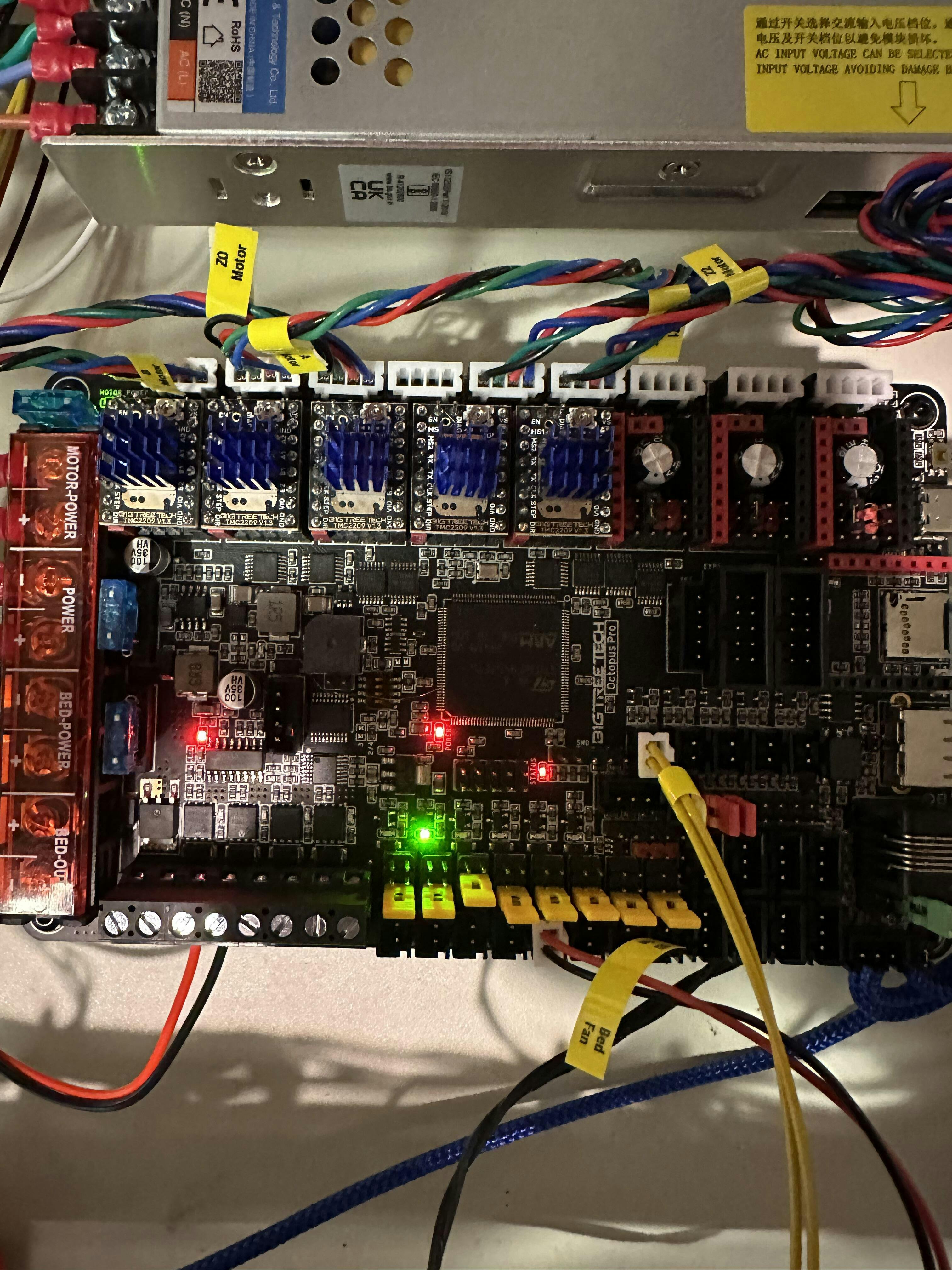

Used these on a BTT Octopus for a Voron 2.4 build, worked perfectly with amazing firmware features. Lower power draw than others I have worked with.


These are sold individually, please use the quantity option to order the amount needed for your use.

The TMC2209 is an ultra-silent motor driver IC for two phase stepper motors. TMC2209 pinning is compatible to a number of legacy drivers as well as to the TMC2208. TRINAMICs sophisticated StealthChop2 chopper ensures noiseless operation,maximum efficiency and best motor torque. Its fast current regulation and optional combination with SpreadCycle allow highly dynamic motion while adding. StallGuard for sensorless homing. The integrated power MOSFETs handle motor currents up to 2A RMS with protection and diagnostic features for robust and reliable operation. A simple to use UART interface opens up tuning and control options. Store application tuning to OTP memory.Industries’ most advanced STEP/DIR stepper motor driver family upgrades designs to noiseless and most precise operation for cost-effective and highly competitive solutions.Step/Dir Drivers for Two-Phase Bipolar Stepper Motors up to 2.8A peak –StealthChop™ for Quiet Movement – UART Interface Option –Sensorless Stall Detection StallGuard4.


  • 2-phase stepper motors up to 2.8A coil current (peak), 2A RMS
  • STEP/DIR Interface with 8, 16, 32 or 64 microstep pin setting
  • Smooth Running 256 microsteps by MicroPlyer™ interpolation
  • StealthChop2™ silent motor operation
  • SpreadCycle™ highly dynamic motor control chopper
  • StallGuard4™ load and stall detection for StealthChop
  • CoolStep™ current control for energy savings up to 75%
  • Low RDSon, Low Heat-Up LS 170mΩ & HS 170mΩ (typ. at 25°C) t
  • Voltage Range 4.75… 29V DC
  • Low Power Standby to fit standby energy regulations
  • Internal Sense Resistor option (no sense resistors required)
  • Passive Braking, Freewheeling, and automatic power down
  • Single Wire UART & OTP for advanced configuration options
  • Integrated Pulse Generator for standalone motion
  • Full Protection & Diagnostics

Technical Specifications

Model TMC2209
Interface Step/Dir
Configuration CFG Pins or UART
Native Microsteps up to 1/256
microPlyer Microsteps 1/256
Logic Voltage (VIO) 3-5V
Motor Voltage (VM) 5.5-28V
Motor Phase Current max 2A RMS, 2.8A Peak
Internal V- Regulator enabled
RDSon 0.1 Ohm (HV 0.2 Ohm)
stealthChop (quiet) yes
spreadCycle yes
coolStep yes
stallGuard yes
dcStep yes
