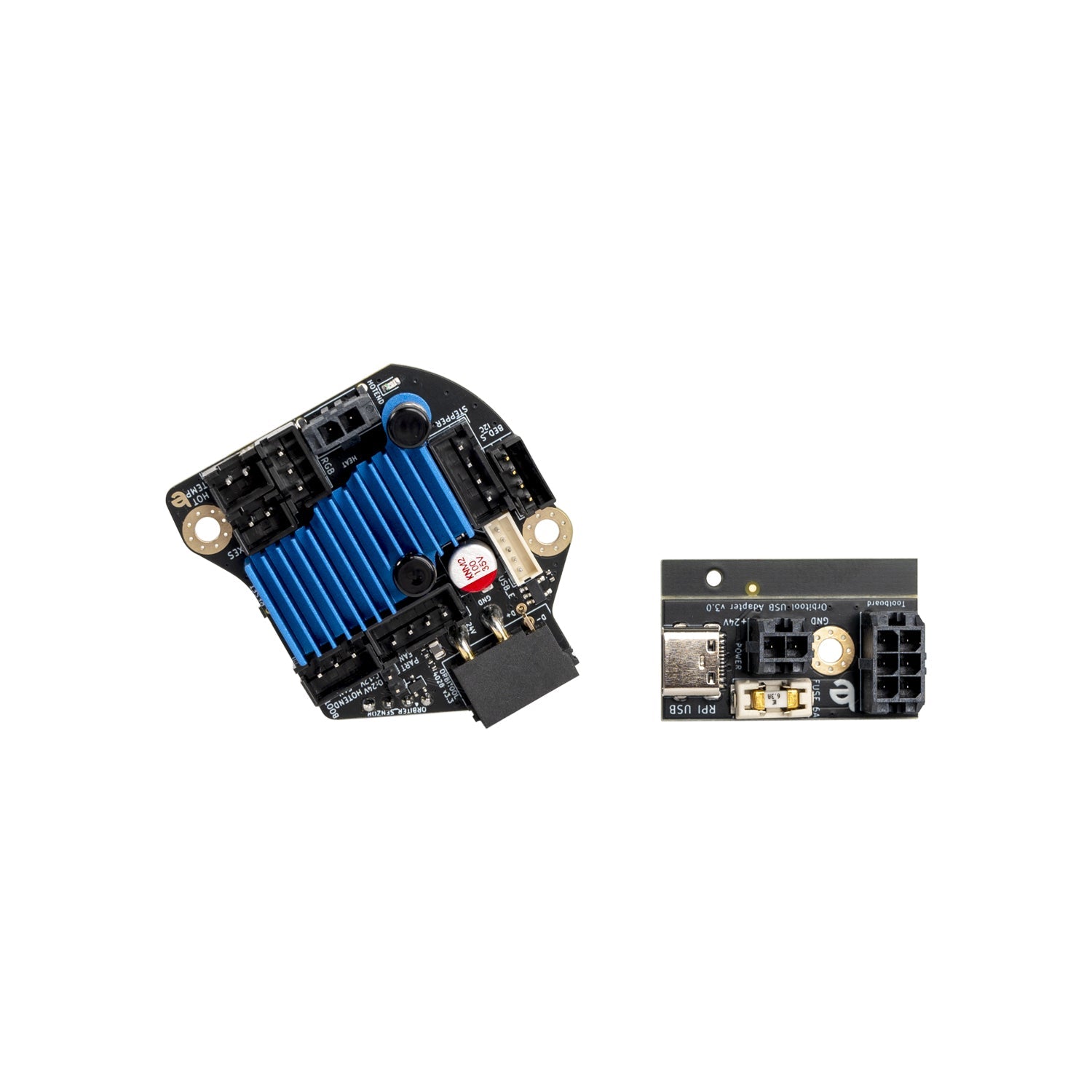

Orbitool Toolhead PCB Board for Orbiter 2 (O2S) and Smart Orbiter 3 (SO3) by LDO Motors

Save $13.00
LDO MotorsSKU: LDO3063ORB

Size: Orbital O2S - Newest for Orbiter 2 -Pre-Order Arrives in July
Price:
Sale price$64.00 Regular price$77.00

Customer Reviews

Based on 6 reviews
50%
(3)
17%
(1)
0%
(0)
17%
(1)
17%
(1)
J
John Halvorson
Orbiter 2.5 + sensor + toolhead PCB is FANTASTIC!

Everything works seamlessly. Flashing and klipper config is easy. If you want an orbiter extruder, get this along with the sensor. Great for a dragonburner in the Voron 0.2 or XOL in the 2.4! Keep your extruder motor current reasonable and there's no overheating issues.

T
Tinieblas
A Hidden Treasure

I have to admit that our first encounter wasn’t easy. Getting my first Orbitool v2 up and running took some time. Thankfully, a West3D team member on Discord spent an hour with me helping out until we finally got it working. Since then, this is already my third Orbitool v2. I’ve tried other toolheads and even the Nitehawk, but it’s just not the same. I don’t like them.

This beast, besides fitting the Orbiter with filament sensor like a glove, has handled PA12 prints in a 60°C chamber at 310°C on a Mosquito for 23 hours straight. So yeah, I’m more than happy. In my opinion, it performs better than the BTT CAN, Nitehawk, etc.

Like I always say, if more people knew about this little beast, it would probably outshine the BTT CAN.

What don’t I like? The cable. They should really offer a longer option, at least 2 meters. I've had to remake the cable for all my Orbiters.

What would I love to see? A tech upgrade with a mini USB compatible with Beacon3D. If not that, then at least something to make it compatible, so we can skip the extra wiring.

Cheers!

S
Sunny
I really wanted to like this board!!

I’ve had the following toolboard installed on my printer for about a week. The main issue with this board is that it does not handle an enclosed chamber very well. It frequently loses connection, and I constantly experience connection issues during prints. In the time I’ve had it installed, I’ve only been able to complete one print (a major headache). My previous setup had 900+ hours with no issues asides from user error or klipper errors.

On the positive side, the board is very easy to set up and get running, and it pairs well with the whole Orbiter ecosystem. However, I would strongly suggest that anyone considering this board wait until they release a new version, as it is plagued with many issues.

Description

You asked, and it's here! A PCB optimized for Orbiter featuring the orbiter sensor, accelerometer for input shaping, a TMC2209 stepper driver all with USB communication - it's kind of nice.

Should a tool-board magic smoke come out because of user error? Why?

Should a tool-board be destroyed by a fault in your 3D printer? Why?

The answer is NO! And this is what this tool-board is all about!

We are hobbyists, and let’s face it, we do mistakes, and when the magic smoke shows up everybody is disappointed, even if we know it’s a user fault. In this board, I promise you the magic smoke is kept inside extremely tight!

Some of the main features:

• Optimized for Orbiter v2 and SO3 shape and features including orbiter sensor

• STM32F042 microcontroller running on 48MHz

• Automotive USB communication with Raspberry PI

• Onboard LIS2DW12 accelerometer

The new O2S for Orbiter 2

This is the second revised version of the Orbiter O2 toolboard.

Some of the main features:

• Optimized for Orbiter v2, v2.5 shape and features, including orbiter sensor

• STM32F072 microcontroller running on 48MHz - full klipper support with automatic update possibility

• Automotive USB communication with Raspberry PI

• One auxiliary USB connector for bed scanner, nozzle camera, or other inteligent USB connected accessory

• Onboard ADXL345 accelerometer

• TMC2240 extruder stepper driver - for better thermal behavior

• Direct connection to Orbiter v2 sensor

• PWM 4,3,2 wire part fan output, compatible with 12/24V fan types with RPM speed input signal

• DC-DC converter based Hot-end fan driver, compatible with 12/24V fan types with RPM speed input signal

• Hot-end temperature sensor input compatible with standard NTC or PT1000 temperature sensor types

• I2C for bed level sensing and scanning

• X-Stop sensor input

• RGB LED driver output

• Onboard temperature sensor

• Advanced thermal management system

GitHub for Orbitool O2S

Manual for Smart Orbiter 3
