Description
This is an updated high temp motor set for the Voron 2.4 by OMC/SteppersOnline. These are BOM spec motors, we spent weeks cultivating a relationship to offer these to you at an affordable price and in stock.
Included are:
1x 14RE08-1004S-H x 1 (high temp motor) Class H (180C temperature rating) Nema 14 Stepper Motor. 1.8 degree step angle, 200 steps per revolution, 1A, 1.0Ncm holding torque, 21mm body, 6mm output shaft (5mm D) (Full Datasheet; Torque Curve)
6 x NEMA17 Motor 17HS19-2004S1-H Class H (180C temperature rating) Nema 17 Stepper Motors. 1.8 degree step angle, 200 steps per revolution, 2A, 5.9Kgf cm holding torque, 48mm body, 24mm output shaft (5mm D) (Full Datasheet; Torque Curve)

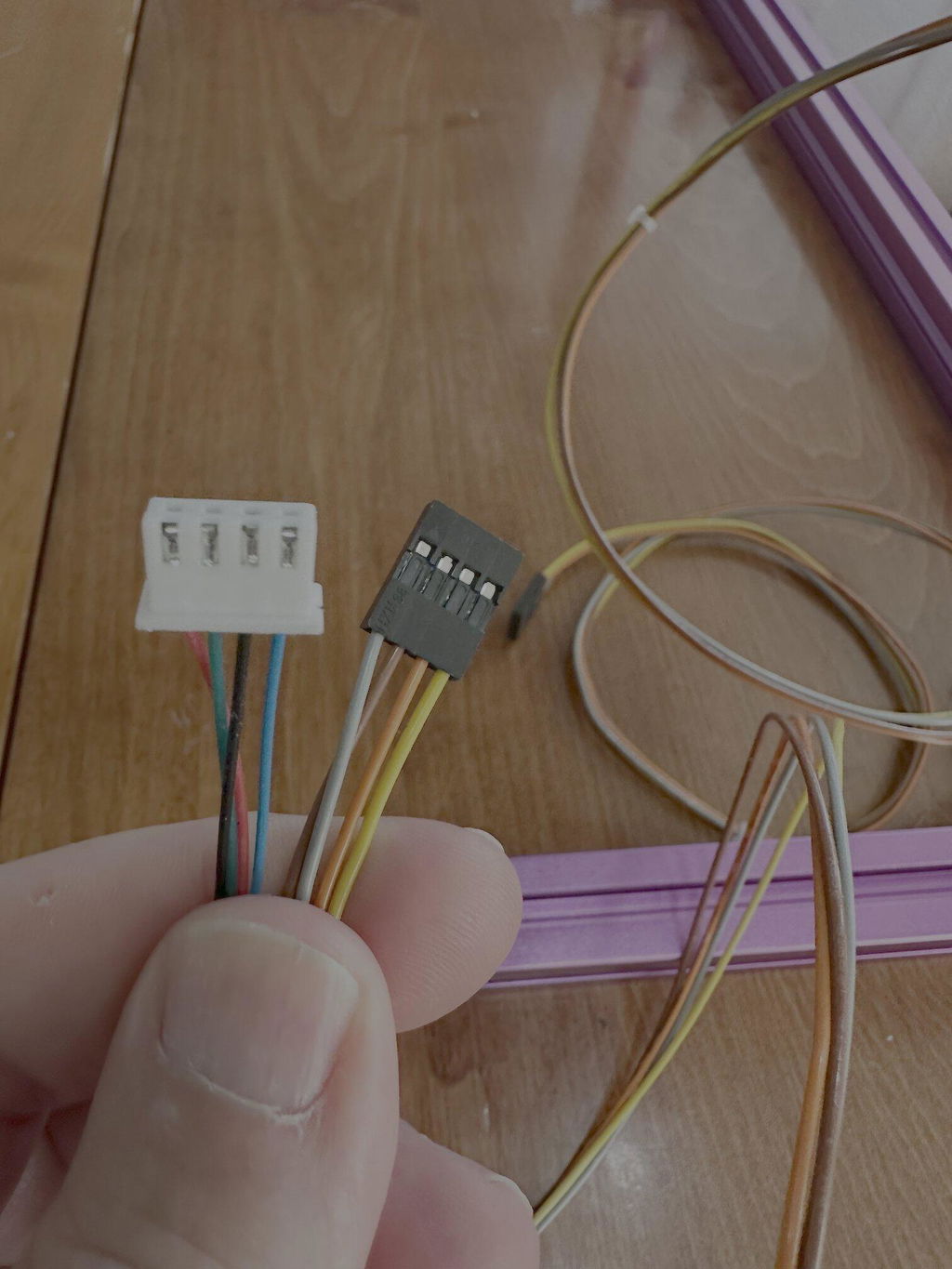

Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Please note: These are categorized as "high temperature" motors, they have a higher insulation class than standard motors and are intended to perform better at higher currents and higher ambient temperatures. However running at or near full amperage in environments higher than 40C will impact longevity. We generally recommend for higher temperature environments to lower your amperage to increase the life of the motor.
