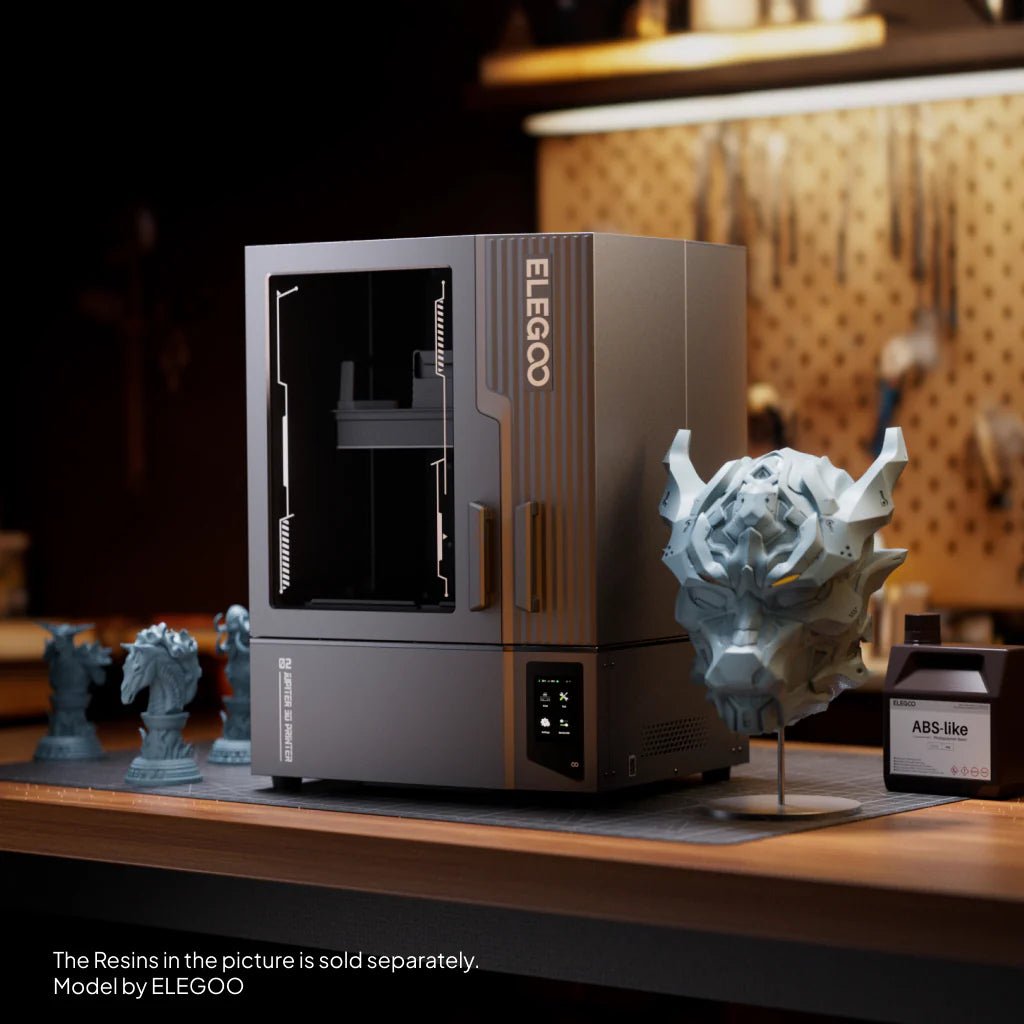

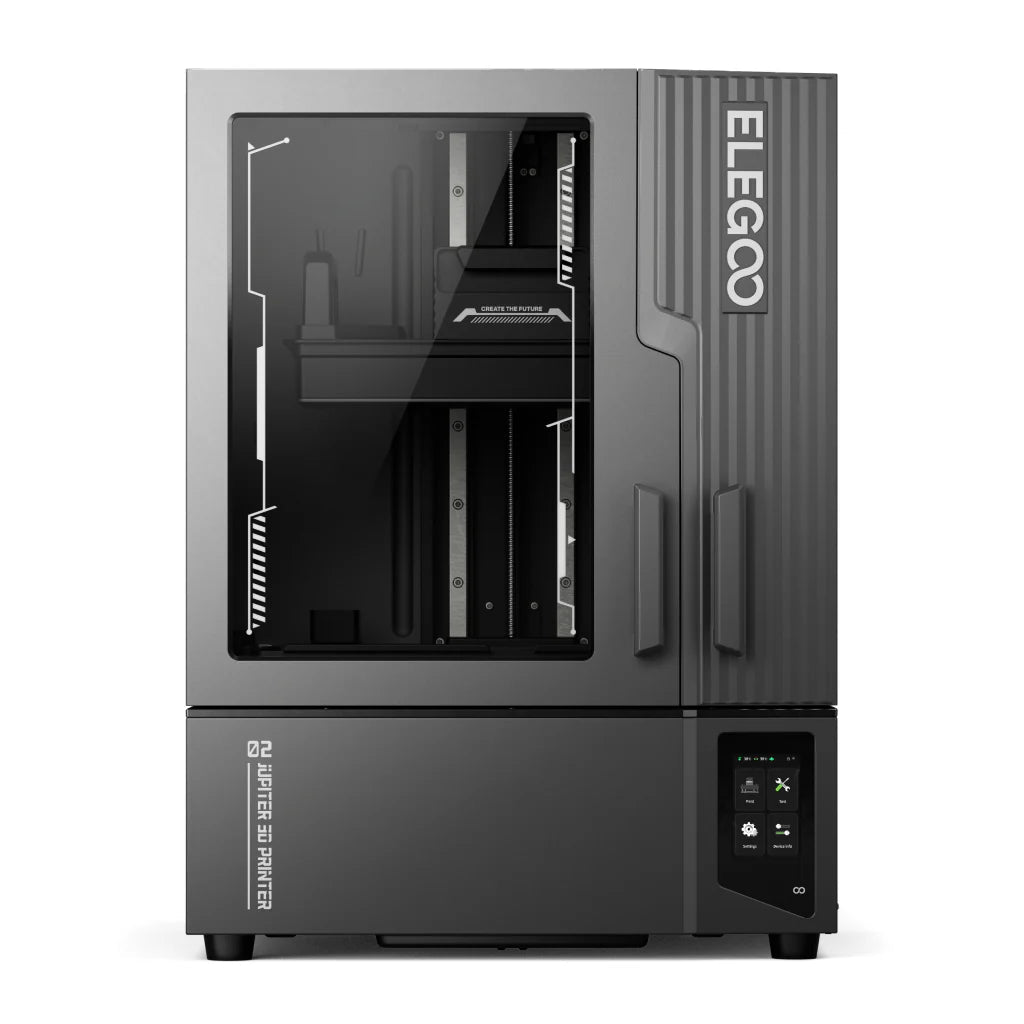

ELEGOO Jupiter 2 Large-Format 16K Resin 3D Printer
Go bigger without giving up the details.
The ELEGOO Jupiter 2 is a professional large-format resin 3D printer built for makers, studios, and businesses that need serious build capacity with the precision expected from modern MSLA printing. Its massive 302 × 162 × 300 mm build volume gives you room to produce large models in fewer sections, maximize batch production, or fill the plate with detailed miniatures and functional parts.
At the center of the Jupiter 2 is a 14-inch 16K monochrome LCD with a resolution of 15120 × 6230 pixels and an impressive 20 × 26 micron XY pixel size. That combination delivers crisp textures, clean edges, and smooth surfaces—even across a significantly larger build area. A fully enclosed light source helps maintain consistent exposure across the screen for dependable results from one side of the plate to the other.
Large-Format Printing Made Smarter
Large resin prints demand more than just a bigger screen. The Jupiter 2 adds automation and monitoring features designed to reduce setup time and protect long, resin-intensive print jobs.
A multi-point automatic leveling system uses four independent force sensors to calibrate the build platform and help establish a reliable first layer. The smart resin tank heater maintains resin at up to 30°C, improving flow and helping produce more consistent exposure, adhesion, and surface quality—especially in cooler workspaces.
The automated resin management system can feed resin into the vat as needed and recycle excess resin back into a compatible 2 kg ELEGOO bottle. Bottle-level monitoring provides alerts when resin is running low, reducing the risk of losing a large print simply because the vat ran dry.
Built for Long, High-Value Prints
An integrated camera with LED lighting supports remote print monitoring and time-lapse recording, allowing you to check progress without standing next to the machine. Power-loss recovery helps preserve lengthy projects after an interruption, while mechanical sensors monitor for resin shortages, leveling errors, and residue that could potentially damage the LCD.
The Jupiter 2 also includes active LCD cooling and high-temperature protection. If LED temperatures exceed the safe operating range, the printer can pause the job and alert the user.
Easier Maintenance, Less Downtime
ELEGOO designed the Jupiter 2 to simplify maintenance on a machine of this scale. Its quick-lock release-film system allows tool-free film changes without removing and reinstalling a long row of screws. The modular LCD assembly is also designed for faster, cleaner screen replacement.
Dual front doors provide convenient access without requiring a tall lift-off cover, while the laser-engraved build plate promotes strong adhesion during printing. A resin drip tray helps protect the machine and surrounding workspace during build-plate removal.
Connected Control for Individual Printers and Print Farms
Dual-band Wi-Fi, over-the-air firmware updates, and integration with ELEGOO SatelLite and the ELEGOO Matrix app provide a connected workflow from slicing through remote printer management. Wi-Fi cluster management also makes the Jupiter 2 a strong option for businesses operating multiple machines or building a large-format resin production farm.
Whether you are producing display models, cosplay components, prototypes, sculptures, production parts, or large batches of miniatures, the ELEGOO Jupiter 2 delivers the build space, resolution, and intelligent automation needed to take on ambitious resin printing projects.
Key Features
-
Massive 302 × 162 × 300 mm build volume
-
14-inch 16K monochrome LCD
-
15120 × 6230 screen resolution
-
Fine 20 × 26 micron XY pixel size
-
Multi-point automatic leveling with four force sensors
-
Smart resin-tank heating up to 30°C
-
Automatic resin feeding and recycling
-
Compatible with ELEGOO 2 kg resin bottles
-
Resin bottle level monitoring and shortage alerts
-
Built-in camera with LED lighting
-
Remote monitoring and time-lapse recording
-
Residue, leveling-error, and resin-shortage detection
-
Power-loss recovery
-
Active LCD cooling and over-temperature protection
-
Tool-free quick-swap release-film system
-
Modular, service-friendly LCD design
-
Dual-band Wi-Fi and OTA firmware updates
-
Wi-Fi cluster management for multi-printer workflows
-
4-inch touchscreen interface
-
Rear 75 mm exhaust connection
-
Compatible with most 405 nm UV-curing resins

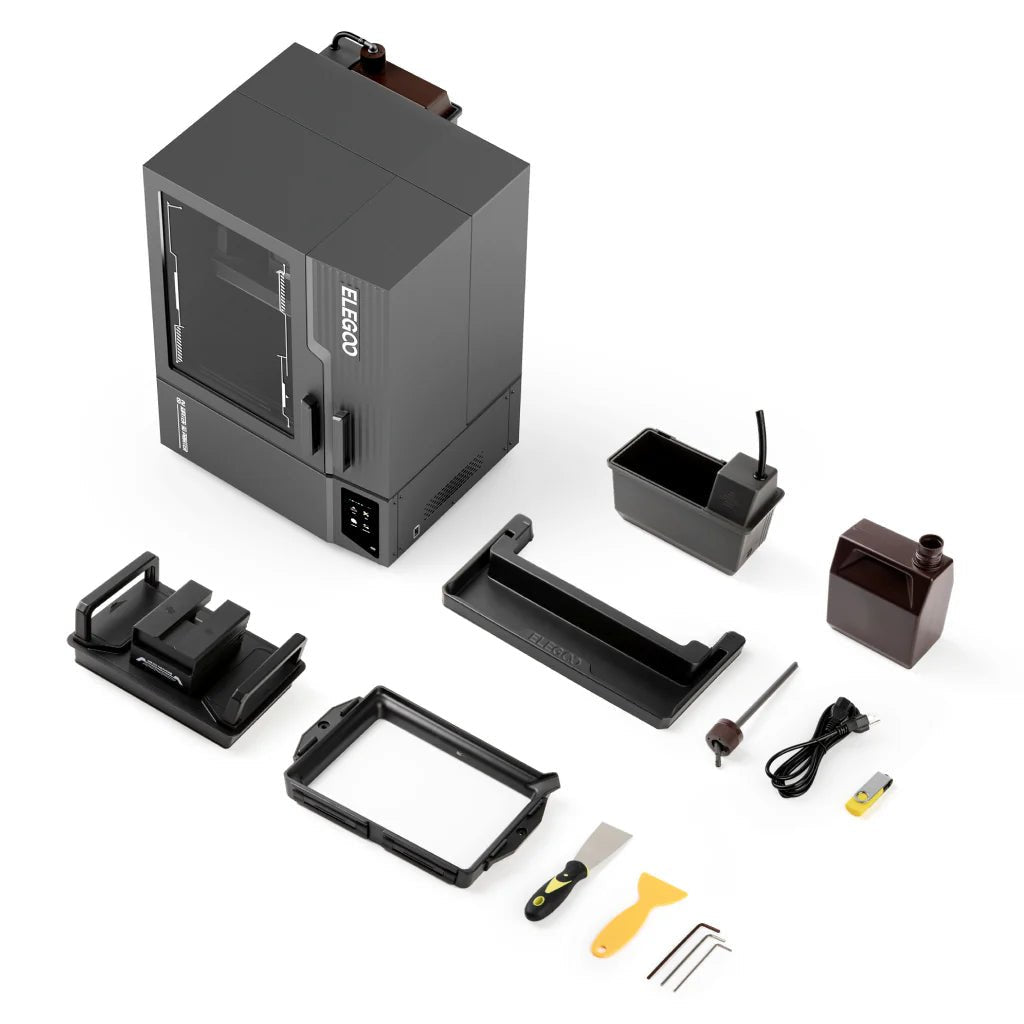

What’s in the Box
-
ELEGOO Jupiter 2 Resin 3D Printer
-
Build platform
-
Resin tank
-
Automated resin feeding and recycling system
-
Resin drip tray
-
Included tools and accessories
-
Power supply and documentation
Please note: Resin prints must be properly washed and cured after printing. Always use resin in a well-ventilated workspace and follow the resin manufacturer’s handling and safety instructions.
