Description

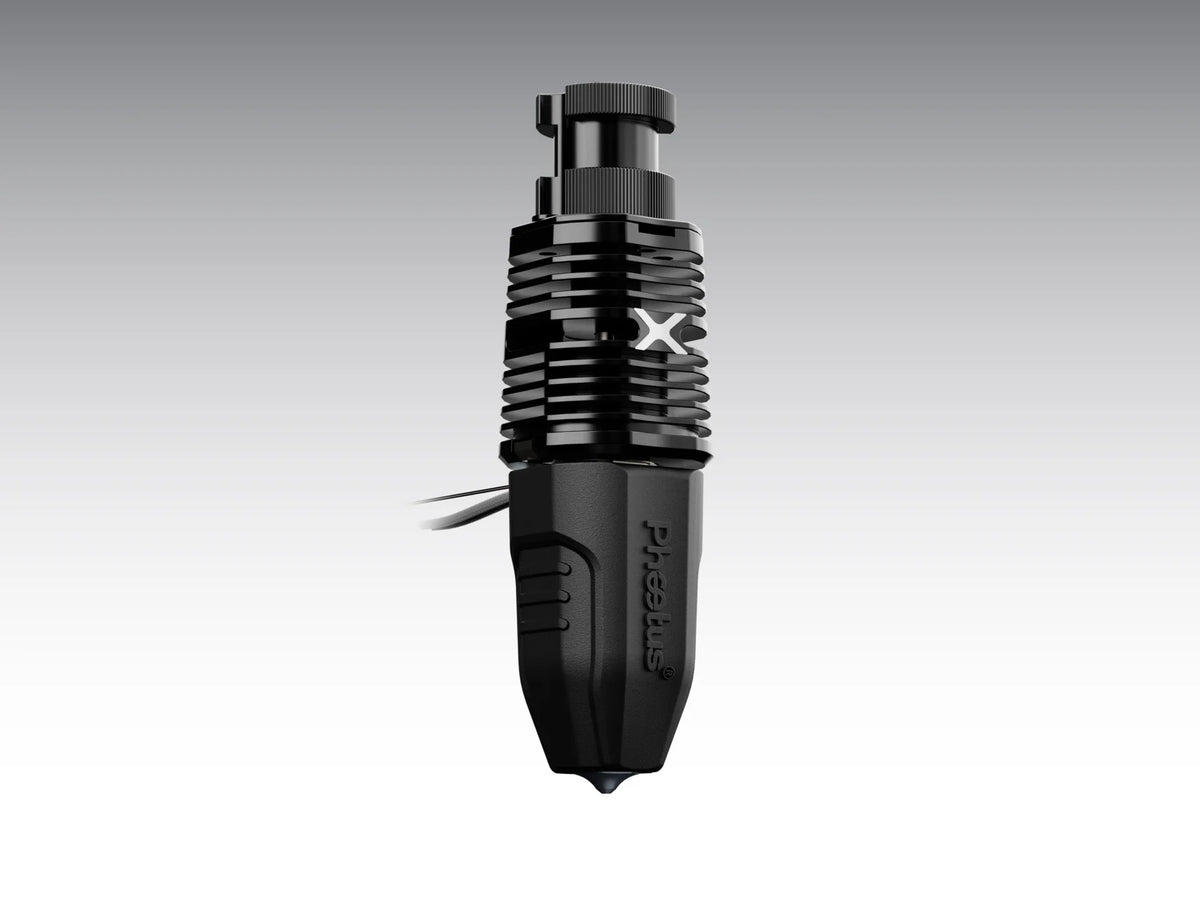

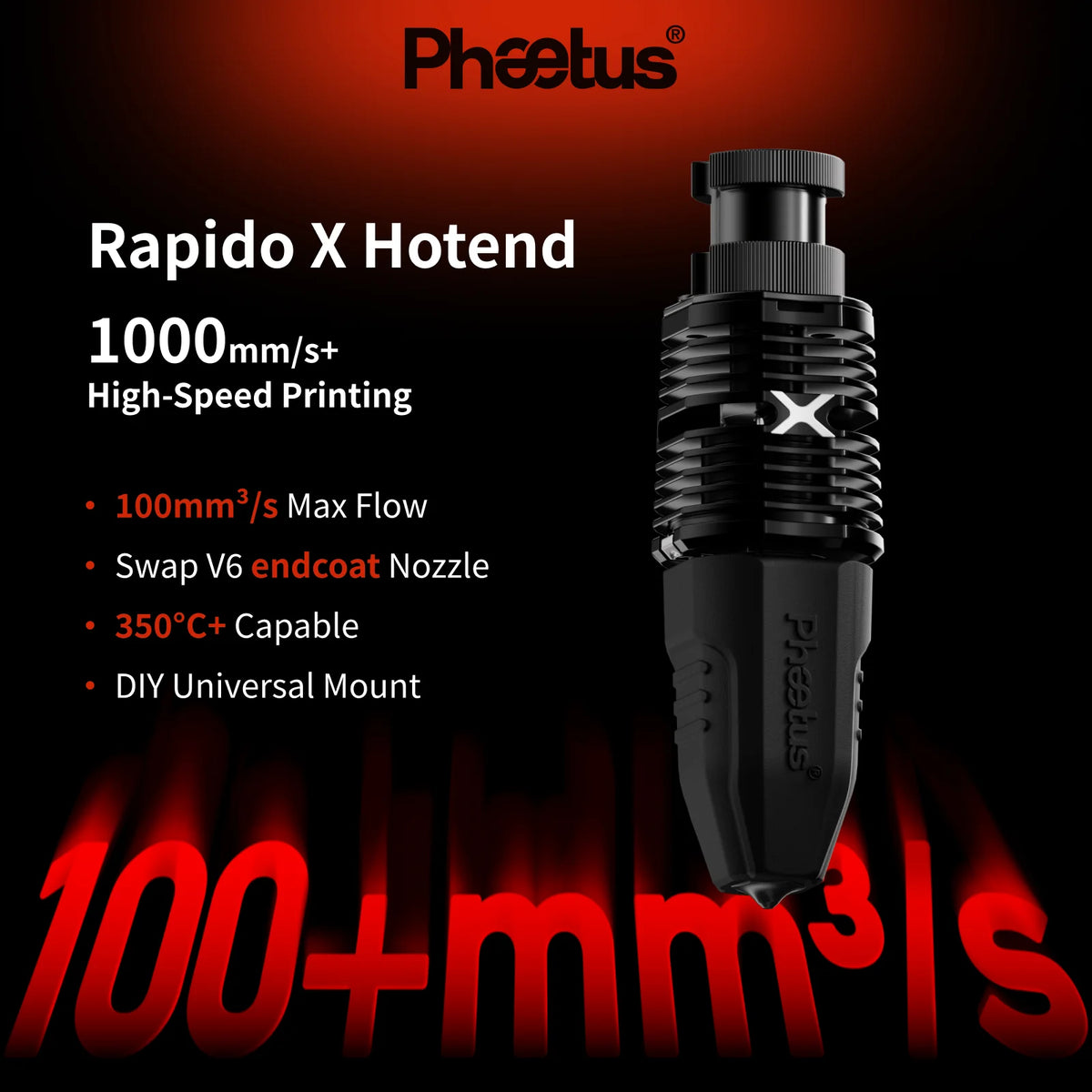

Push high-speed 3D printing further with the Phaetus Rapido X, a next-generation high-flow hotend built for extreme extrusion performance, engineering materials, and demanding DIY printer builds.
At the heart of the Rapido X is Phaetus's Liber™ High-Flow Module, designed to increase the filament's contact area with the melt zone for faster, more consistent melting. The result is a hotend capable of reaching up to 103 mm³/s maximum flow, with Phaetus specifying up to 65 mm³/s stable extrusion for sustained high-speed printing.
A powerful 24V 120W ceramic heater provides rapid heat-up performance, reaching approximately 200°C in 25 seconds and 300°C in 45 seconds. With a maximum operating temperature of 360°C, the Rapido X is equally at home printing everyday materials like PLA, PETG, ABS, and TPU or demanding engineering filaments including nylon, PC, PA-CF/GF, PEI, and PEEK.
Built for Serious Flow
The Rapido X's redesigned melt path and Liber™ technology improve thermal transfer into the filament, allowing significantly more material to be melted without simply making the hotend excessively long. Phaetus rates the Rapido X for printing speeds of up to 1300 mm/s, provided the rest of the printer is capable of supporting those speeds.
Its optimized thermal isolation and cooling architecture also help reduce heat creep during sustained high-flow printing, maintaining a more defined separation between the hot and cold zones.
EndCoat® Gen 2 Wear-Resistant Nozzles
Rapido X includes Phaetus's EndCoat® Gen 2 coated hardened-steel nozzles, designed for improved wear resistance when printing abrasive materials such as carbon-fiber and glass-fiber composites.
The hotend uses a standard M6 / V6-style nozzle interface, giving builders considerably more flexibility when choosing replacement or specialty nozzles. Rapido X includes both 0.4 mm and 0.5 mm EndCoat nozzles.
Designed for DIY Printers
Rapido X is designed with custom printers and high-performance DIY machines in mind, featuring multiple mounting points and a detachable nozzle interface for easier integration.
Important: Rapido X uses a new mounting design and is not directly mounting-compatible with previous Rapido or Rapido 2 hotends. Builders upgrading an existing machine should verify their toolhead or mount supports the Rapido X before ordering.
Key Features
-
Up to 103 mm³/s maximum flow
-
Up to 65 mm³/s stable extrusion
-
Phaetus Liber™ ultra-high-flow melt technology
-
Rated for printing speeds up to 1300 mm/s
-
Powerful 24V 120W ceramic heater
-
Maximum operating temperature up to 360°C
-
PT1000 temperature sensor
-
EndCoat® Gen 2 hardened-steel nozzle technology
-
Includes 0.4 mm and 0.5 mm nozzles
-
Standard M6 / V6-style nozzle compatibility
-
Copper-alloy, nickel-plated heater block
-
Stainless-steel EndCoat heatbreak
-
Optimized thermal isolation to reduce heat creep
-
Suitable for abrasive carbon- and glass-fiber materials
-
Designed for high-speed DIY and performance 3D printers
Specifications
Maximum Flow Rate: 103 mm³/s
Heating Power: 120W
Temperature Sensor: PT1000
Maximum Operating Temperature: 360°C
Heatbreak: Stainless Steel with EndCoat coating
Heater Block: Nickel-Plated Copper Alloy
Nozzle Type: M6 / V6-Style
Included Nozzles: 0.4 mm and 0.5 mm EndCoat Hardened Steel
Silicone Sock Temperature Resistance: 320°C
Dimensions: Ø24 × 79.2 mm
Weight: 153 g
Whether you're building a high-speed Voron, developing a custom motion platform, or simply want significantly more melt capacity from your printer, the Phaetus Rapido X is built to deliver serious flow without sacrificing the precision expected from a performance hotend.
