Beschreibung
This filament is highly abrasive, we strongly recommend printing with Tungsten Carbide Nozzle like the Undertaker

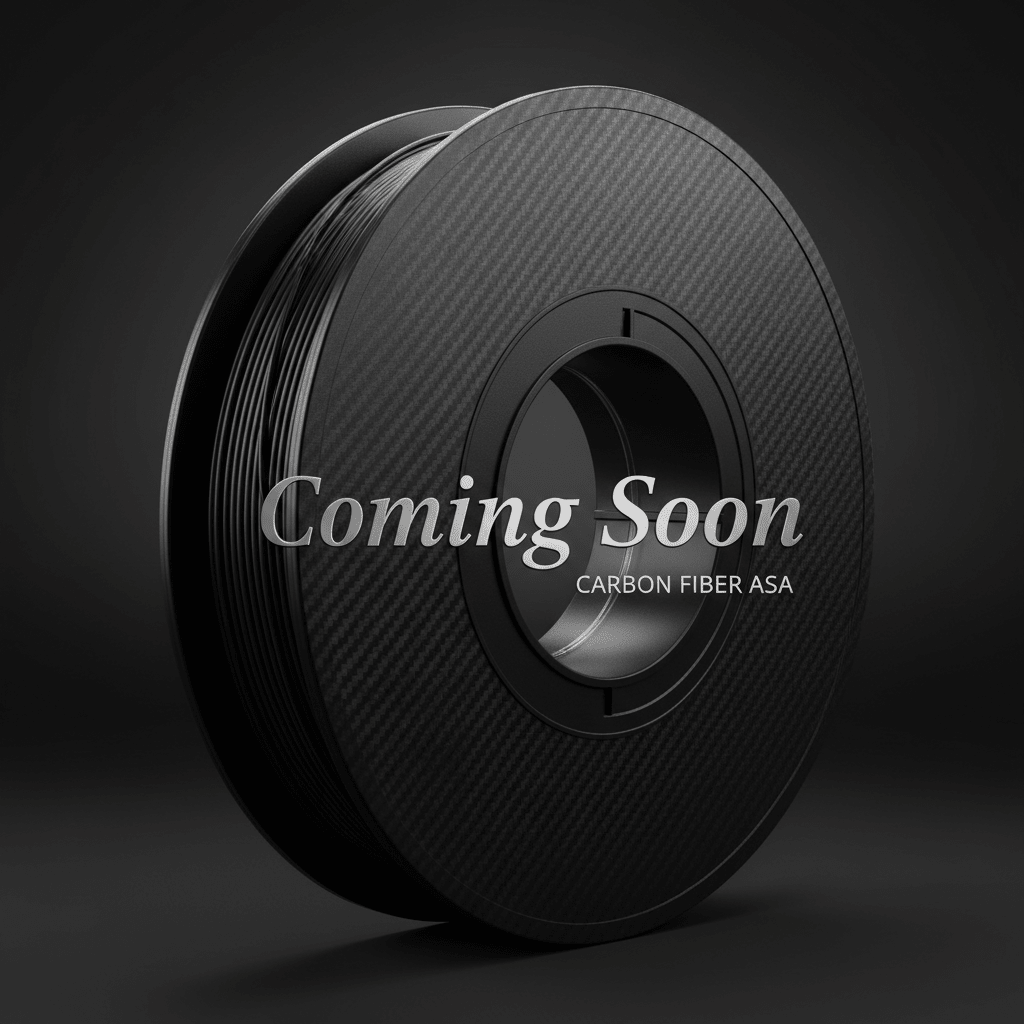

Ambrosia Filament's line of ASA-CF filament is derived from 100% Virgin Grade-A Non-Toxic pellets and long chopped Carbon Fiber. Manufactured to a tighter than standard tolerance (+/- 0.03mm) you'll experience consistent extrusion throughout the spool. Free of additives, this filament prints like butter.
Due to the nature of Carbon Fiber infused filaments, colors created with CF infill are dark and we are unable to produce bright / neon or fluorescent variants.
Feed your Printer the Filament of the Gods.
ASA is the natural successor to ABS and is great for both mechanical, functional or decorative parts. It prints well, with less warping than some other filaments, however it is highly encouraged to use an enclosure. A heated bed is required.ASA filament has high strength, impact and weather resistance (including UV), and can withstand higher temperatures than many common filaments (e.g. PLA/PETG).
Adding chopped Carbon Fiber to ASA increases its stiffness, being both more rigid and offering excellent layer adhesion. Carbon Fiber is both stronger than metal, lighter than plastic, and is heat resistant.
- Arrives to you in a cardboard box, with filament wound in a cardboard spool, vacuum sealed with a desiccant bag.
- Derived from 100% Virgin (Grade-A) non-toxic pellets
- Chopped Carbon Fiber Strands
- Diameter: 1.75mm (+/-0.03mm)
- Filament Net Weight: 1KG
- Spool Weight:
The glue holding the filament spool together is rated for an environment of 70C (158F). If using a filament dryer or require the filament spool by placed in an environment exceeding this temperature, we recommend printing a spool clip (Here).
Check out our other lines of Ambrosia Filament!
| ASA | ASA-CF | ASA Sparkle | ASA Dolos | ABS+ | PETG | PLA |
| PC-ABS | PC-CF | TPU | ABS Matte | ASA-GF |
Ambrosia Filament's Recommended Print Settings for our ASA filament:
| Attribute | Accepted Value(s) [Our Recommended Value] |
| Extruder Temperature | 250-280 Degrees Celsius [270] |
| Heated Bed | 100-120 Degrees Celsius [110] |
| Build Surface | PEI, Buildtak, or similar surface [Textured PEI] |
| Cooling Fan | 0-70% range varies by cooling capabilities |
| Environmental Temperatures | 40-120C [45C] |
| Soluble Support Materials | HIPS |
Technical Specifications for our ASA-CF Filament:
| Physical Properties | Test Methodology | Values |
| Density | ISO1183 | 1.09-1.10 g/cm^3 |
| Melt Flow Rate (250C/2.16KG) | ISO 1133 | 4-7 g/10min |
| Mechanical Properties | Test Methodology | Values |
| Tensile Strength | ISO 527 | 39-42 Mpa |
| Elongation at break | ISO 527 | 15.5-17.5% |
| Flexural Modulus | ISO 527 | 850-900 Mpa |
| Flexural Strength | ISO 178 | 80-82.5 Mpa |
| Impact Strength | ISO 180 | 10.5-12 KJ/m^2 |
| Thermal Dynamic Properties | Test Methodology | Values |
| HDT@ 0.455 MPa(66 psi) | ISO 75 | 88C |
Filament can absorb moisture easily. To prevent moisture absorption and contamination, the packing of filament should be kept sealed and in an airtight container with desiccant.
