BTT 60V Octopus PRO Controller Board / 3D Printer Control System
BTT 60V Octopus PRO Controller Board / 3D Printer Control System
BTT 60V Octopus PRO Controller Board / 3D Printer Control System
Roll over image to zoom in Click on image to zoom
BTT 60V Octopus PRO Controller Board / 3D Printer Control System - West3D Printing - BTTBTT 60V Octopus PRO Controller Board / 3D Printer Control System - West3D Printing - BTTBTT 60V Octopus PRO Controller Board / 3D Printer Control System - West3D Printing - BTTBTT 60V Octopus PRO Controller Board / 3D Printer Control SystemBTT 60V Octopus PRO Controller Board / 3D Printer Control SystemBTT 60V Octopus PRO Controller Board / 3D Printer Control System

BTT 60V Octopus PRO Controller Board / 3D Printer Control System

BTTSKU: BTT0527
Variant: H723
Price:
$69.99

Customer Reviews

Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Devin
Flexible controller for every situation

I purchased this board for my first build and it was so excellent that I purchased a second. I use it in a 48V setup and it's got more than enough outputs for everything I need. The flexibility of being able to choose your voltage for steppers is a more flexible option than some other boards like the Kraken. This board exceeded my expectations.

A
Asher Edwards
Best all around board

I got this as a gift and used this in my Zero G mercury 1 build, and it is outstanding. Love the flexibility for 48volt steppers, 8 steppers, and all sorts of sensors over usb or CAN.

M
Mark Albenesius
does the job

using in my trident. no issues so far. easy setup for my first build

12

Description

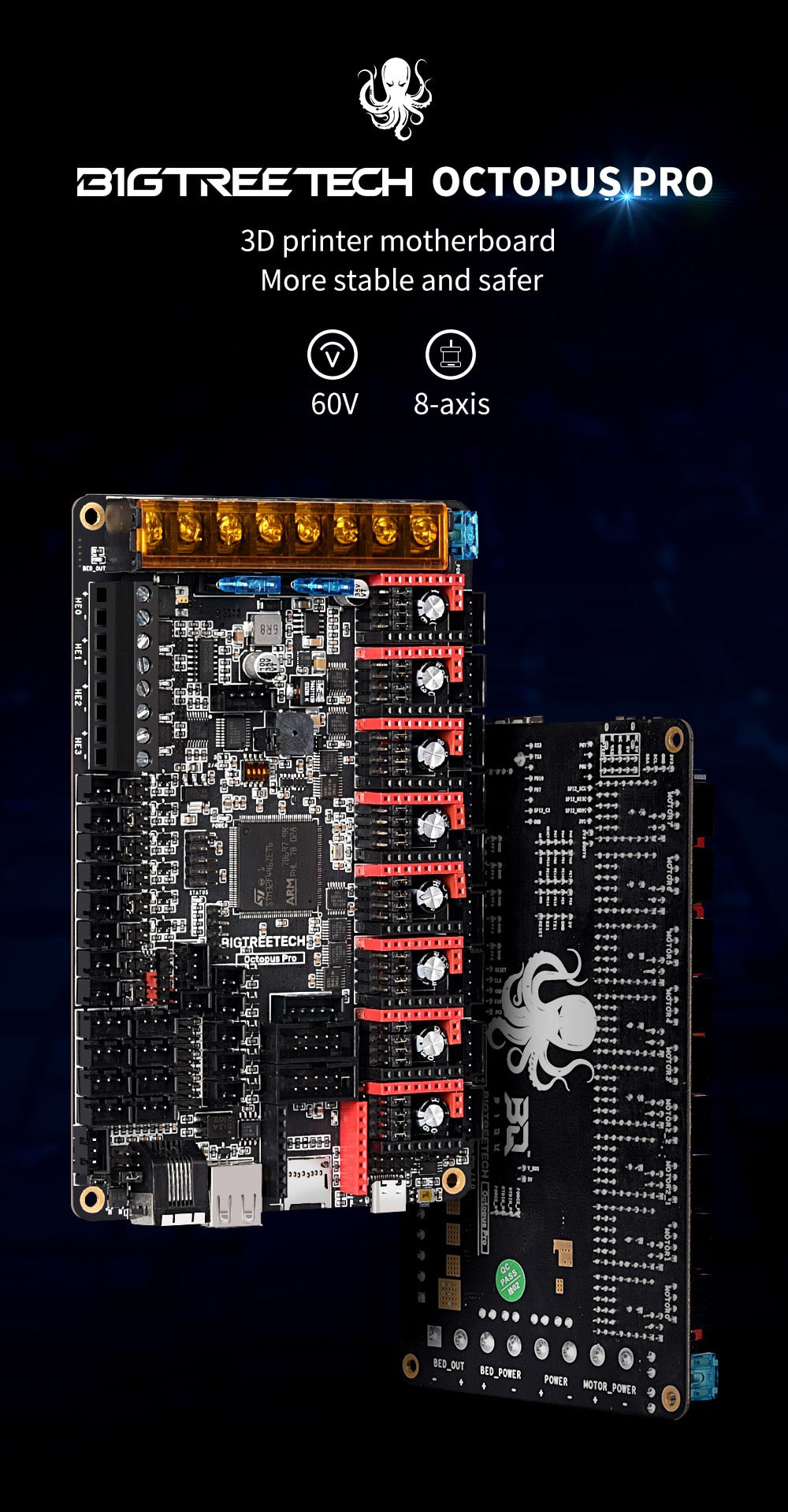

This is one sweet board, so sweet we carry two versions of it. The Octopus Pro has been boosted to 60V! Perfect for an all out, or future proof build.

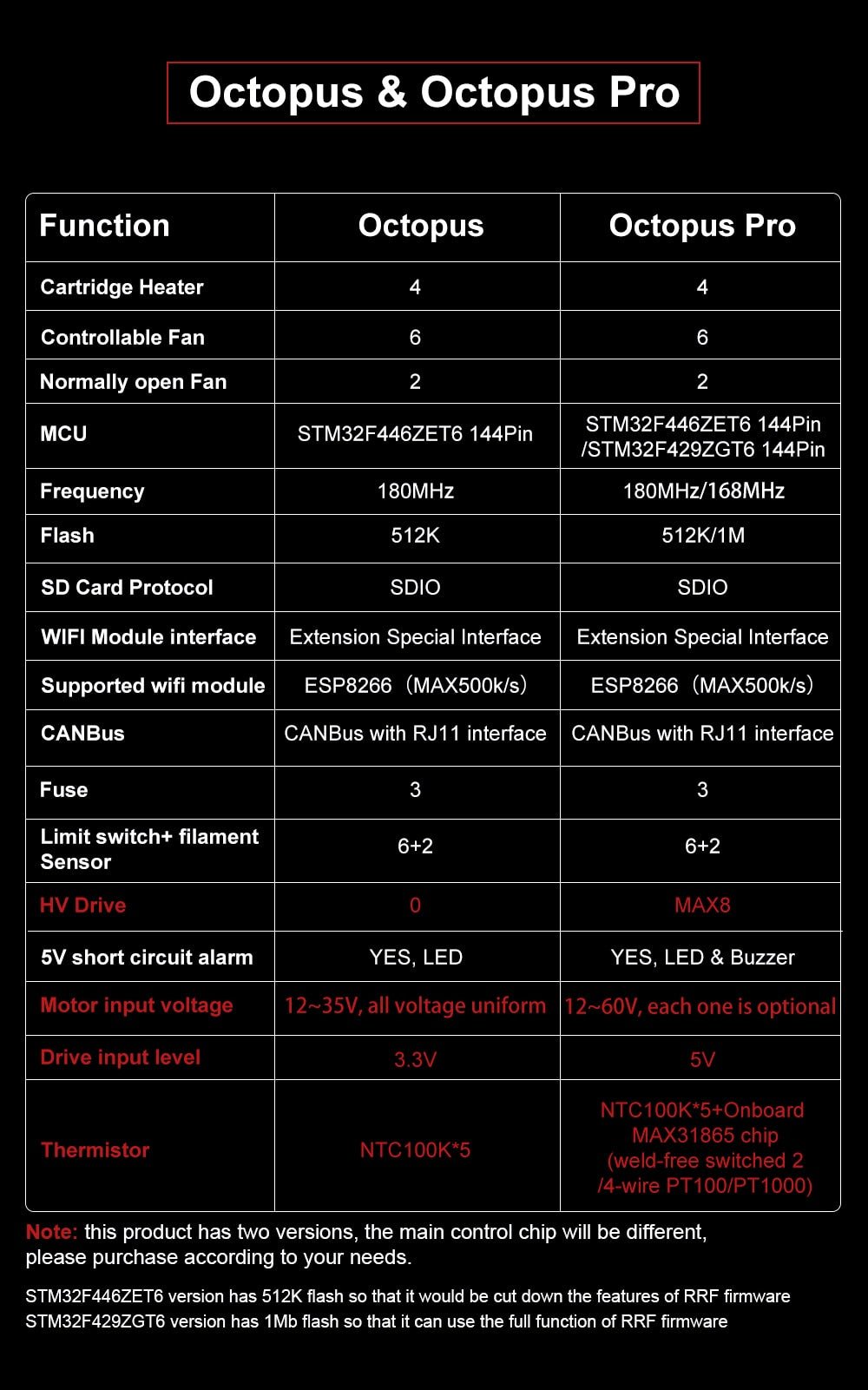

The key difference between the 446 and the 429 variant is the 429 has an upgraded board (SMT32F429ZGT6) with 1M memory vs 512K with the 446.

From BTT:

  • Product Size: 160x100mm

  • Mounting Size: 150x90mm

  • Input Voltage: DC15-28V

  • Motor Input Voltage: 12~60V, each one is optional

  • Driver Input Level: 5V

  • Support Wifi Module: ESP8266 (MAX500k/s)

  • HV Drive: MAX8

  • Driver Working Model: UART, SPI, STEP/DIR

  • File Format: G-code

  • Thermistor: NTC 100K*5+Onboard MAX31865 chip (weld-free switched 2/4-wire PT100/PT1000)

  • Expanded Interface: Broken material detection, power failure, power off, BLTouch, etc.

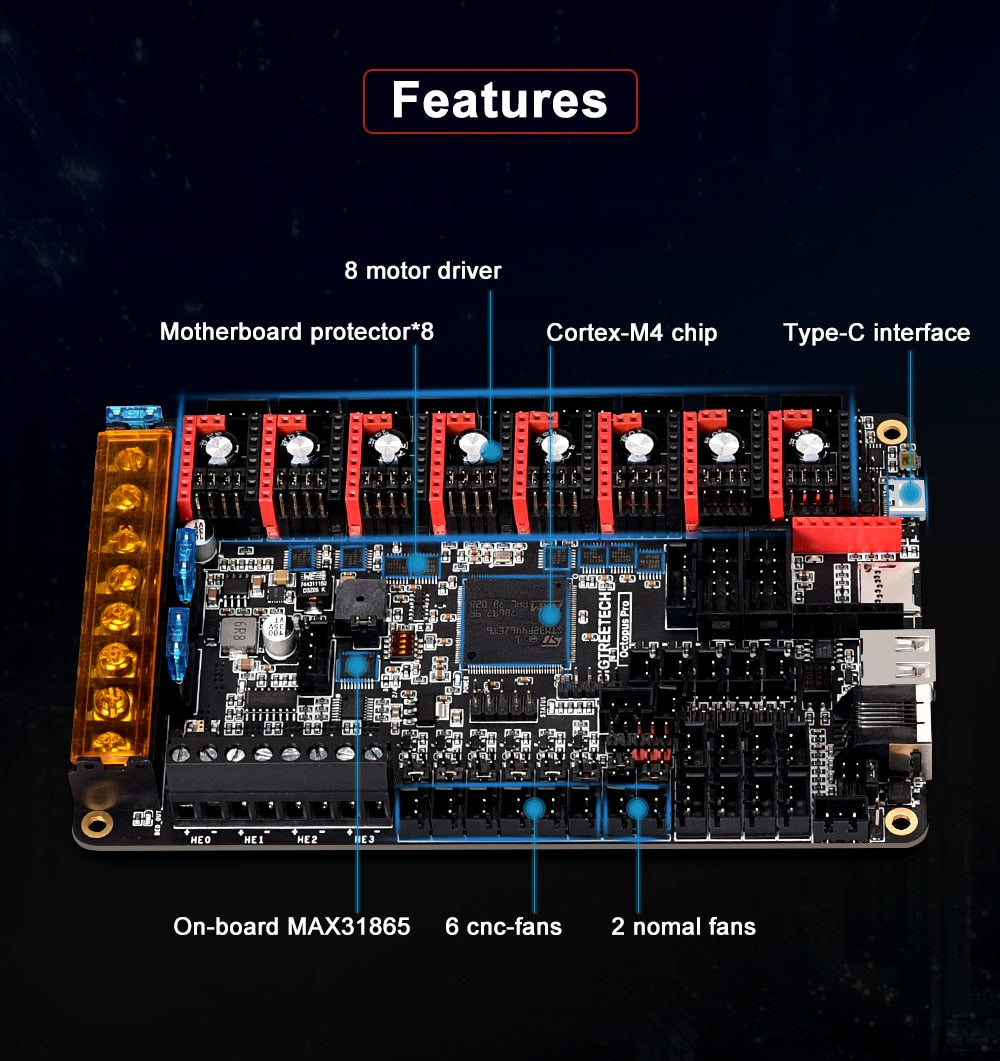

  • Motherboard protector level conversion chip.

  • On-board MAX31865.

  • Main control chip: ARM Cortex-M4 series.

  • 6 CNC fans and 2 normal fans.

  • Type C interface for online printing

  • Support Firmware: Marlin, Kilpper, RepRap

Additional information can be found on GitHub, including the User guide: https://github.com/bigtreetech/BIGTREETECH-OCTOPUS-Pro
