LDO-42STH40-1684L300E / ET / LDO42STH40-1684CL350ET / LDO42STH40-400ET with upgraded Teflon Coated Lead Screw TR8X4 Voron Edition NEMA 17

LDO MotorsSKU: LDO0383
Style: Non-Coated (Standard) - 300E (300mm Length 250mm Z)
Price:
$34.99

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
AWKom
Fantastic Integrated Leadscrew Motors!

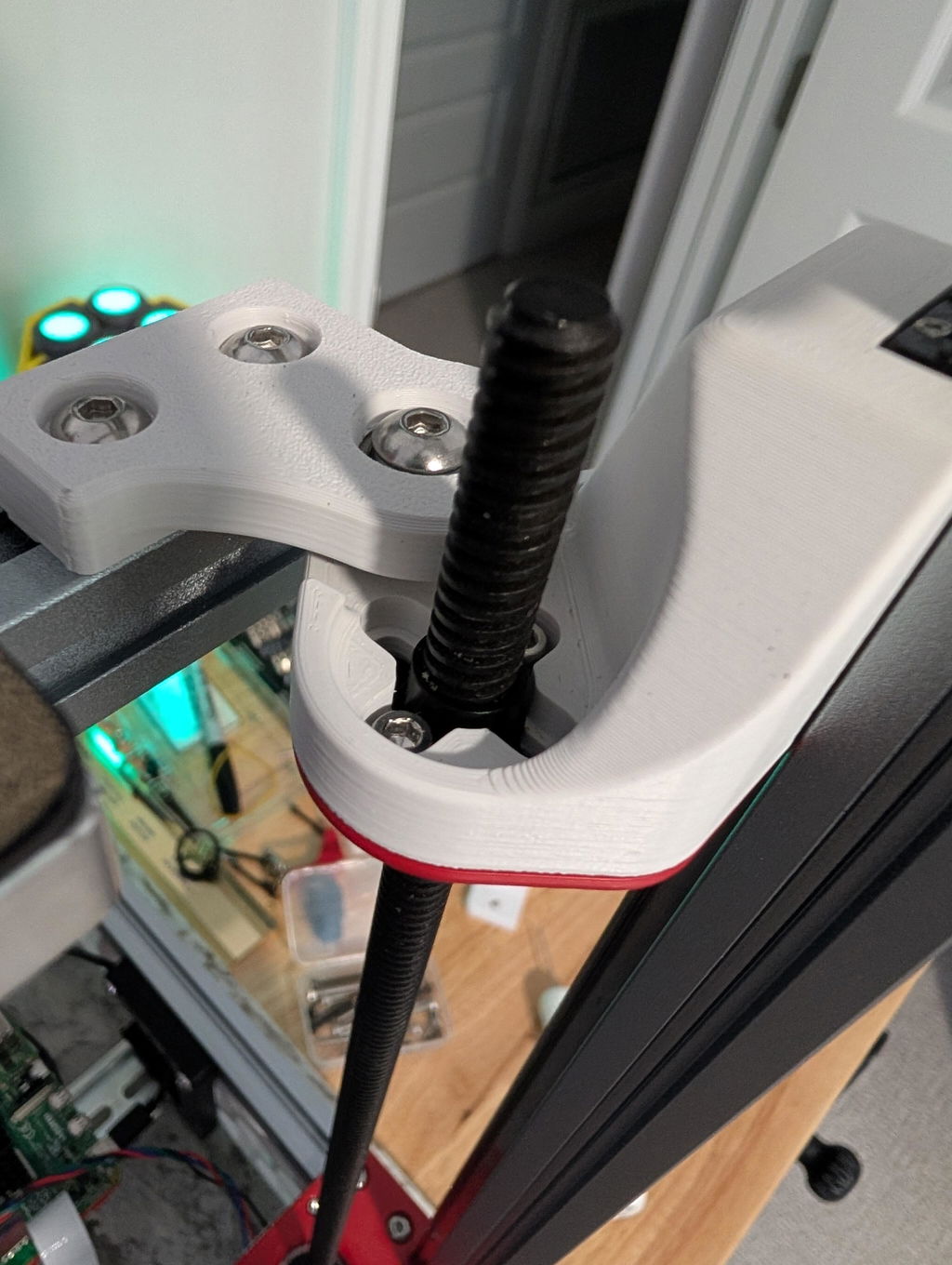

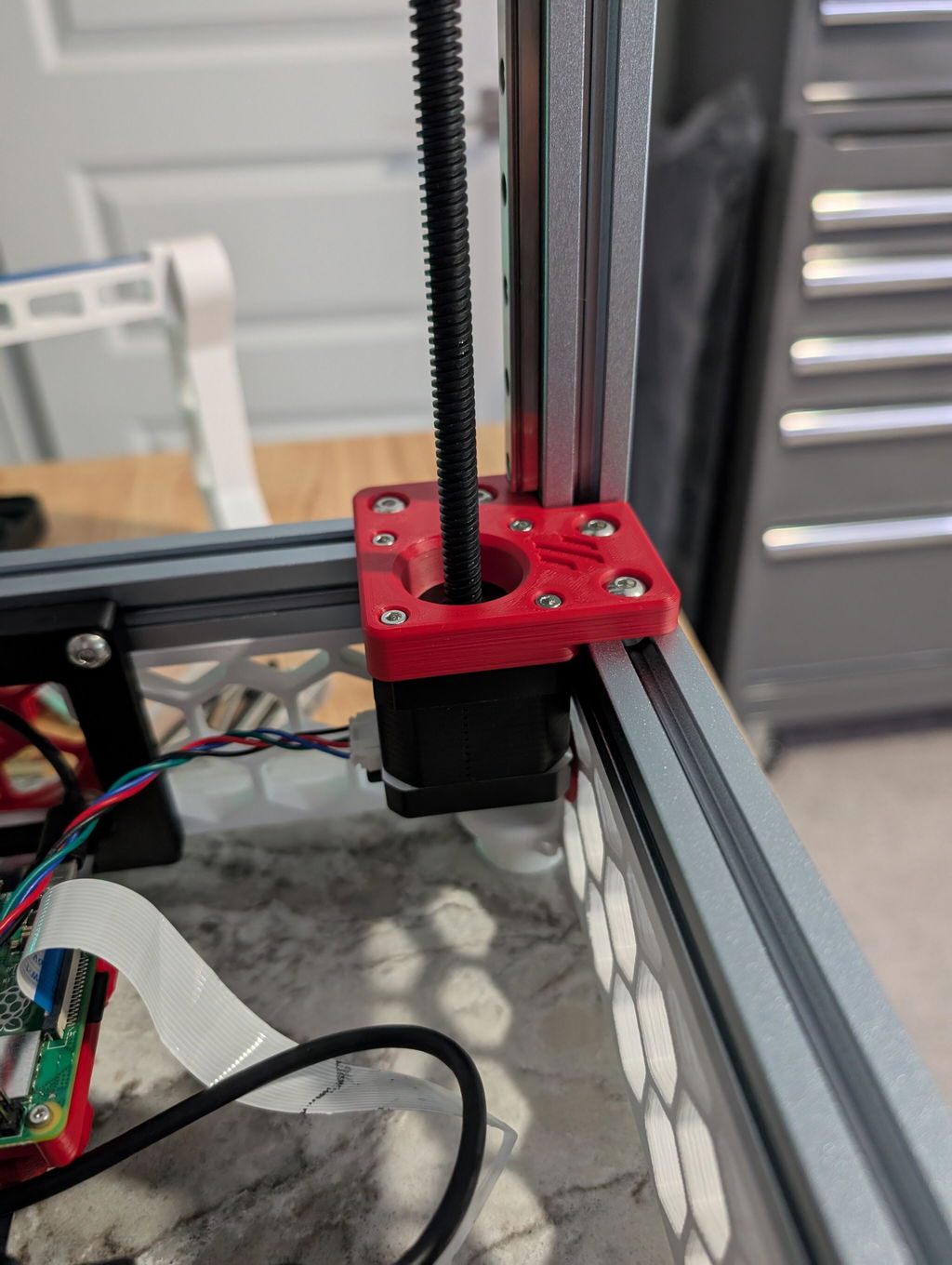

These motors from LDO are just fantastic motors. I used them to replace some cheap Stepperonline ones I had originally while I was chasing some issues during my Trident build. The quality difference was apparent in both the smoothness of the motors and the straightness of the leadscrew. I think these must be the best motors you can buy for a Trident. Another thing I didn't appreciate fully until they were installed is not needing to apply lubrication to them. I can't tell you how many times I brushed my arm against the grease of my old motors and this completely solves that. I truly don't think there's a better motor out there for a Trident than this one, I highly recommend to anyone!

User picture User picture
S
Stephane Lebeau
Great motors for my new build!

There was originally a shipping error where I received one motor with a shorter leadscrew, but thankfully West3D sent me the replacement motor very quickly. First time using leadscrew motors with POM nuts. They seem to be very quiet so far.

n
n.m.

Perfect

12

Description

This your LDO Z Motor for your Voron V1 (Trident, etc.) with a 300mm output shaft and a TR8X4 nut.

Specs:

NEMA 17 1.8 degree step angle, 200 Steps, 1.68A, 450mN-m holding torque, 40mm body with a 300mm / 350mm or 400mm output shaft and TR8x4 nut.

We carry these in three variants, standard (see picture) and Teflon coated, the Teflon Coated motors will not need to be greased ever! The third variant is for the popular Trident "Cube" or a Trident with a 300mm Z-Height, this is also Teflon coated.

Note: The price included is for 1 unit, if you need 2 you need to add 2 to your cart.
