LDO Voron Tap Complete Kit 5v / 24v


Voltage: 24v (Works on both 5v and 24v)
Price:
Sale price$34.99

Customer Reviews

Based on 9 reviews
78%
(7)
22%
(2)
0%
(0)
0%
(0)
0%
(0)
S
Smolz
Complete and what I needed

Had all the parts, clearly labeled. What more could I ask for?

b
bvaughan
Works a treat

Coming from a delta with similar technology, having the probe and z endstop being both the same mechanism and measured by the nozzle really simplifies things. No offsets. No routines to move off the print surface to hit a special spot. No docking/undocking. No issues with different nozzles.

Doesn't damage powder coated or softer "sticker" style surfaces.

M
Matt Graham
Great Kit

No complaints, West3D support was "tap" notch.

Description

Because of demand of this kit, we will be carrying multiple versions - this is LDOs version.

It's here, Voron Tap - complete PCB with optical sensor pre soldered, rail w/ carriage and hardware. Printed parts can be found here.

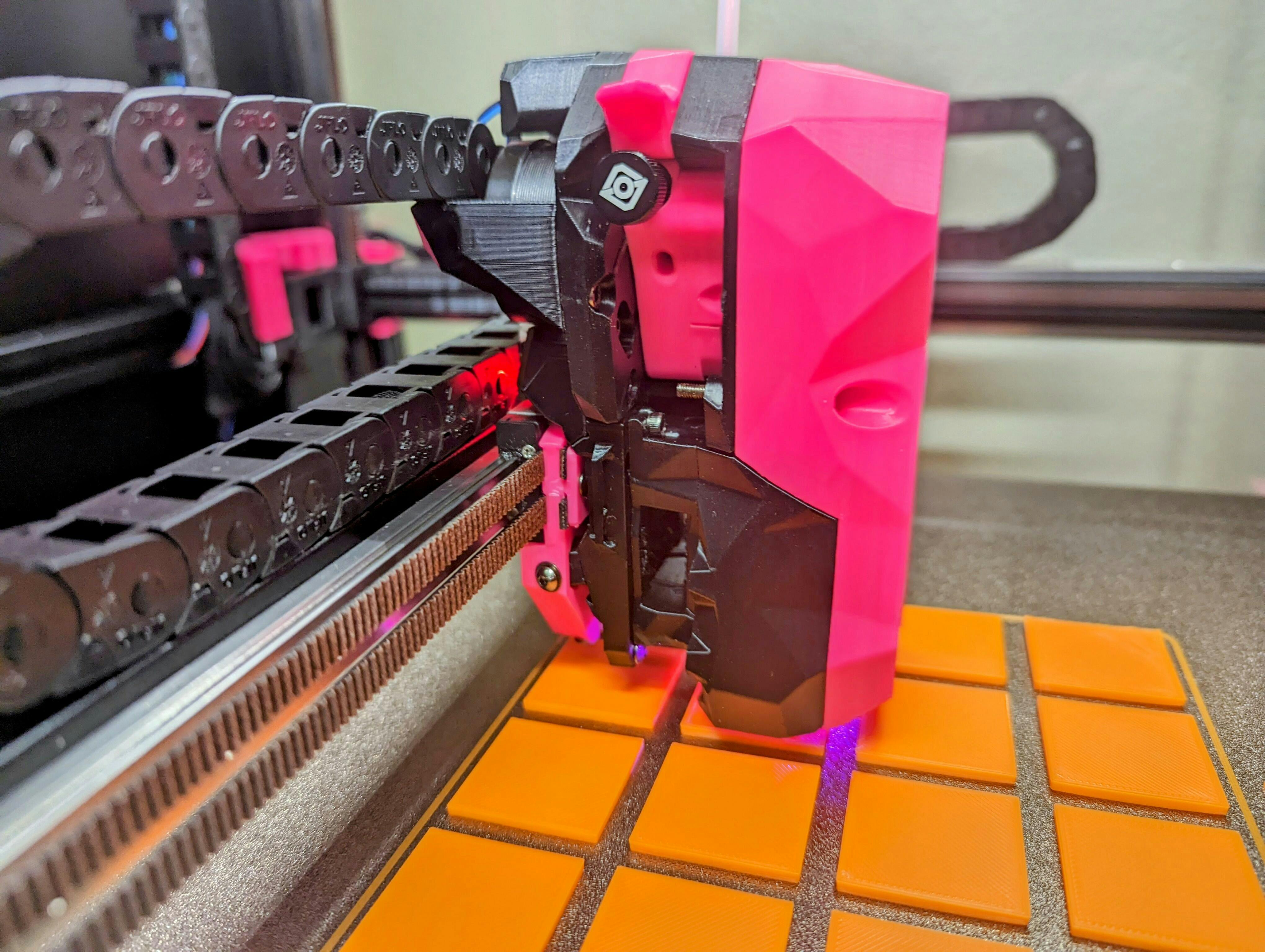

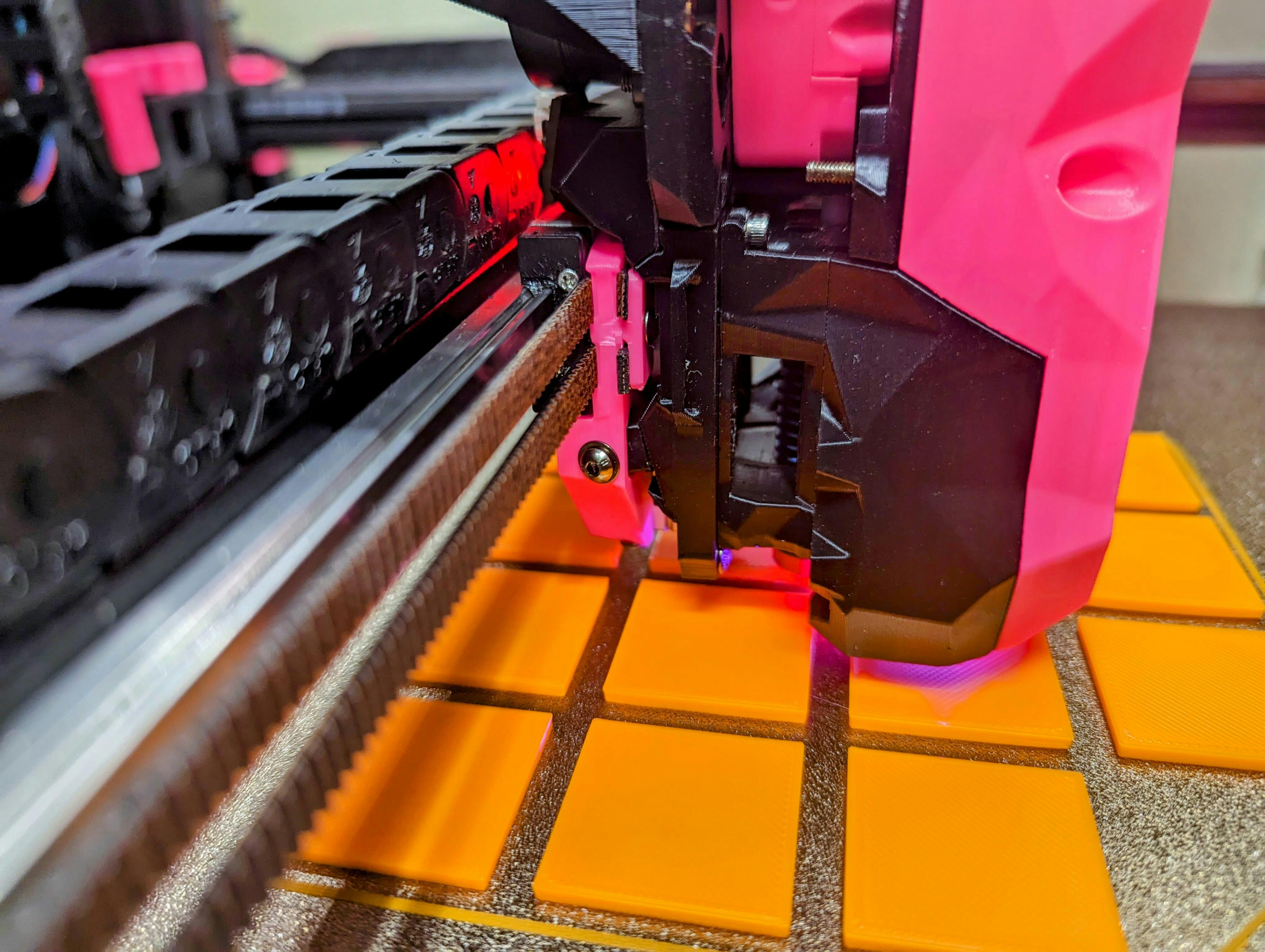

Tap is a drop in replacement for the X carriage which includes a nozzle probe mechanism. For Voron Trident and V2 Printers.

Kit RevA contains:

  • Tap photosensor V2.4.1 (OPB971N51, 5-24V)
  • Linear Rail stainless steel SLR9H-1R-50Z1-E5
  • Hardware Kit
  • 1 x M3 hex nut
  • 6 × M3 washers
  • 2 × M3x20 SHCS
  • 2 × M3x16 SHCS
  • 1 × M3x12 SHCS
  • 3 × M3x8 SHCS
  • 2 × M3x10 BHCS
  • 1 × M3x6 SHCS
  • 2 × M3x6 FHCS black oxide fully magnetic screws
  • 10 × M3x6 BHCS
  • 11 × Heatset inserts
  • 2 × 6x3mm N35 Magnets
