LDO Positron Kit V3.2 Compact Printer DIY Kit by Positron3D

LDO SystemsSKU: LDO1948

Price:
Sale price$699.00

Customer Reviews

Based on 4 reviews
75%
(3)
0%
(0)
0%
(0)
25%
(1)
0%
(0)
A
Andrew Bradley

Super fun kit to build! Prints very well and I love showing it off whenever I can! Positron team and LDO support are awesome as well!

C
Chris Fullwood
I really wanted to love it

I have been using my Positron v3.2 for a while. I really want to like it. It has a great build and the quality of the LDO parts is outstanding. It prints nice and works great with Orca Slicer without much tuning. I really like the size and how it can fold down, but I just don't love it. There are just little things that bother me about it. The leveling is one. Every time you store it you have to re-level it. I just find that to be tedious and annoying. I really don't like the extruder and I would prefer if this had direct extrusion but I understand that would be difficult because of the footprint. There is no filament latch on the extruder so you have to use the load and unload macros. Other planetary systems like the Galileo allow you to be able to remove the filament without having to use the load and unload macros. Sure you can just rip it out if you disable the motors but not the best. I also am not a big fan of printing on glass. I'm probably going to sell it and just stick with my Vorons. My 0.2 never has to be leveled and prints exceptionally.

L
Luke Ingerman
Complete Kit with Plenty of Spare Parts!

The Positron Kit is another example of a complete, functional, 3d printer kit with even more spare parts and screws! The kit build was easy to follow and the part quality was amazing. The number of spare screws cannot be overstated which is great as there are many different types of smaller screws. This really helps when you drop things and they bounce off the workbench. I only encountered two issues with my kit (a failed 5015 part cooling fan, and a leaking heartbreak). Both issues were noted by the Positron team during my Twitch Live Streams and we actively resolved both issues.

Description

Need Printed Parts? We have them here.

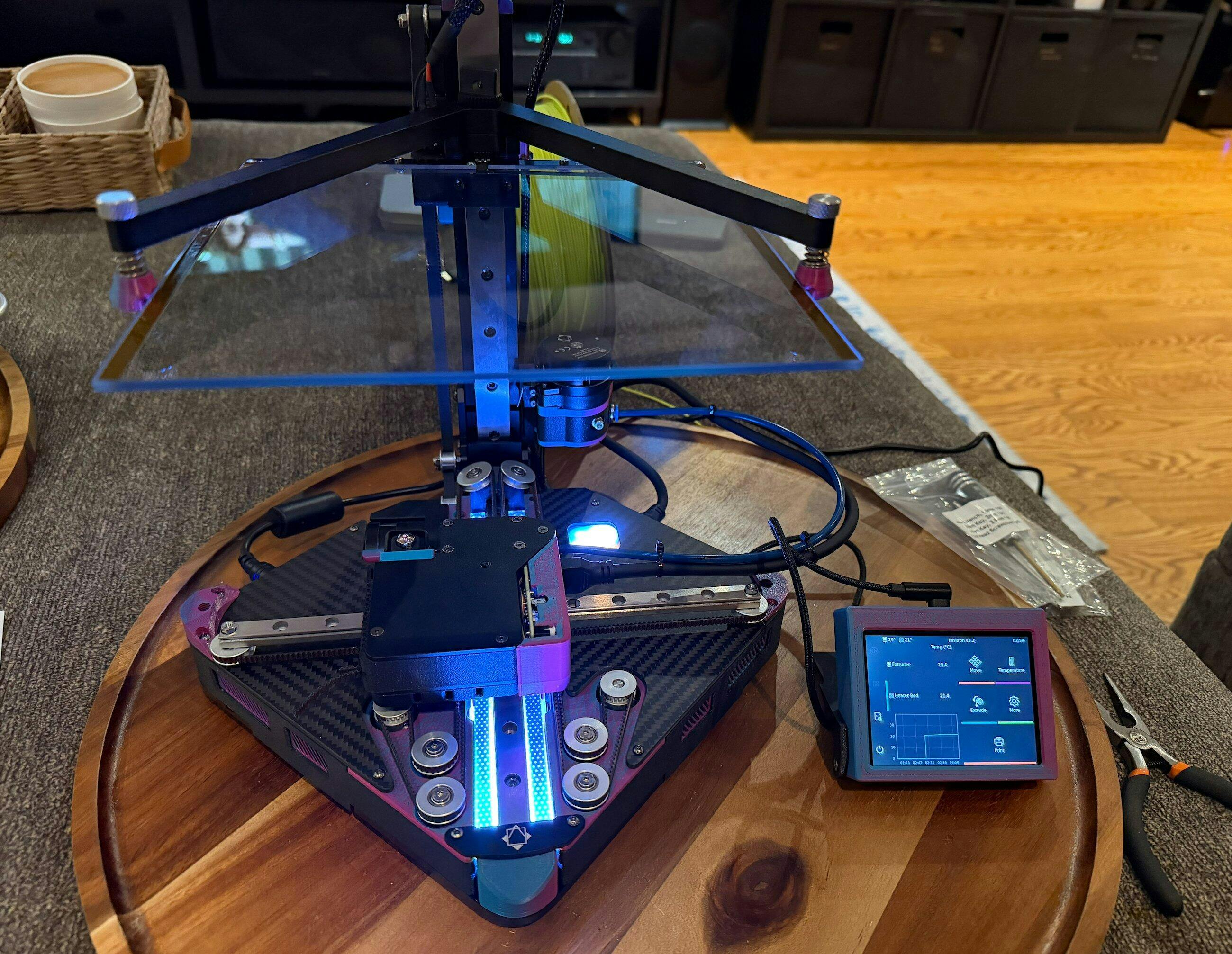

This is a super compact, foldable, printer that takes minute to set up once built and seconds more to take down. In this small package it still boasts a 180x180x170 build volume! Let's print different.

This is provided as a DIY kit, you will have to assemble as well as provide your own 3D printed parts. If you need parts printed for you we can provide the service, just let us know! (product listing for printed parts is pending)

Introducing The Positron: The Ultimate Portable 3D Printer

The Positron is a compact, foldable 3D printer designed for those who need printing on the go—whether you're in the office, at a job site, or traveling the world.

Innovative Design:

  • Compact and Portable: The Positron fits into a standard filament box and features a clever kinematics system that maximizes its 180mm³ build volume while printing upside down.
  • Quick Deployment: Go from folded to ready to print in just about a minute.

Travel-Friendly:

  • Airport-Ready: The Positron has passed through major U.S. airports without issue when TSA guidelines were followed. Travel with peace of mind, but be sure to adhere to specific checkpoint instructions.
  • Low Power Consumption: Runs on a 24 Volt, 200 Watt power supply, making it ideal for printing on the move—on a boat, in a van, or even on a cruise ship.

Customization and Connectivity:

  • Expandable Main Board: Add a Filament Runout Sensor, integrated PSU, extra cooling, and more to tailor The Positron to your needs.
  • Connectivity Options: For loading prints via Wi-Fi, Ethernet, or mass storage, regardless of how busy the venue is, you can always rely on USB and Ethernet connectivity!
  • We Use Klipper!: Using Klipper, this printer is your own! Customize the macros to make it do whatever it is you want, we made sure that all of the RGB lights are fully adressable.



Join the Community:

Explore more about The Positron and join the Wiki and Discord at https://positron3d.com/. Share your projects, learn from others, and collaborate to push the limits of 3D printing.

Get Started Today!

Enjoy the freedom and versatility The Positron offers. Have fun, and let's print different!



Build Volume

180*180*170mm

Product Dimensions

200x200x70mm (Folded )                                                                                    200x200x270mm (Unfolded)



Net Weight

3Kg Approx.

Weight with Pelican Case

5.5Kg Approx.

Supported Filament

PLA, PETG

Filament Diameter

1.75mm

Printing Speed

400mm/s

Acceleration

8000mm/s2

Nozzle Diameter

V6 type 0.4mm

Hotend Max Temperature

260

Build Surface

Glass Bed

Heatbed Max Temperature

80

Levelling Mode

Manual

Display Screen

3.5” LCD Capacitive Touch Screen

Power Supply

Desktop 24V 200W

Slicing Software

Superslicer, OrcaSlicer etc.,

Firmware

Klipper

Raspberry Pi

CM4

Controller Board

Customized LDO Positron Mainboard



LDO Positron Assembly Guide: https://www.ldomotion.com/p/assembly/Positron-V32

LDO Positron Printed Parts Link: https://github.com/Positron3D/Positron/tree/main/Printed%20Parts
