Voron X/Y Microswitch Endstop PCB Assembled
Voron X/Y Microswitch Endstop PCB Assembled
Voron X/Y Microswitch Endstop PCB Assembled
Roll over image to zoom in Click on image to zoom
Voron X/Y Microswitch Endstop PCB AssembledVoron X/Y Microswitch Endstop PCB AssembledVoron X/Y Microswitch Endstop PCB Assembled

Voron X/Y Microswitch Endstop PCB Assembled

NASKU: FY0002304
Price:
$6.49

Customer Reviews

Based on 4 reviews
75%
(3)
0%
(0)
0%
(0)
0%
(0)
25%
(1)
N
Nicholas Piercy
Bad Batch?

Not sure if I got a bad batch or something, but the board I received is junk. The y-endstop ground was bonded with the trigger wire through the board somewhere so it would never trigger. Wasted more than an hour of my time with it before chucking it in the bin.

T
Timothy

Received it quickly and is also a quality product.

R
R.A.

Good quality, purchased as a backup

12

Description

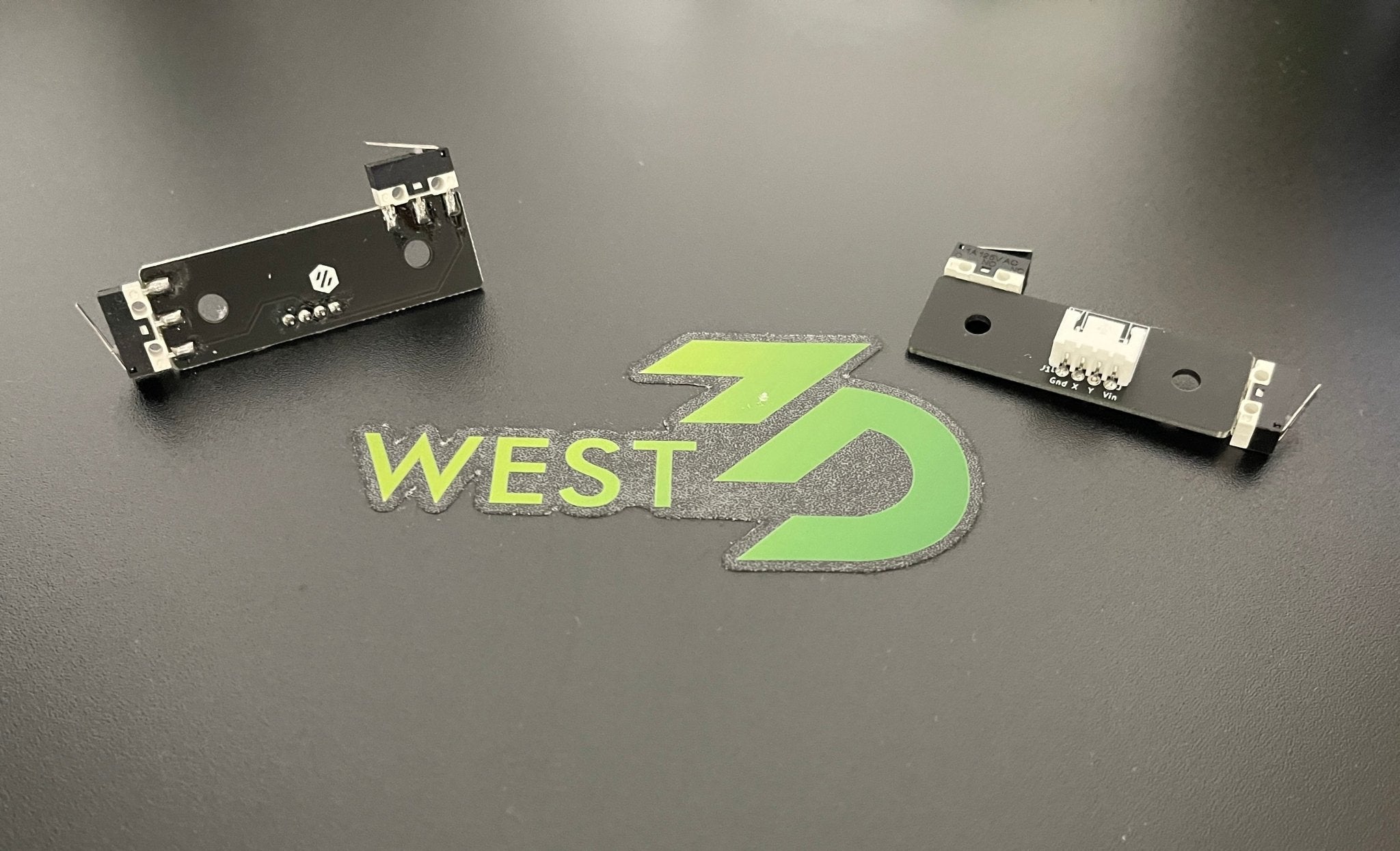

Comes complete and assembled (minus the printed parts).

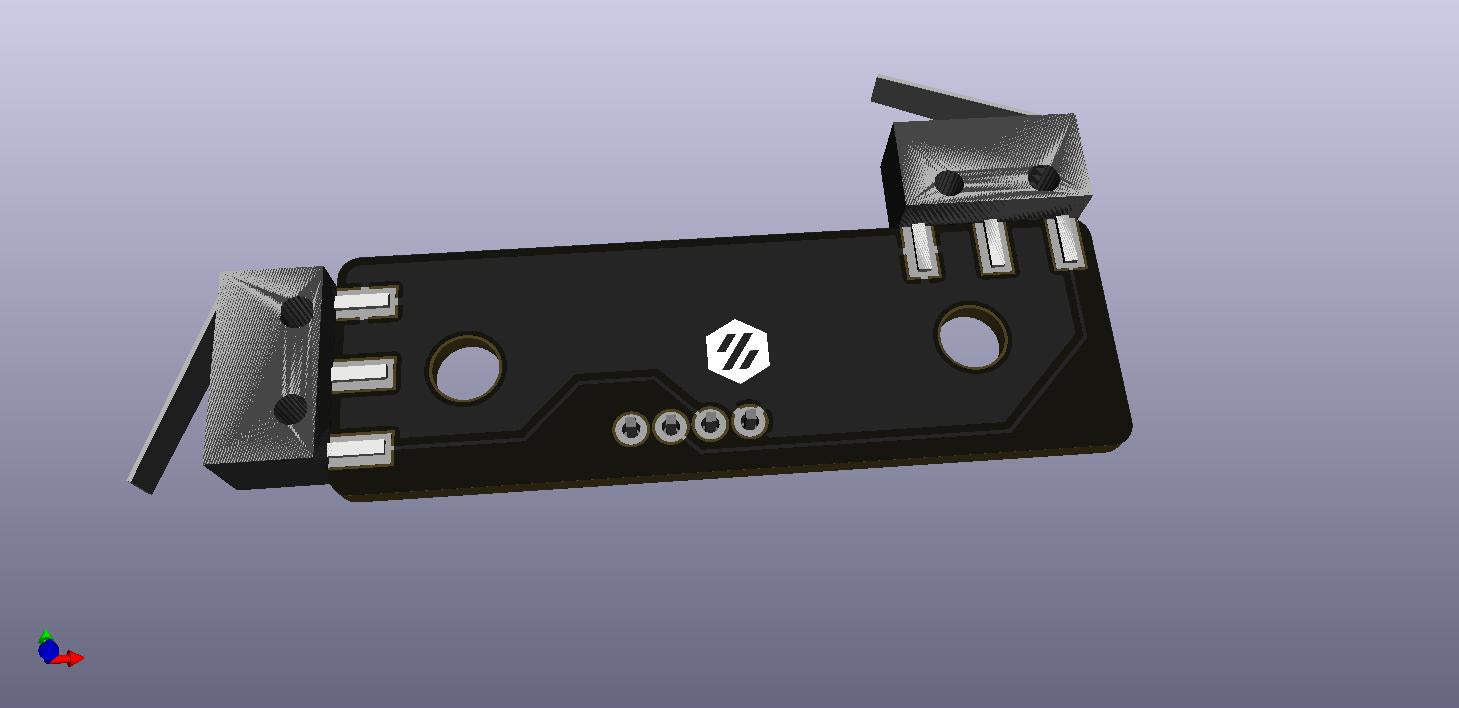

Microswitch endstop board for X and Y axes with Omron D2F-L switches and a JST pin connector. It is wire compatible with the hall effect board. The VIN pin is not used. If you have no intention of switching to the hall effect board, you can run 3 wires instead of 4 as it shares a common ground.

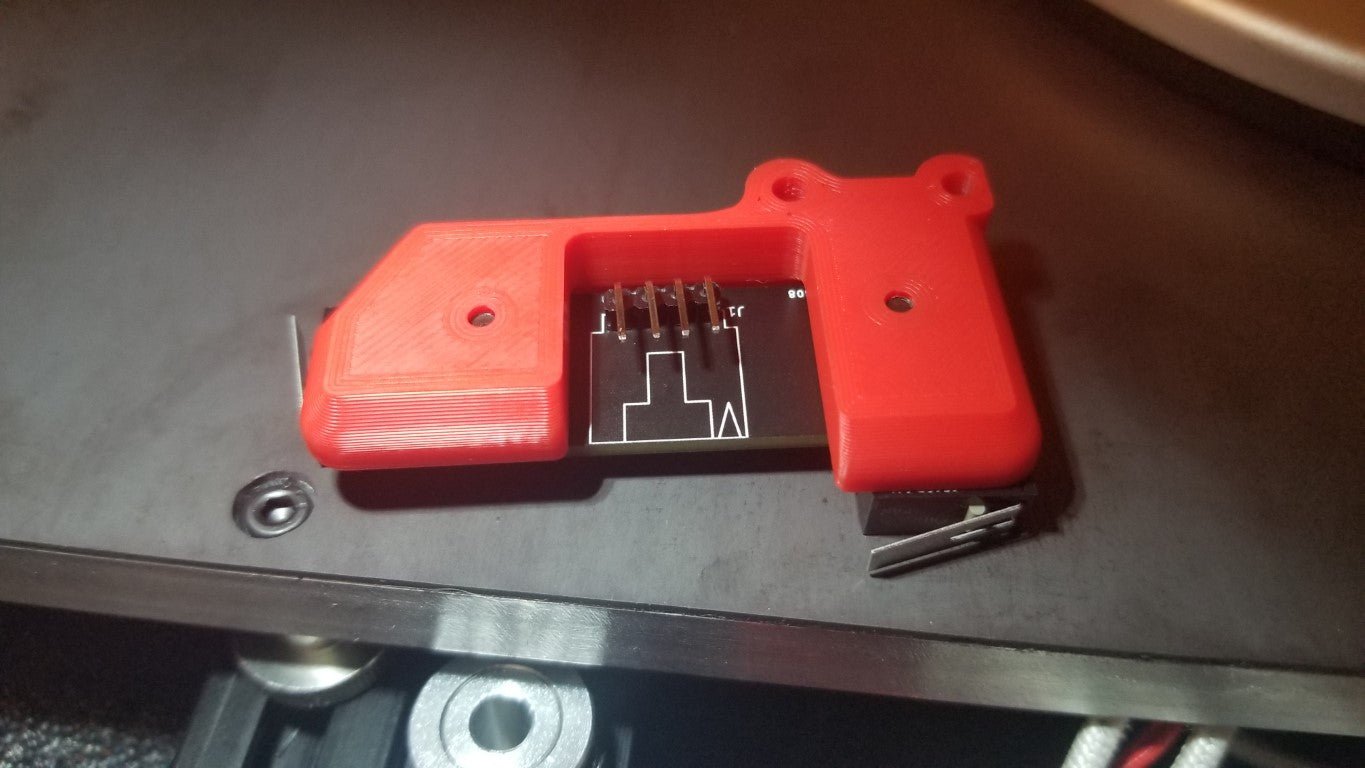

You will need a different stl for the pod. Check Microswitch_Endstop POD for the microswitch pcb pod.

Technical Information can be found here.
