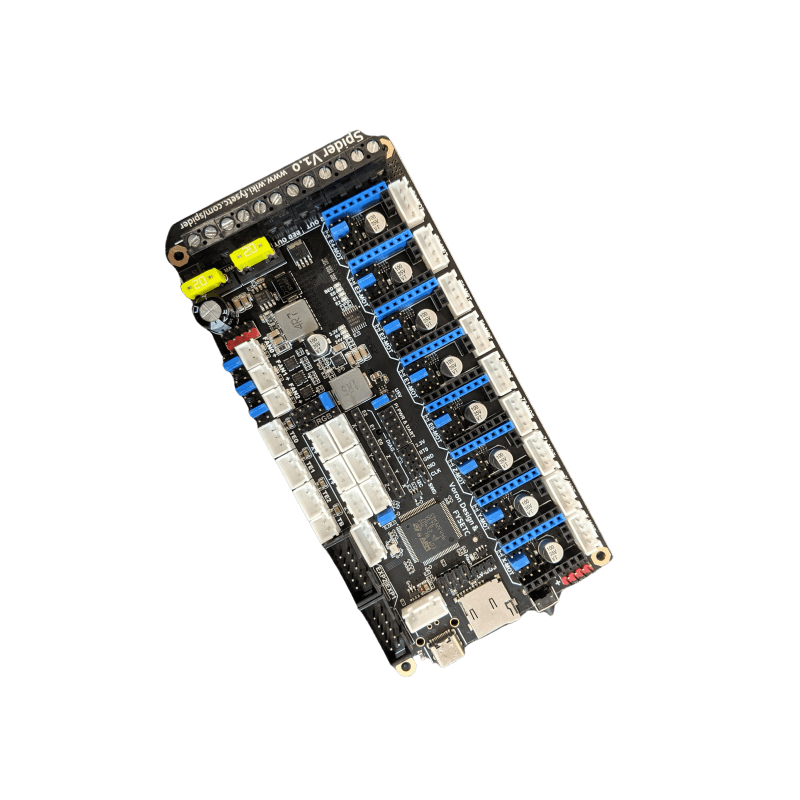

FYSETC Spider Motherboard 32Bit Controller Board

FYSETCSKU: FY0002002

Title: Board Only
Preis:
Sonderpreis€46,95

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Robert Batten
Works well

I recevied the v3.0 board. There's major differences in connector placement and the documentation for this is only available through Fysetc's github repository. Once I found that, things went well - issues with v2 fans is fixed in v3 and I had no issues getting the system working well.

S
Scott
Nice controller

Visually well made with clean traces. Like all Fysetc products, documentation is a little lean, especially for the newer items like the Spider 3.0 I purchased

Beschreibung

The Spider V3.0 board is a full-featured and excellent controller board, with space for EIGHT TMC stepper drivers, the ability to connect a Raspberry Pi directly to the board either through USB or through UART. Recommended for Voron 3D Printers and others.

This board has add-on options, please review prior to purchase.

Please see note at end of description for important information about this board!

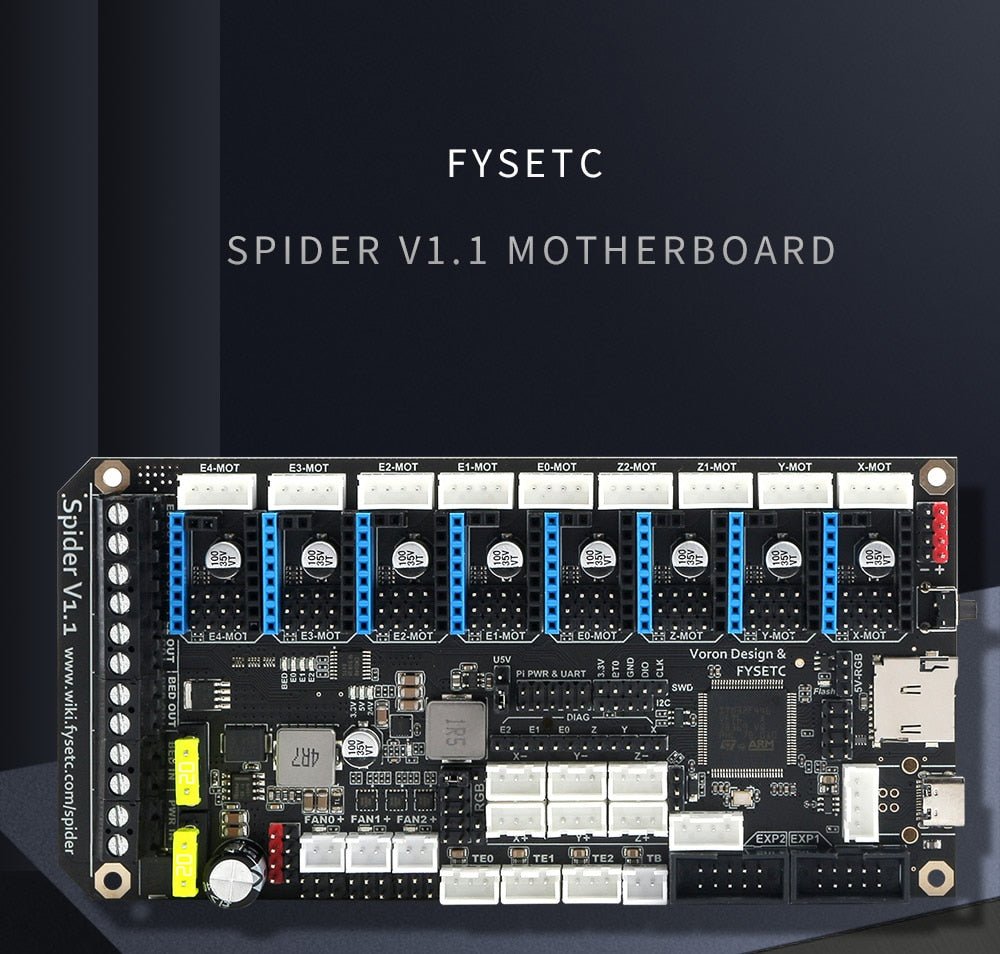

    2. Features

    • Compact size: 155.3mm x 76.5mm

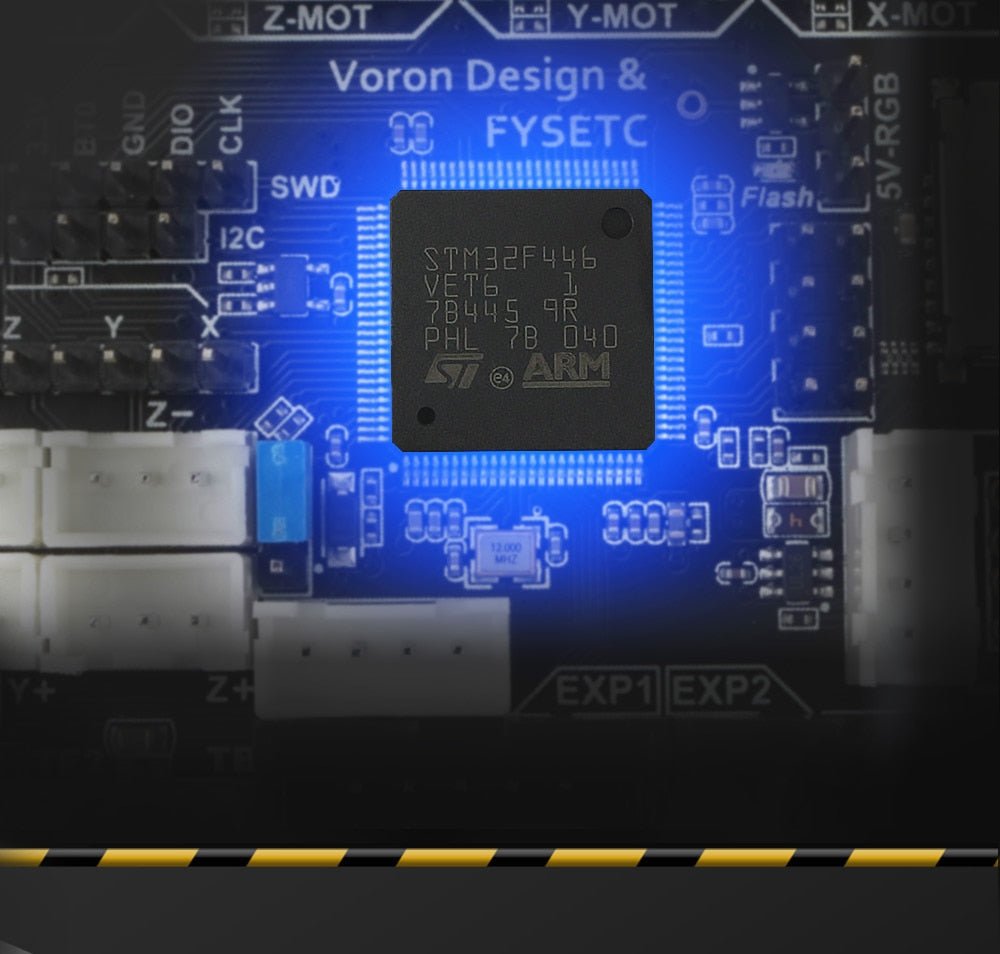

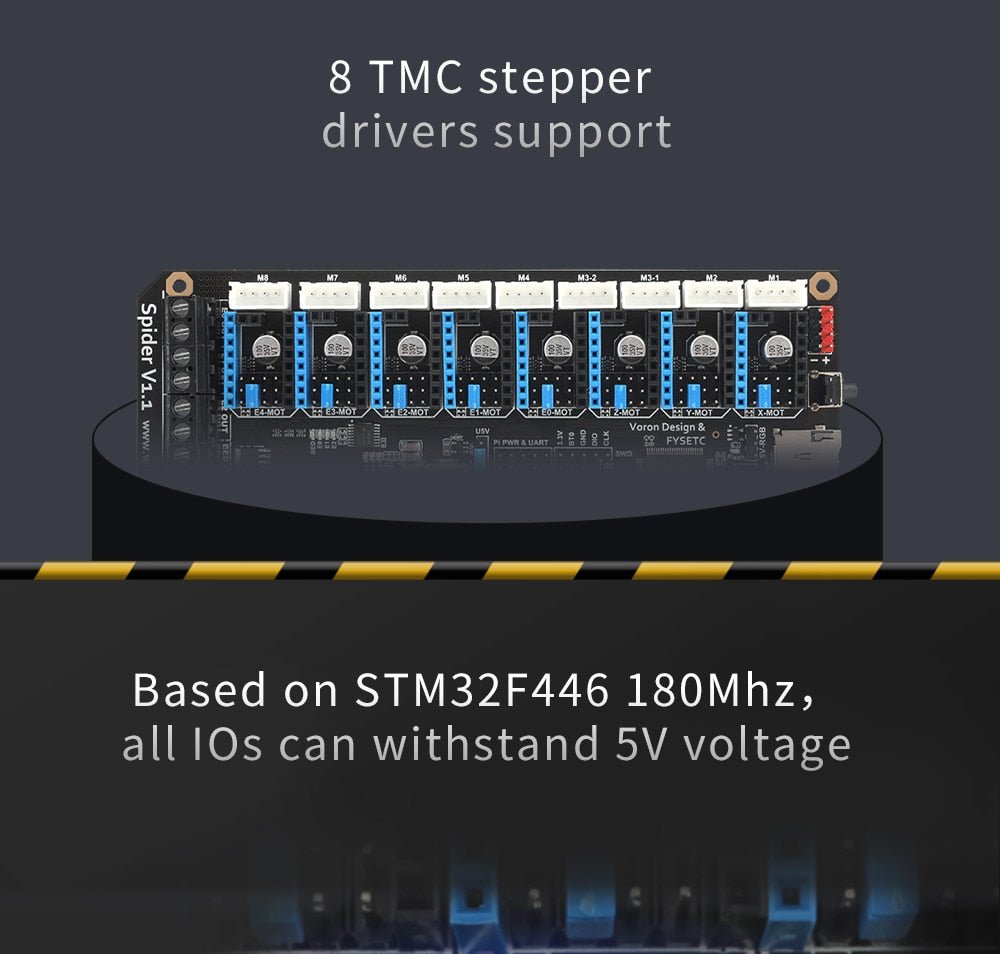

    • Based on STM32F446 180Mhz,all IOs can withstand 5V voltage
    • 8 TMC stepper drivers support, with Uart&SPI support
    • V2.2:Add Two 60V-Max stepper driver slot
    • Improved TMC jumper settings again,simpler and easier
    • V1.0&V1.1: 28V input max,12V@5A DC-DC,5V@8A DC-DC (Especially for Raspberry Pi)3.3V@0.8A LDO
    • V2.2: 28V input max,12V@3A DC-DC,5V@5A DC-DC for Raspberry,5V@3A DC-DC for mcu and RGB, Two 3.3V@0.8A LDO for MCU and motors
    • Two car fuses for hot bed input and main power input
    • Limit switch socket 24V/5V/3.3V optional, ready for more other equipment, such as -inductive sensor, BL-Touch
    • XH2.54 connectors
    • 10x PWM capable power mosfet outputs (1 for HotBed, 3 for Heat-End, 3 for fans, 3 for RGB LED strip)
    • V1.0&V1.1: 3pin temperature header, you can use thermistor or thermocouple (requires AD597 module)
    • V2.2: Up to 6 temperature sensors support
    • Up to 8 ways PWM fans (only use 1 extrueder and no 12V/24V RGB used ),2 ways RGB led(12V & 24V optional) ,1 way 5V-RGB led (NEO-PIXEL/WS2812)

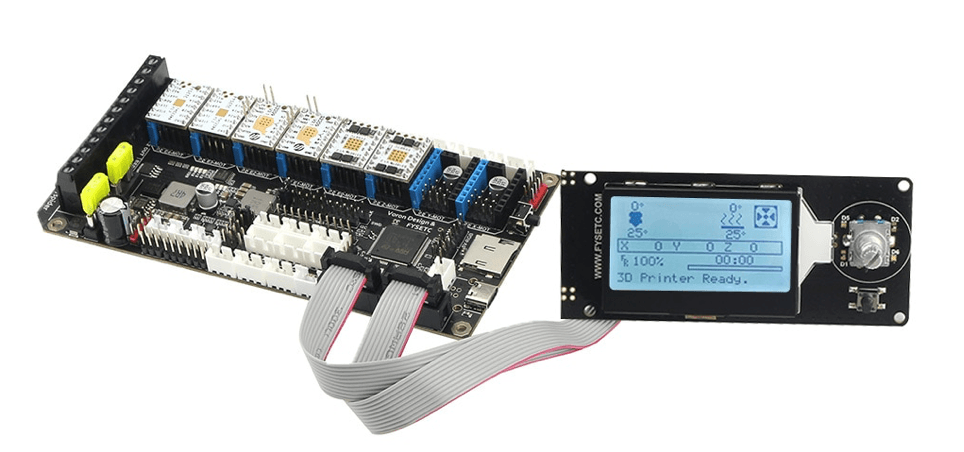

    • RepRapDiscount SmartController compatible pin header on board
    • UART1-Raspberry Pi pin header (including 5V@8A power supply)
    • 2X4 PinHeader Out for SD Card moudle
    • Onboard micro-SD card

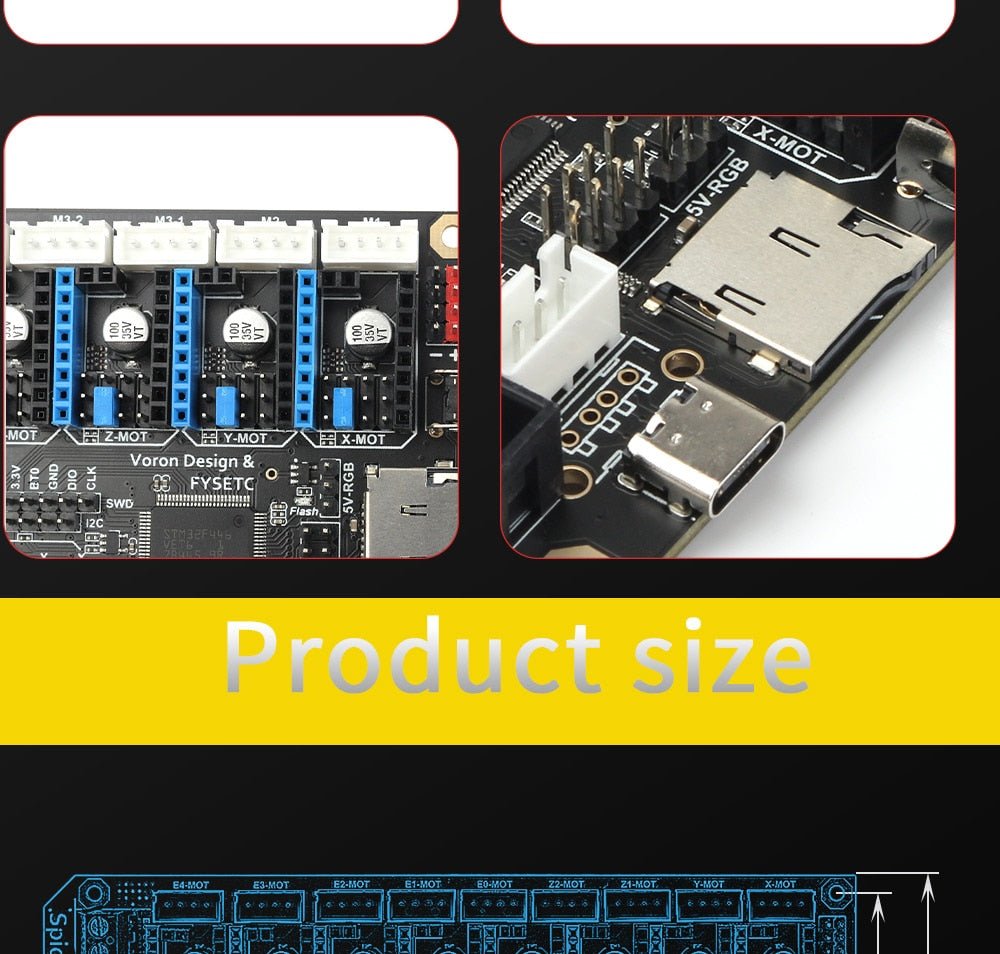

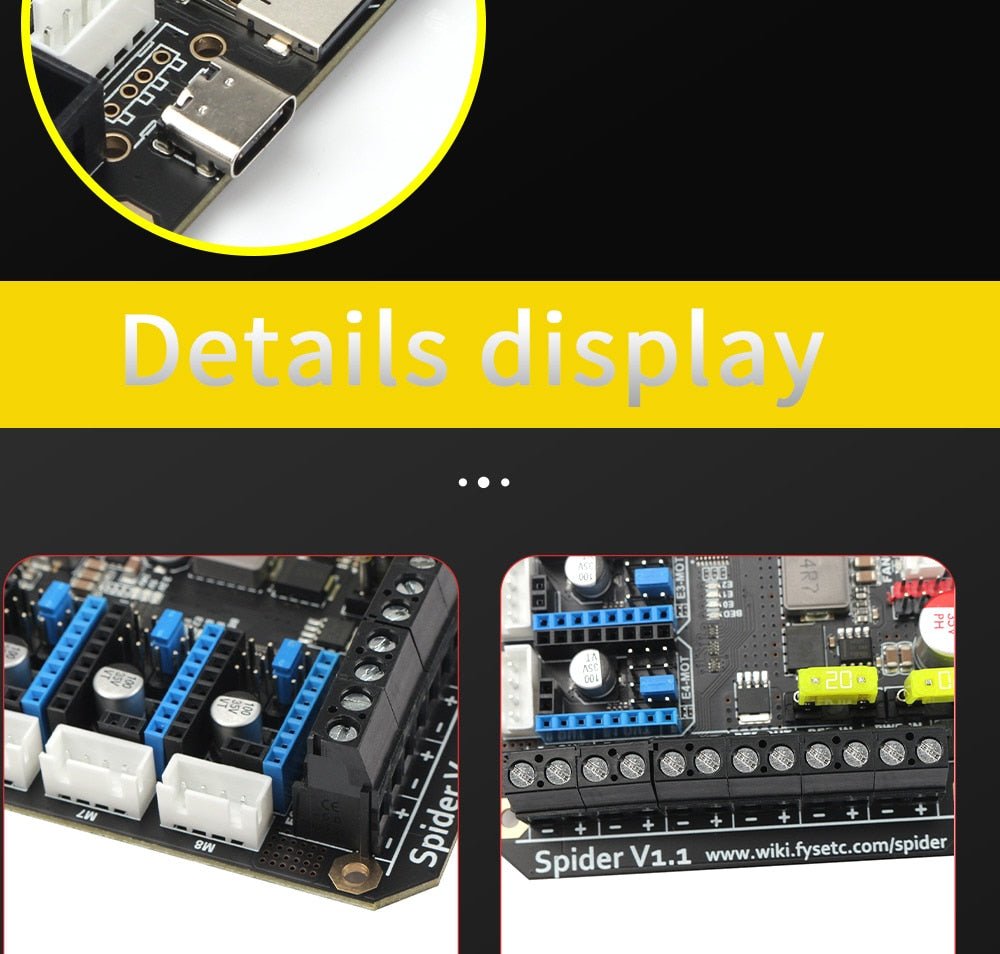

    • Type-C and Type-B USB connector optional
    • EXP1 & EXP2 have more multiplexing functions, such as USART, I2C, CAN

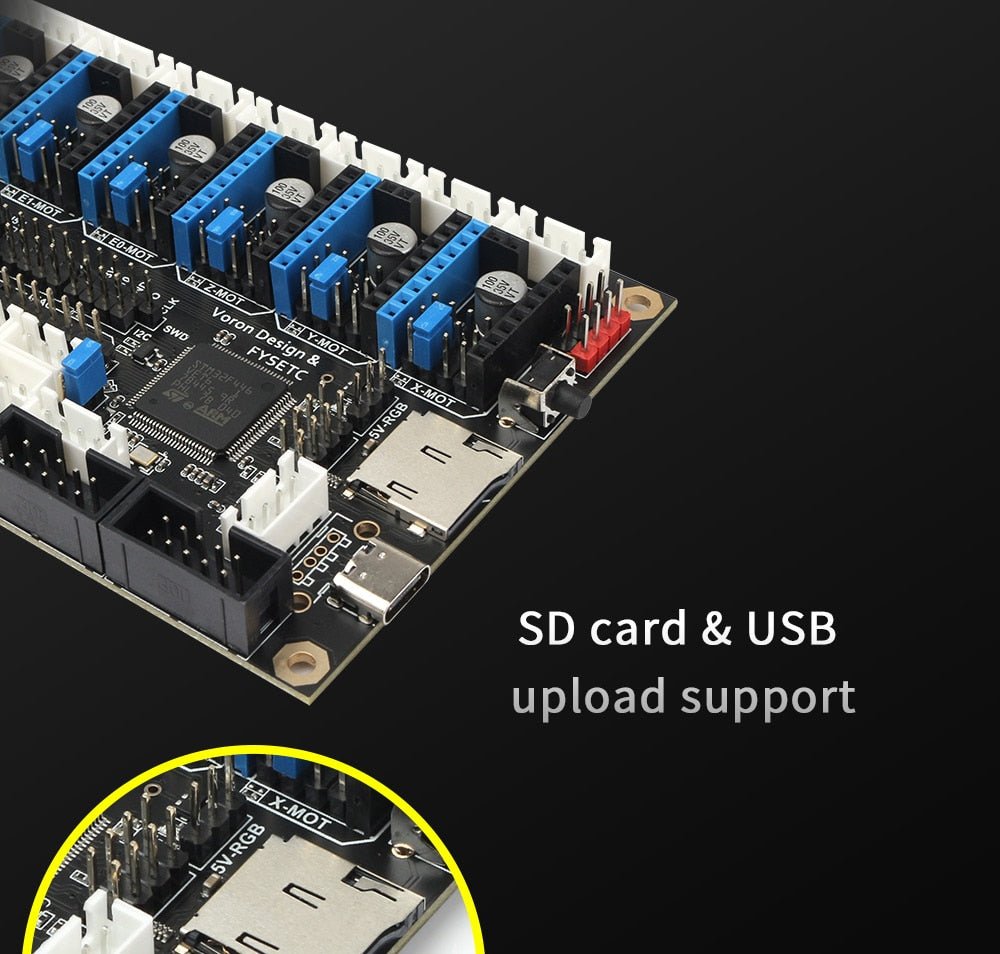

    • SD card & USB upload support
    • A 4.7kOhm 0.1% temperature sensor pull up resistor is used, PT1000 can be connected directly. For PT100, an amplifier board must be used.
    • V2.2: Add more protection (TVS for each motor divers, current limit resistor, VMOT fuse)



    For V2.1/2.2
