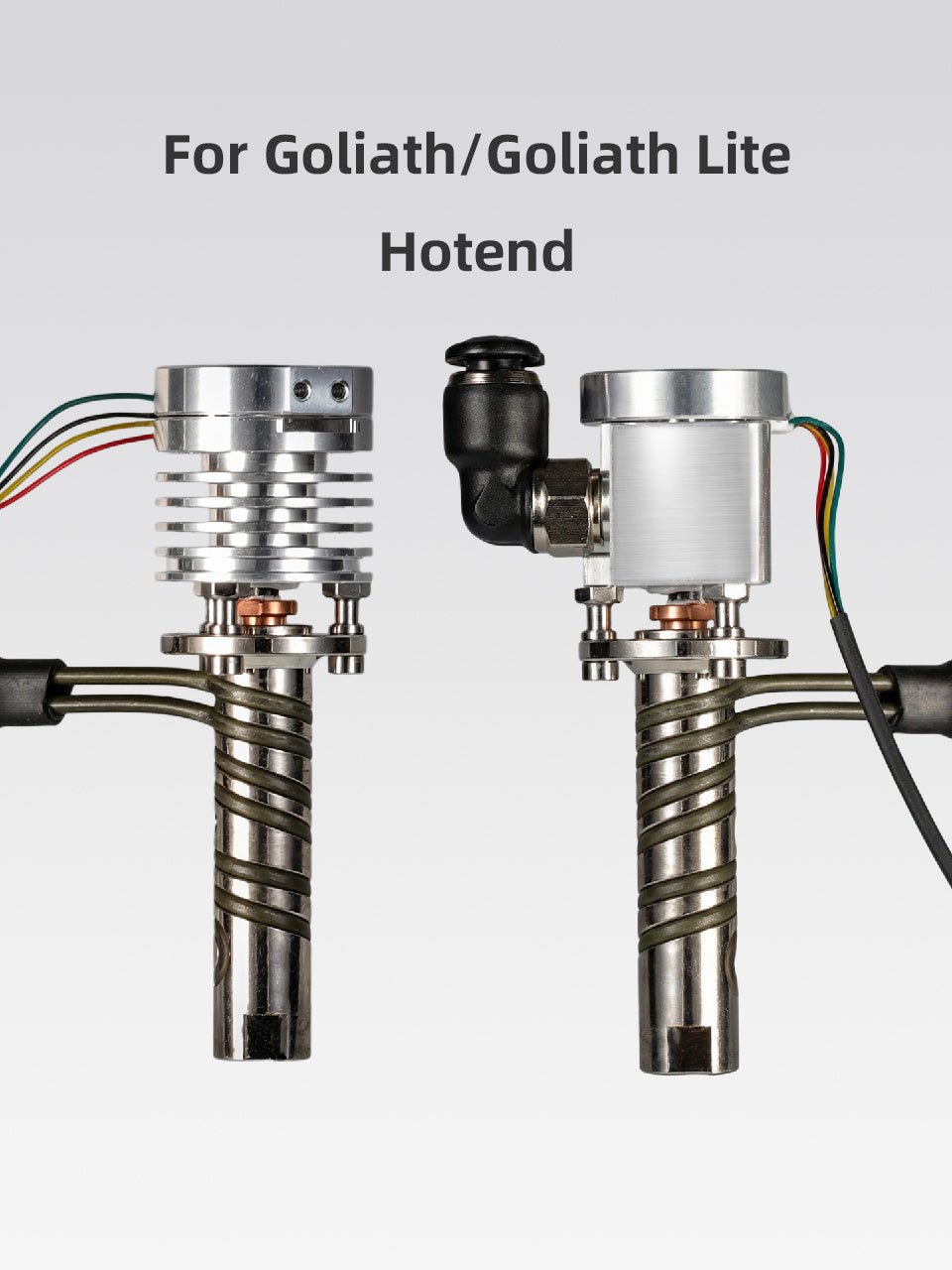

🔧 ALPS Pressure Module for Goliath Hotend
—High-Precision Auto Z Homing & Mesh Bed Leveling Solution
Designed specifically for Goliath hotends, this ALPS-based pressure module enables accurate automatic Z-axis homing and mesh bed leveling through real-time pressure sensing.
Key Features
High-Sensitivity Pressure Detection
Based onADS131M02, the module detects nozzle-to-bed contact with high precision, achieving stable and accurate leveling.
No Z-Offset Recalibration Needed
After nozzle replacement,no need to readjust Z height, saving time and improving workflow efficiency.
Integrated Top-Mount Design
Installed directly on top of the heatsink, requiringminimal installation spaceand maintaining a compact setup.
No Nozzle Offset Adjustment Required
Hotend installation does not require coordinate offset calibration, simplifying setup.
CNC Aluminum Construction
Made from high-precision aluminum alloy for durability, stability, and consistent performance.
Benefits
-
Improves first layer success rate
-
Eliminates errors from mechanical endstops
-
Enables precise and repeatable bed leveling
-
Reduces manual calibration effort
Application
-
Auto Z-axis homing (Z Home)
-
Mesh Bed Leveling (MBL)
-
High-performance and automated 3D printing setups
Important Notes
-
Recommended: Use with a nozzle wiping function to ensure accuracy
-
Ensure the module issecurely installedto avoid vibration issues
-
Double-check allcable connectionsbefore use
-
Perform multiple leveling tests during initial setup
-
Must be connected to mainboard/toolboard— Type-C alone will NOT work
Package:

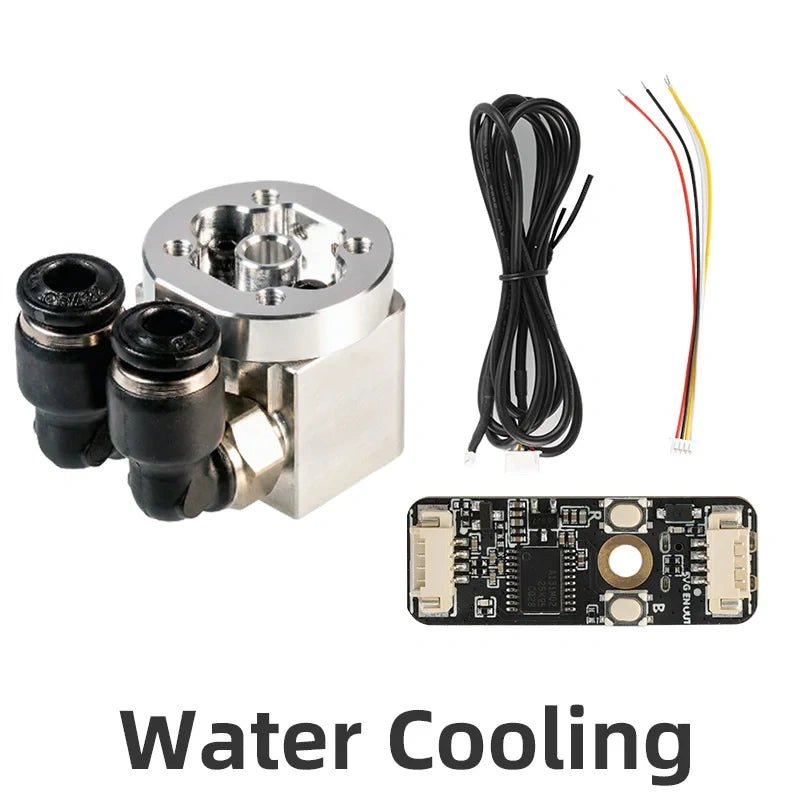

Water Module:
1*Goliath Alps Module
1*Goliath Water Hestsink
1*Alps Board
1*1.5M Cable

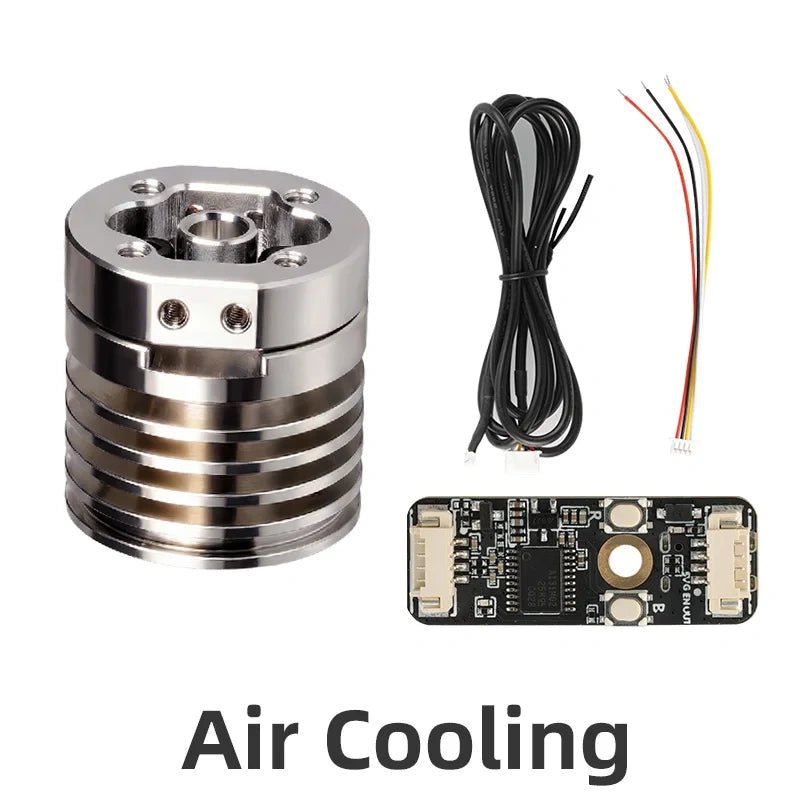

Air Module:
1*Goliath Alps Module
1*Goliath Air Hestsink
1*Alps Board
1*1.5M Cable
