Beschreibung
From our friend Morton Jonuschat's GitHub.
This NightOwl kit includes an ERB 2.0 and cutter components (the optional components listed below). This is a DIY kit, you will need to print the 3D printed parts.

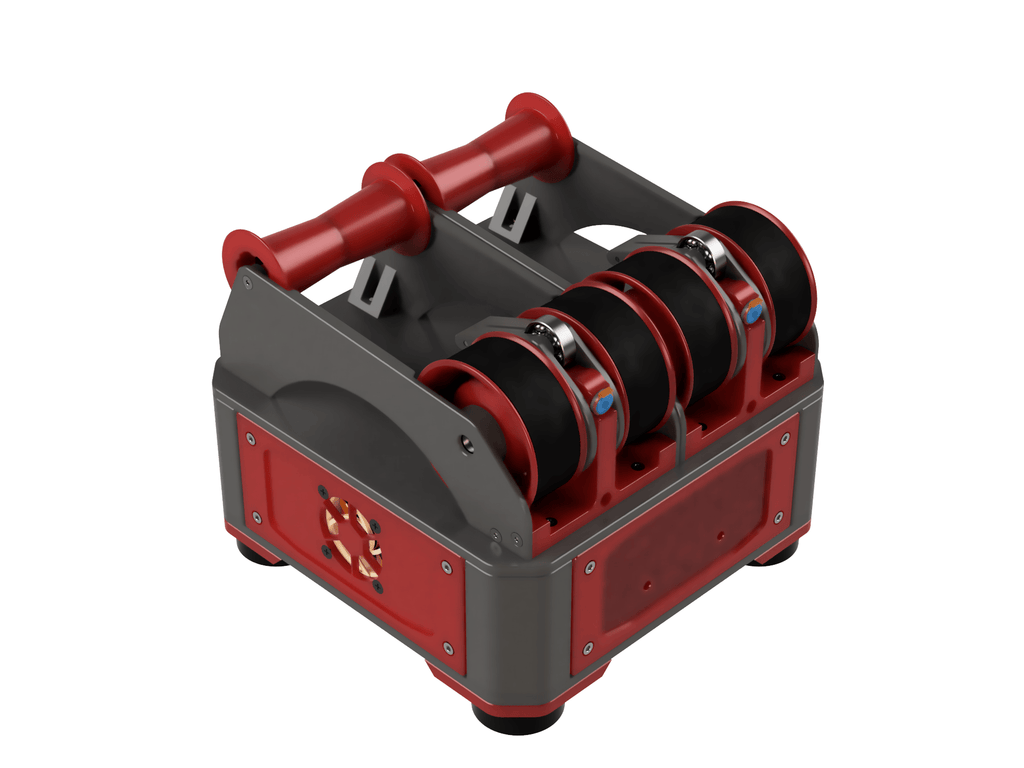

NightOwl: Integrated Dual Spool Filament Switching System
NightOwl is an enclosure that integrates multiple projects' technologies into a dual-spool filament switching system.
Summary
The goal of the NightOwl enclosure is to create a simple, universal filament switching solution that accommodates two primary usage styles: standalone units with integrated rewinding filament spool holders, or backpack-style units mountable to a printer, fed from separate spool rollers. A secondary objective was to design a mostly self-contained setup requiring only a 24V power supply and either a USB or CAN connection.
To achieve this, NightOwl integrates the following projects:
- Hartk's Dual Nightwatch: a compact dual Bowden extruder based on the Voron Nightwatch
- Hartk's Bowden Y-Splitter
- Filamentalist Rewinder - 80mm Axle from the Enraged Rabbit Community
- Fysetc ERB 2.0 MCU
- ArmoredTurtle's TurtleNeck syncing toolhead buffer
Besides these parts you'll also want an extruder that has both a toolhead and an entry sensor. Some options for this are:
For more information check out the Git.
