Description
Receive 10% OFF any BELT or MOTORs (excluding Bambu) when coupled with the purchase of this product! Must be made on same purchase.
Information primarily furnished for the Monolith GitHub.

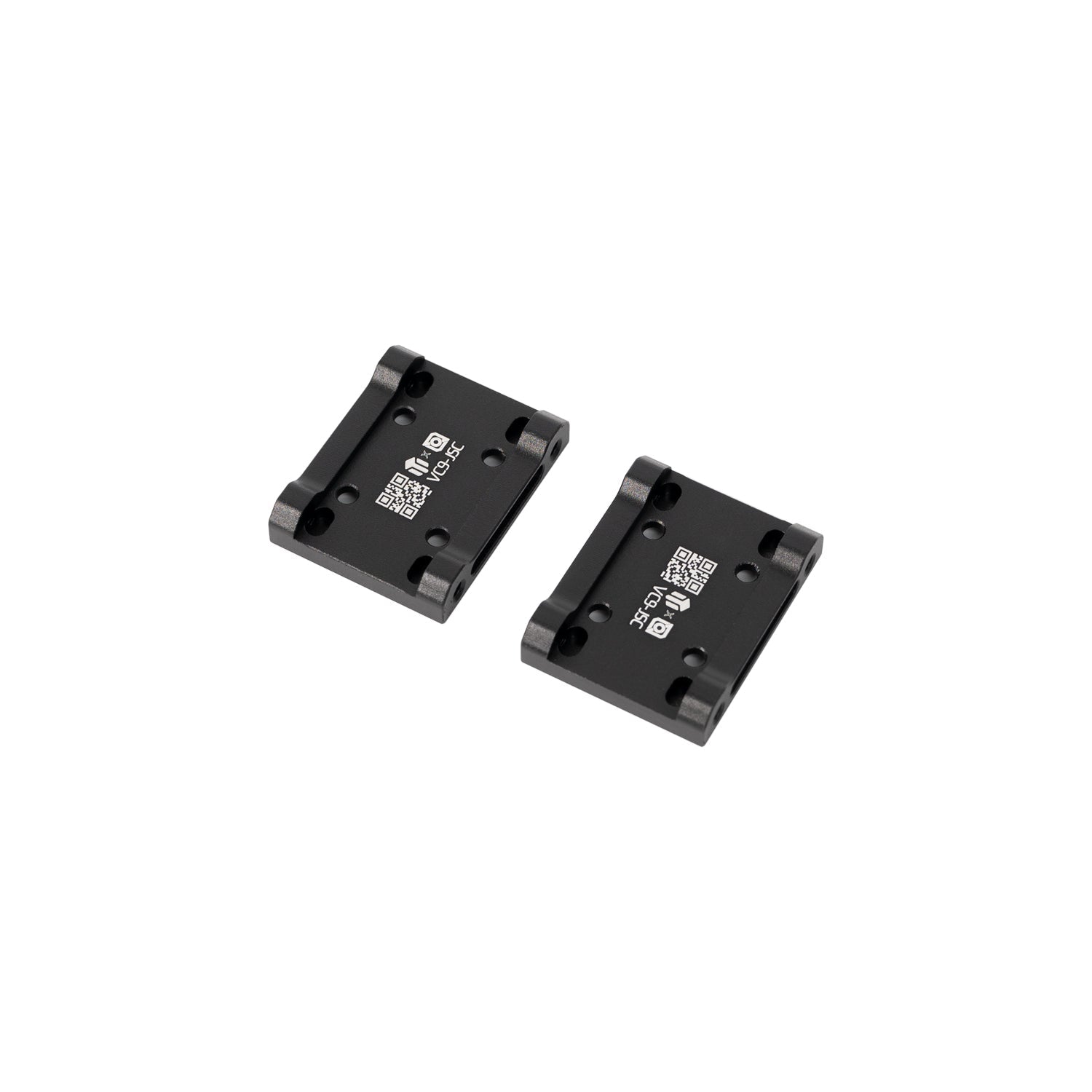

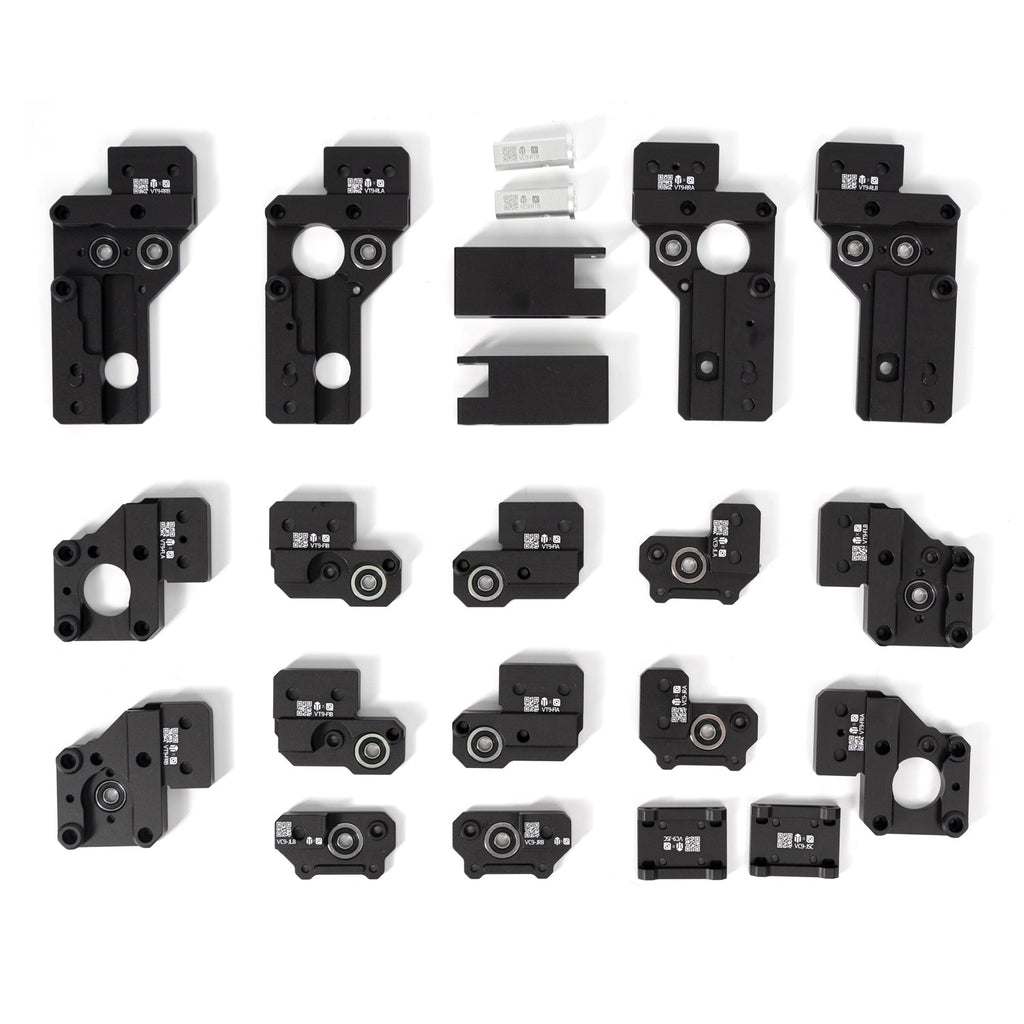

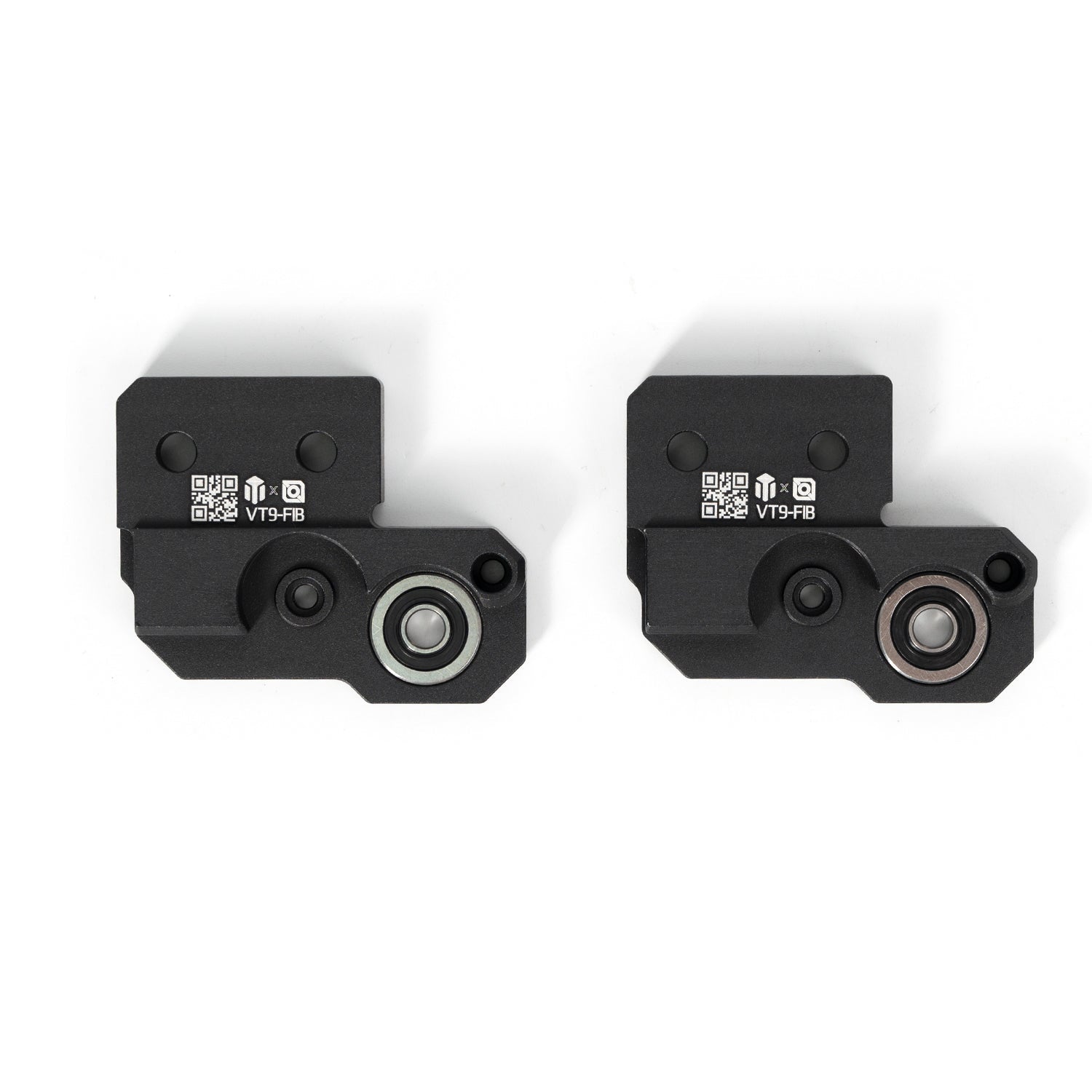

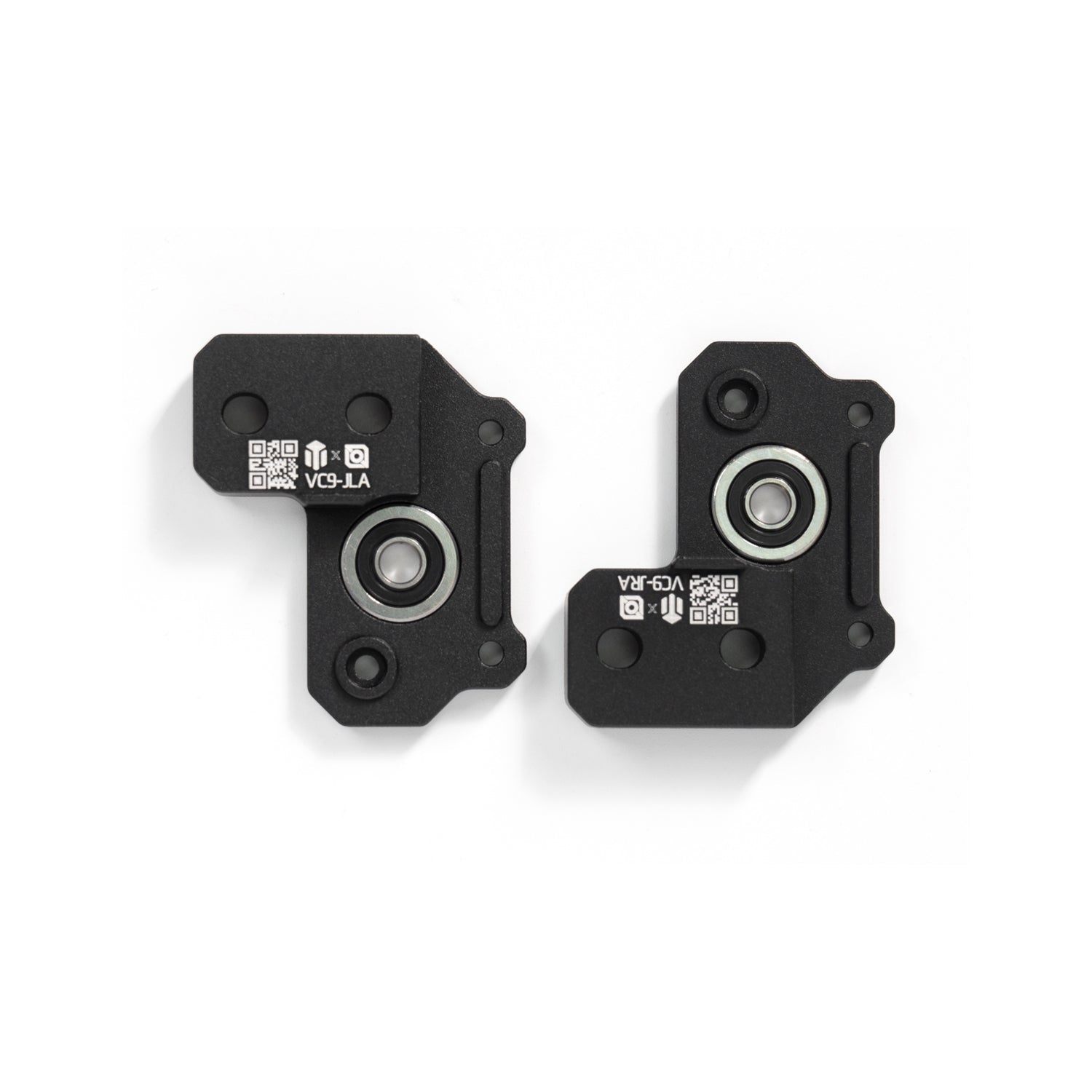

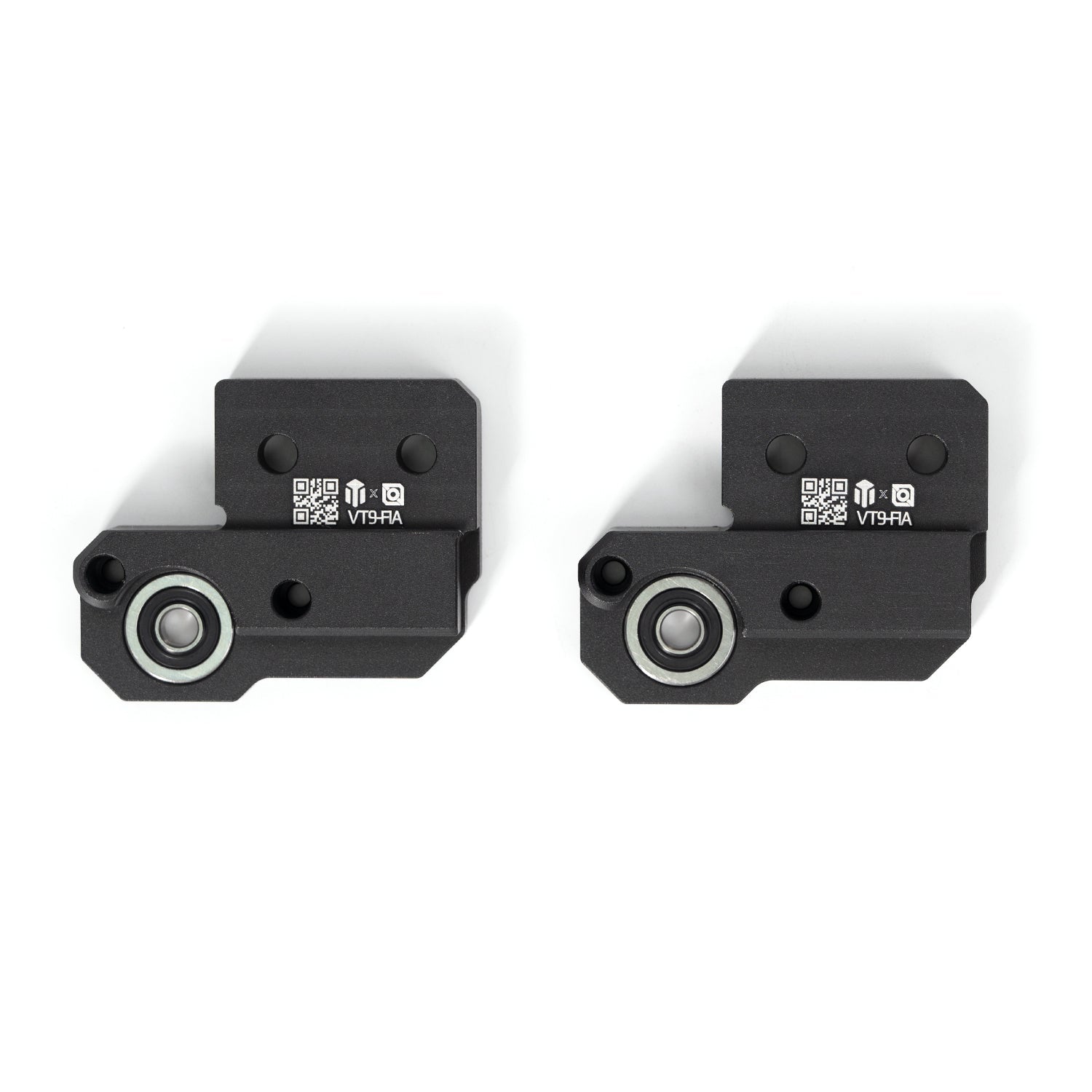

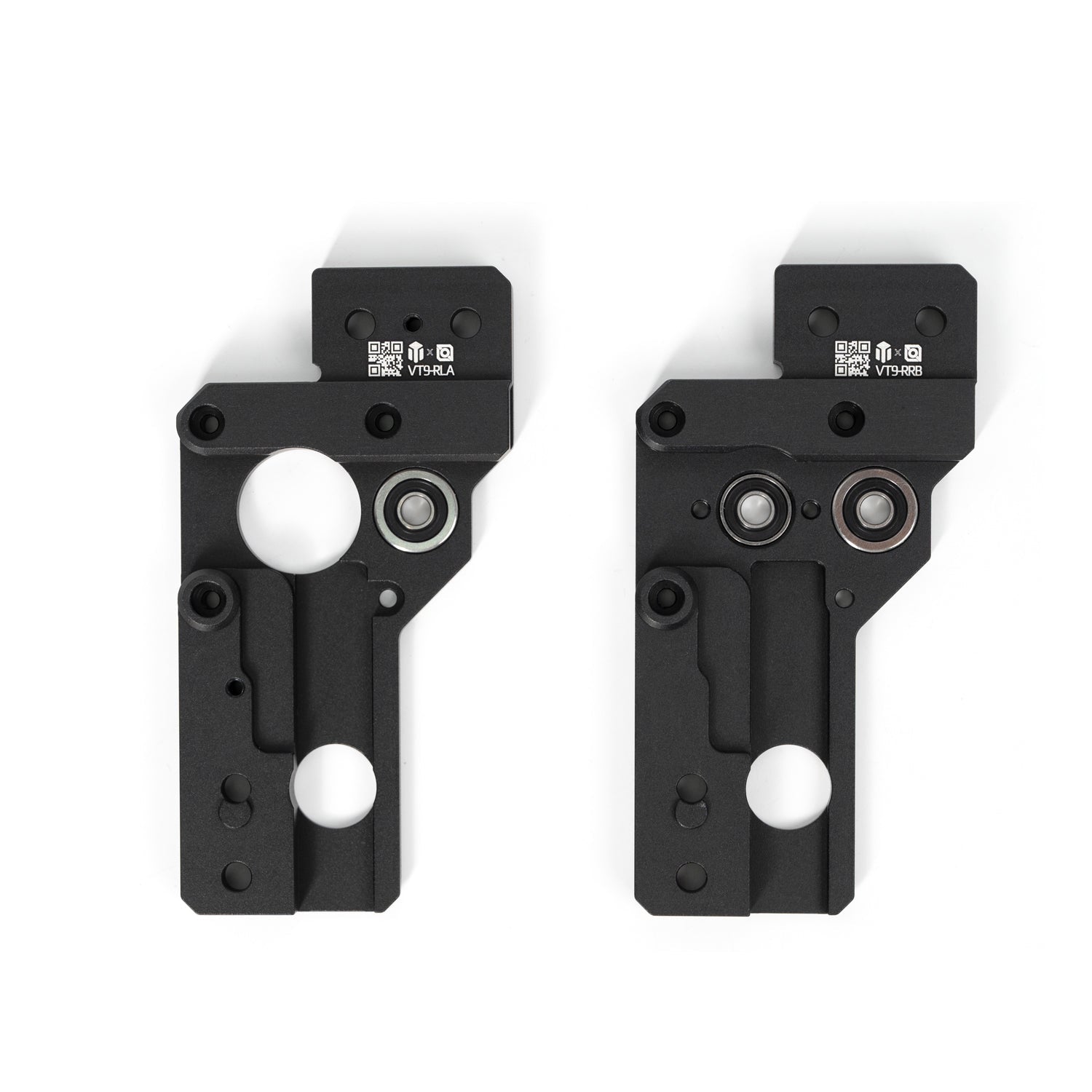

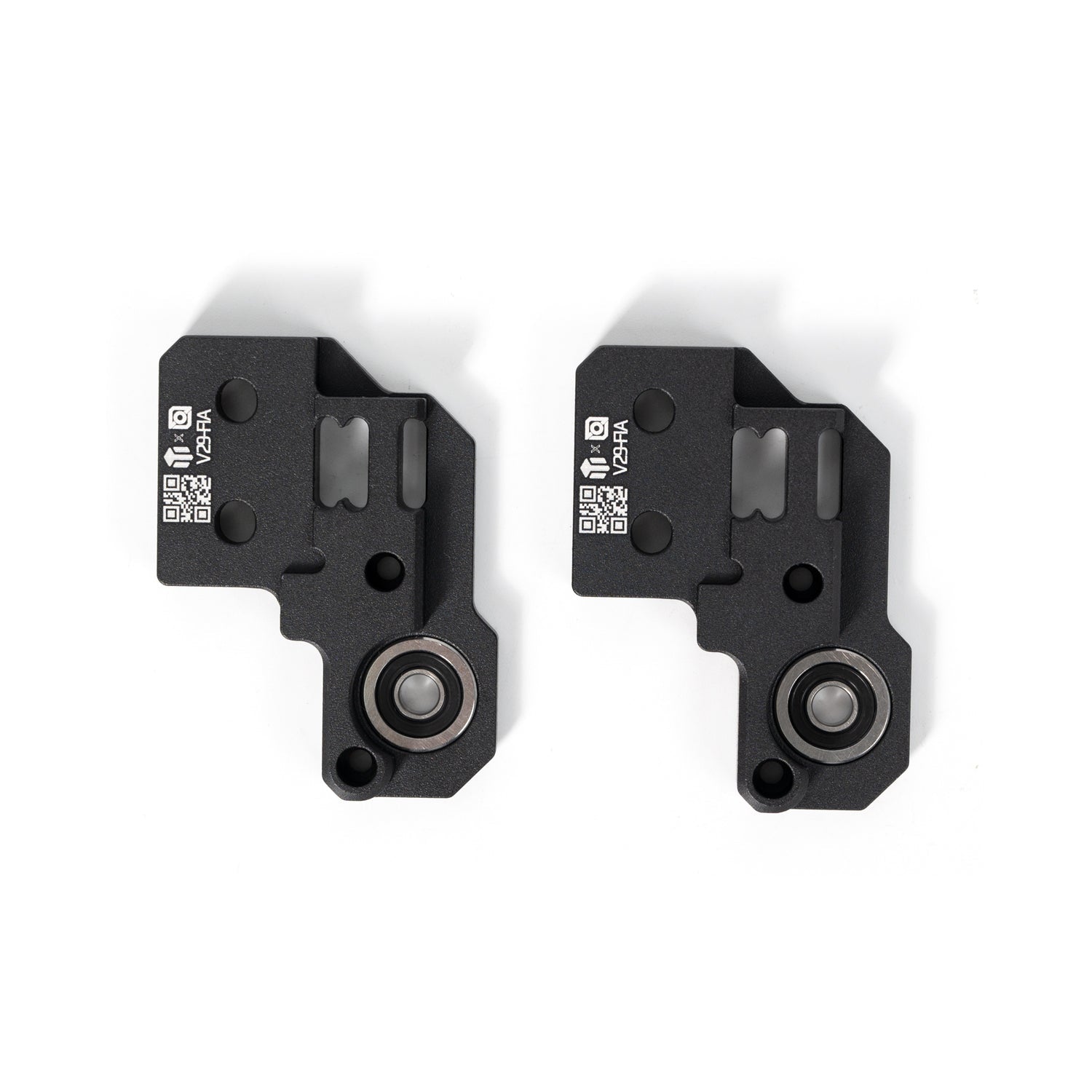

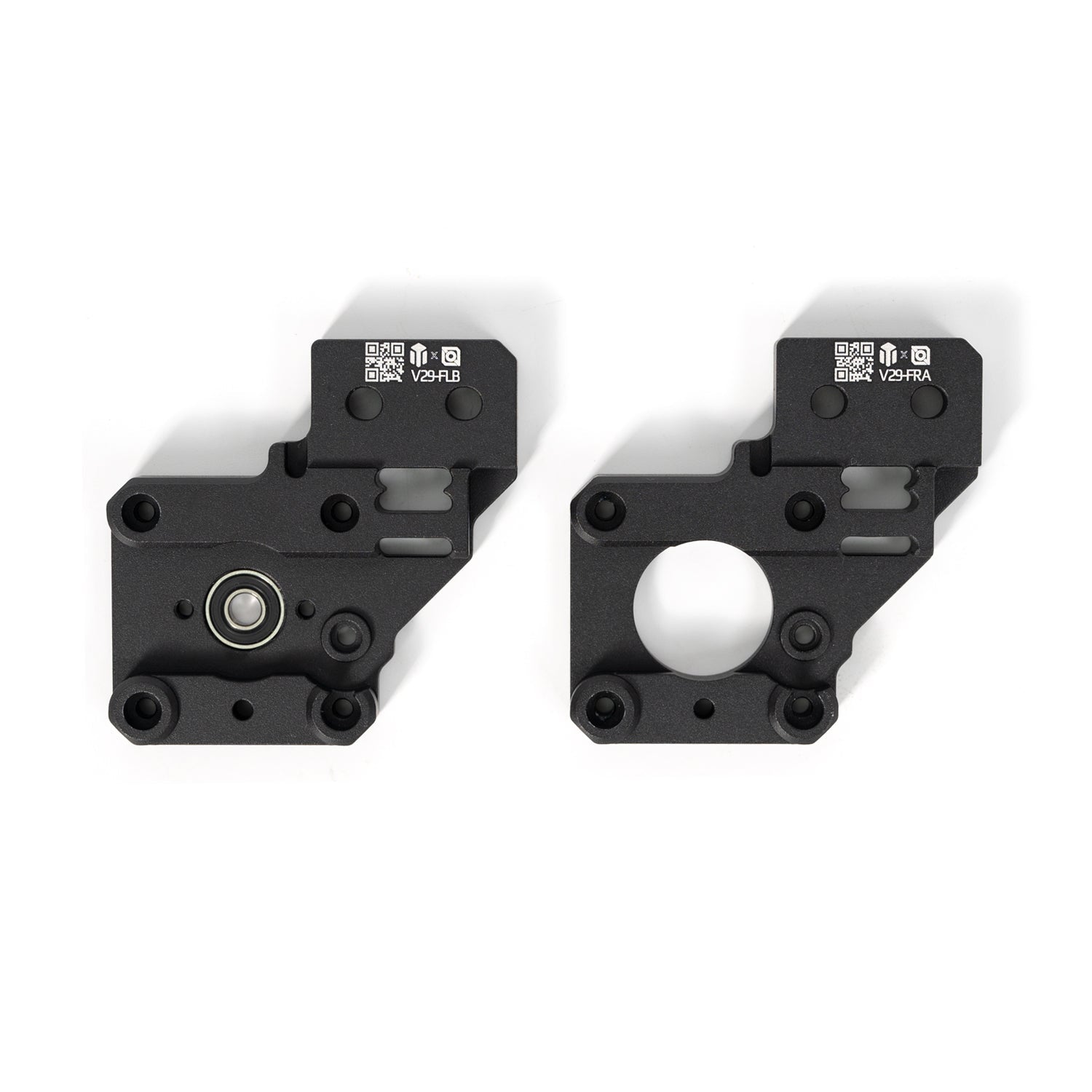

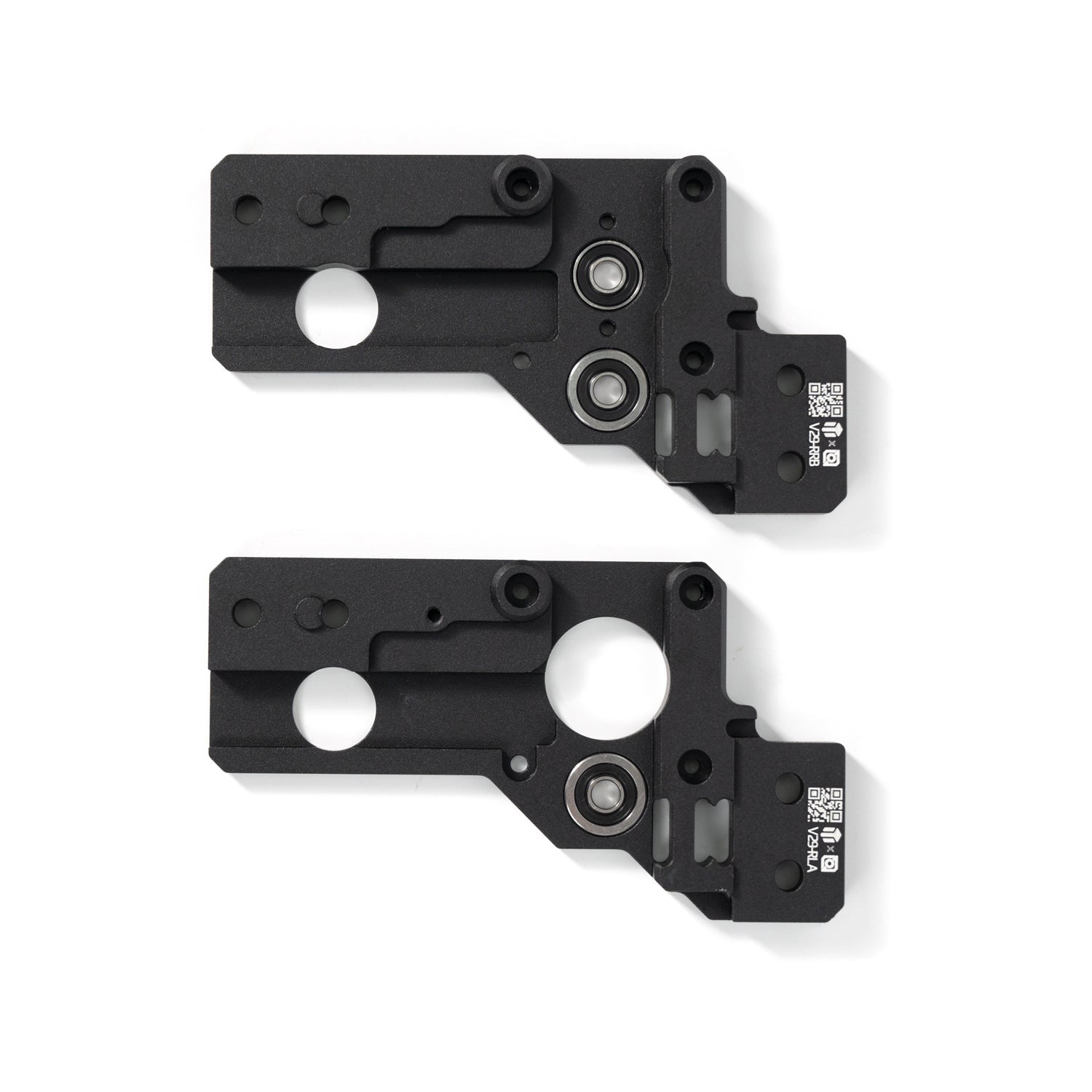

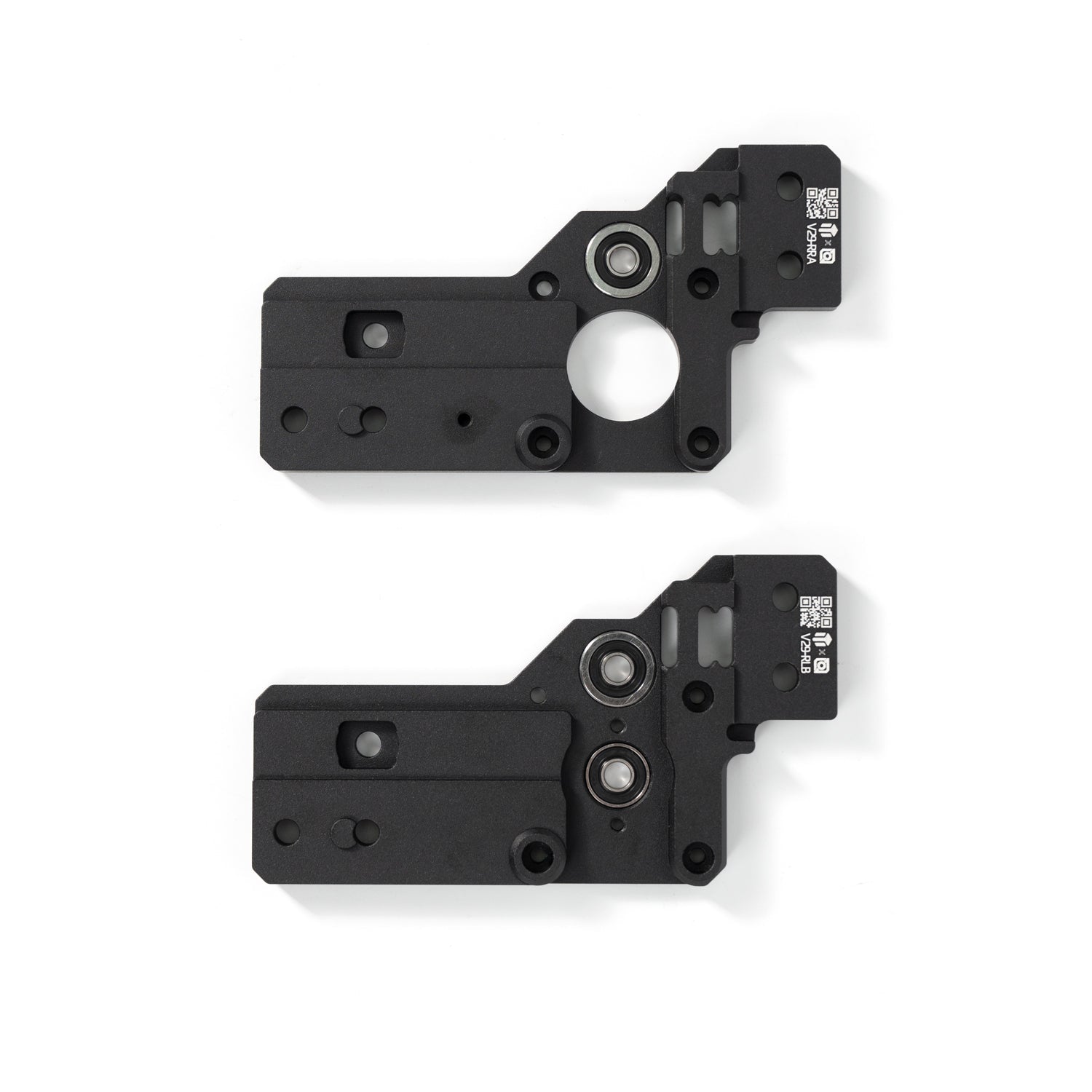

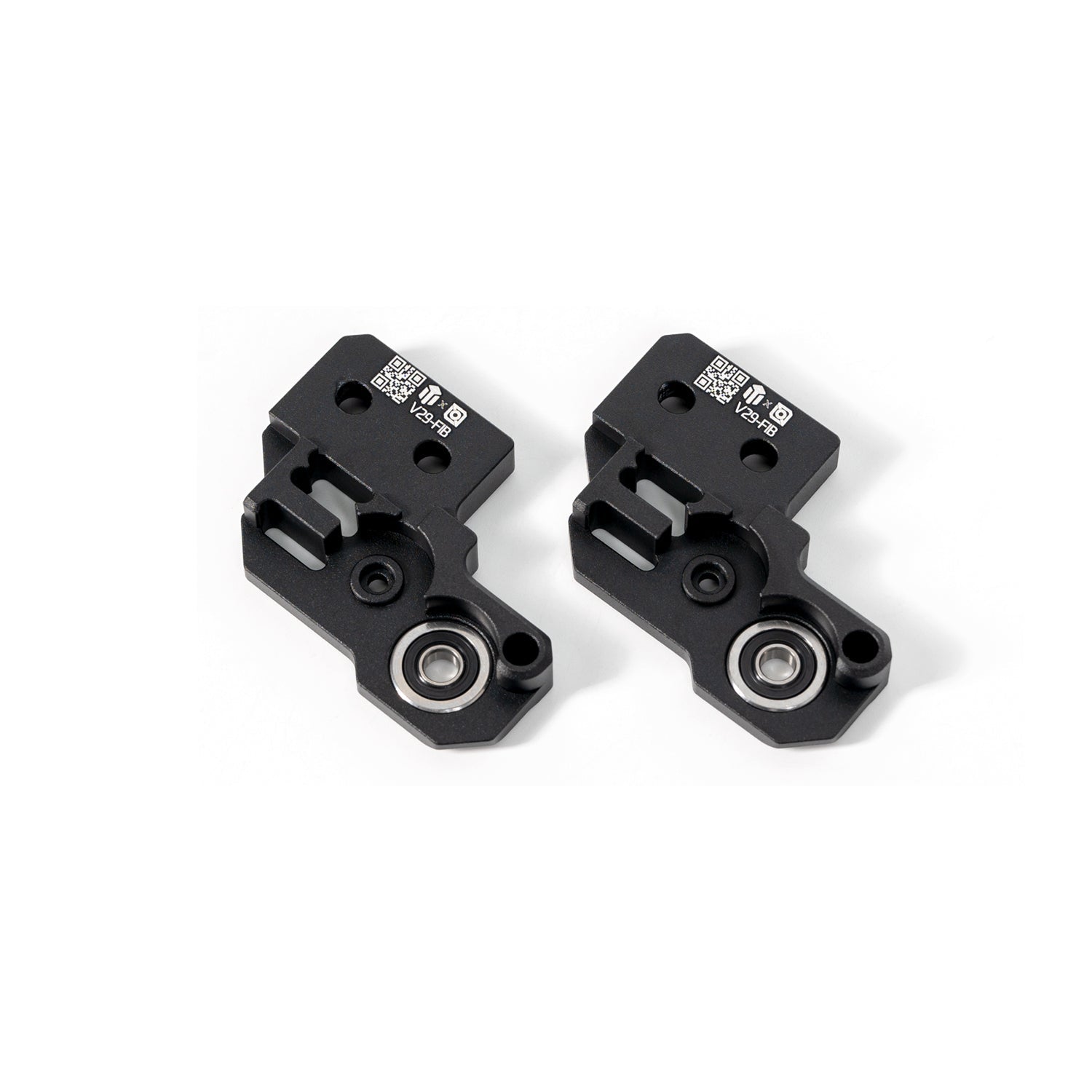

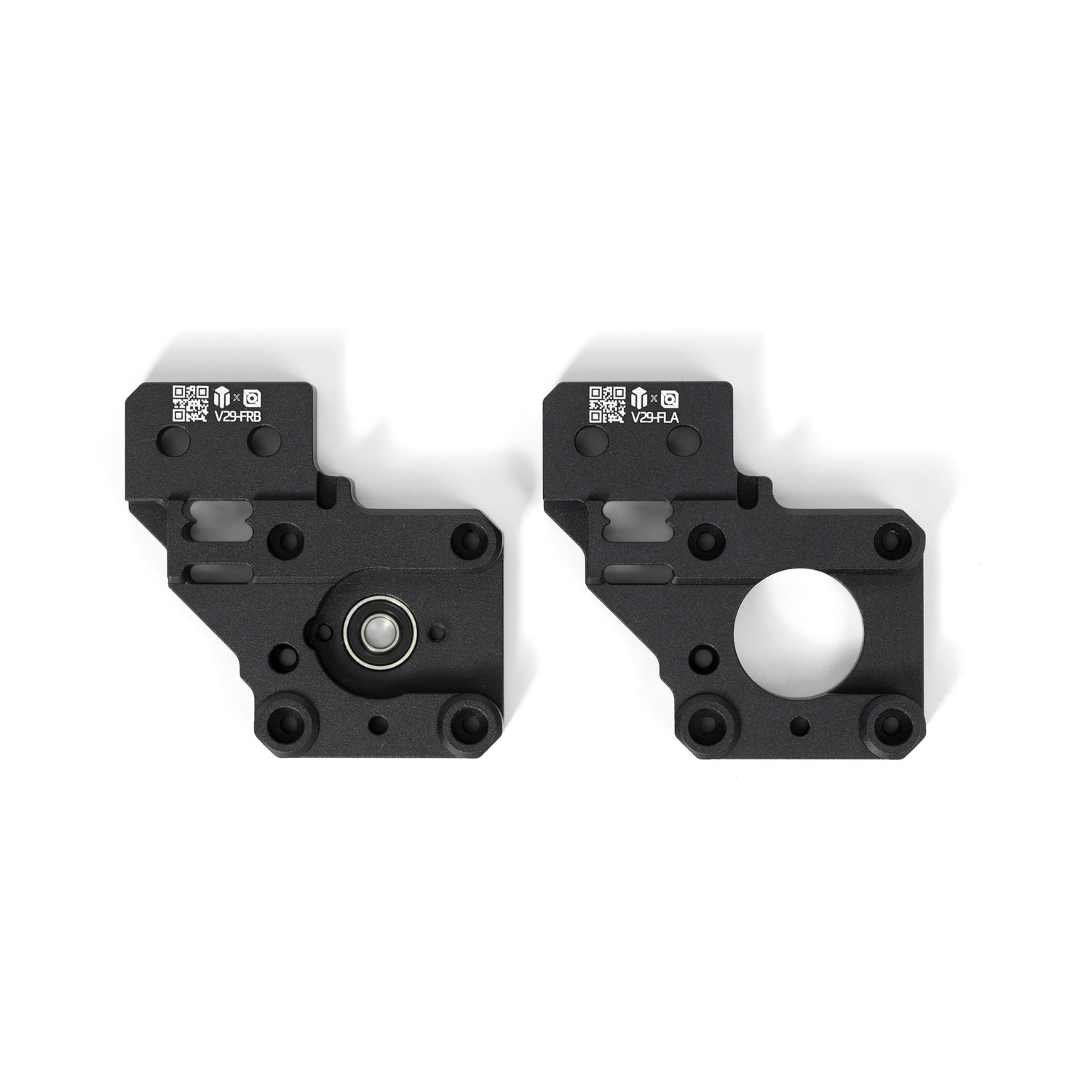

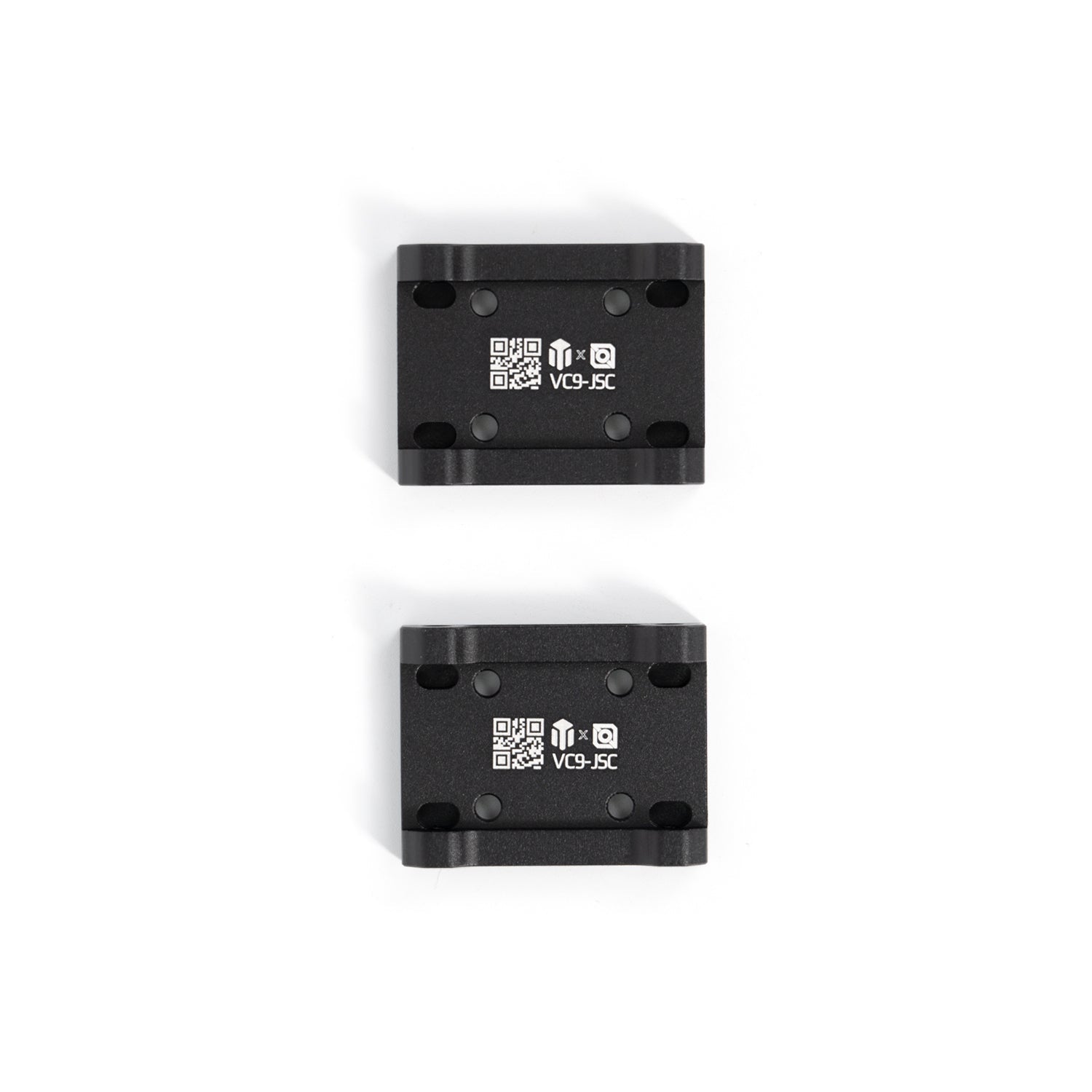

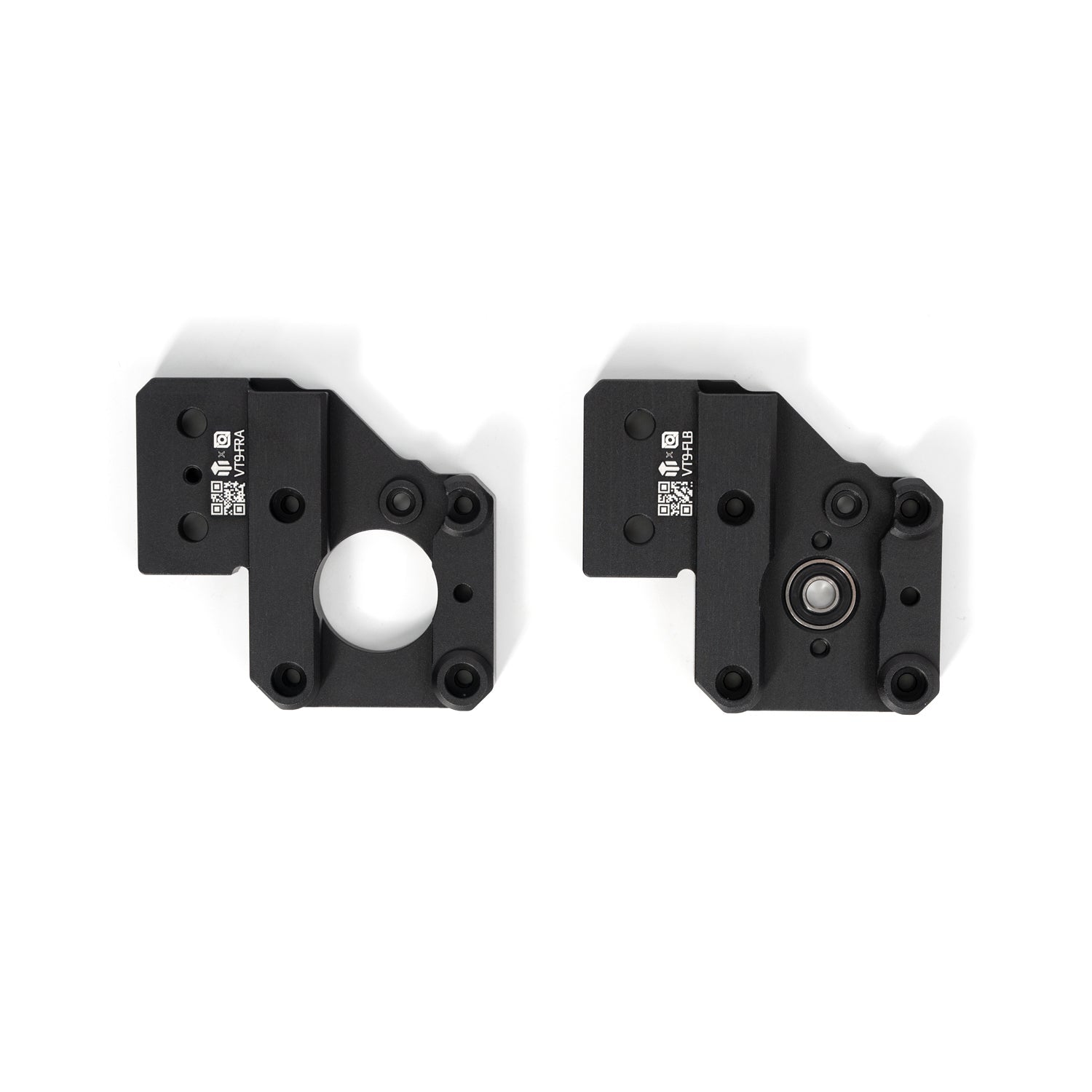

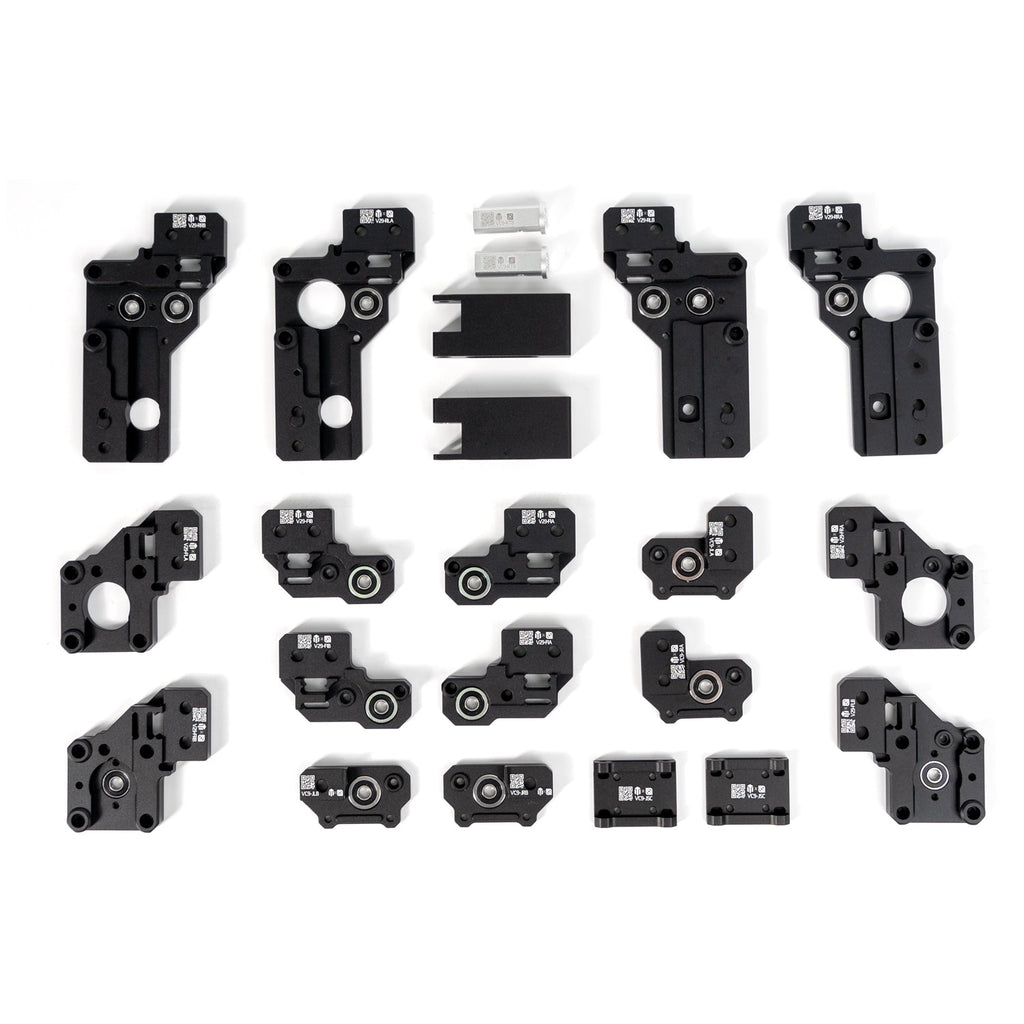

These are the official Milled Monolith Gantry kits for Voron V2 and Trident, manufactured by LDO. Motors and Belts are not included. We recommend Gates 2GT 9mm Belts (RF Here, EPDM Here, Closed Loop Here and Here), and LDO-42STH48-2504AH(S45R) though you can also use any shaft longer which we also carry (e.g. our 55mm versions).
Features:
- Metal Monolith in an easy-to-assemble, aesthetically pleasing package
- 2WD and AWD options in one kit to provide a convenient upgrade path

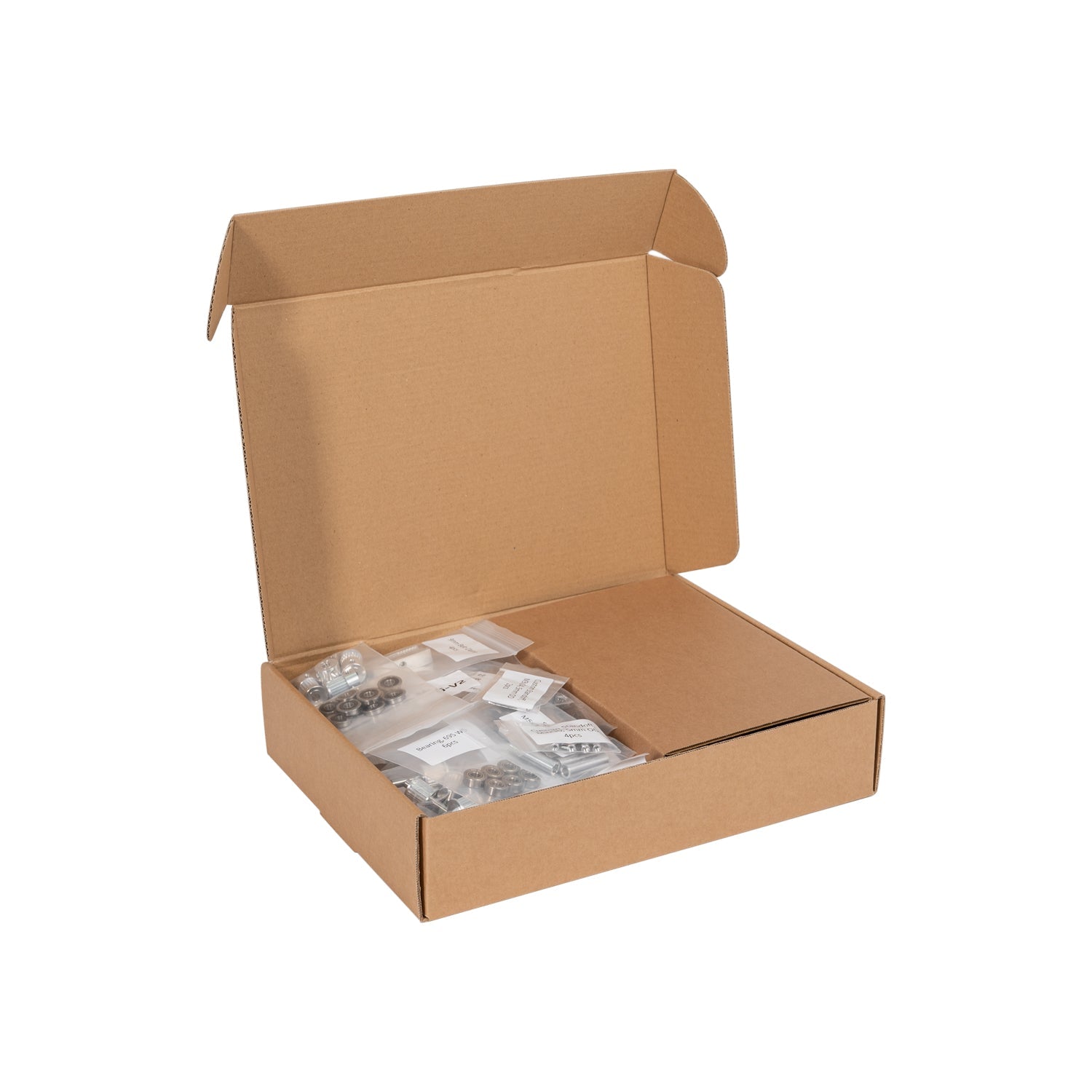

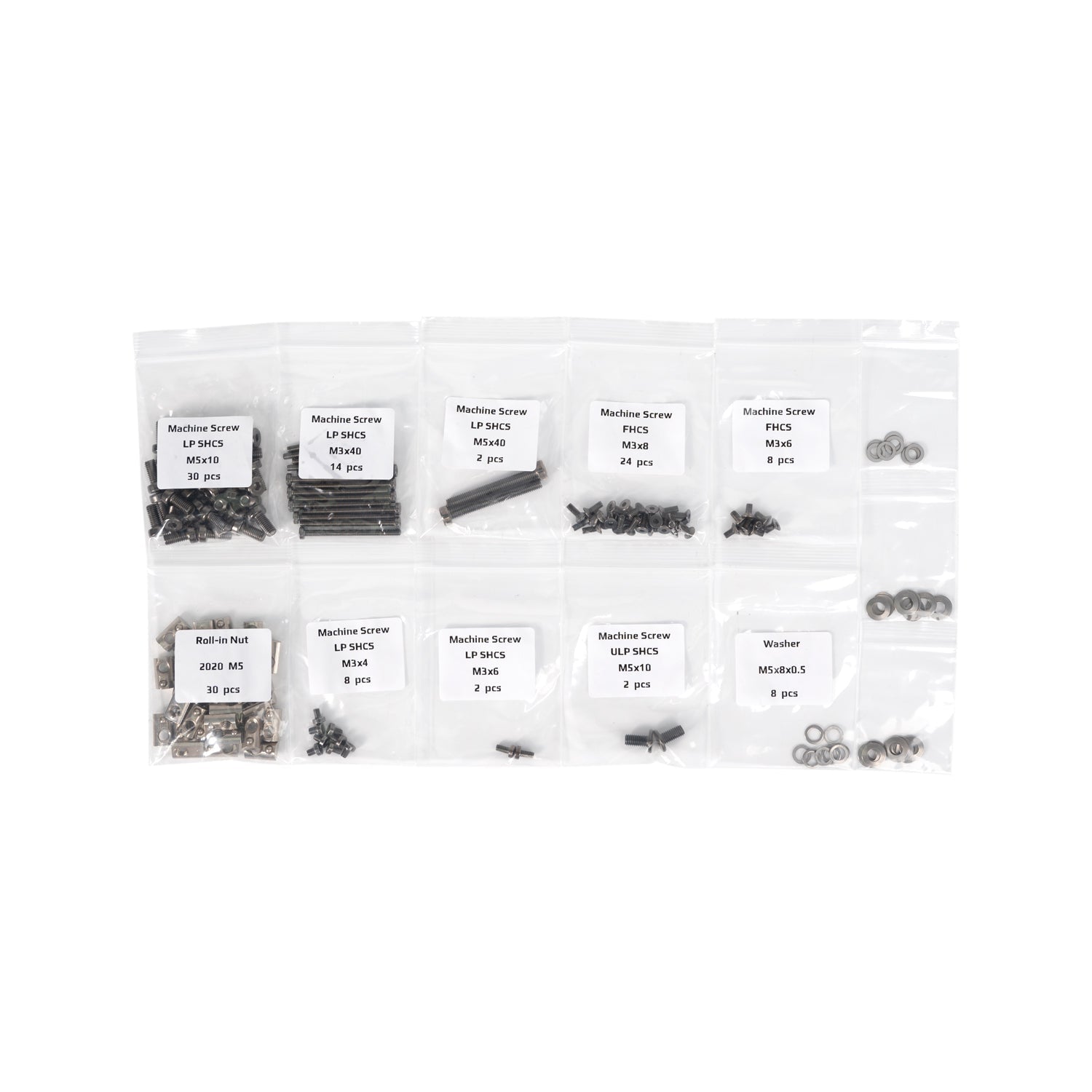

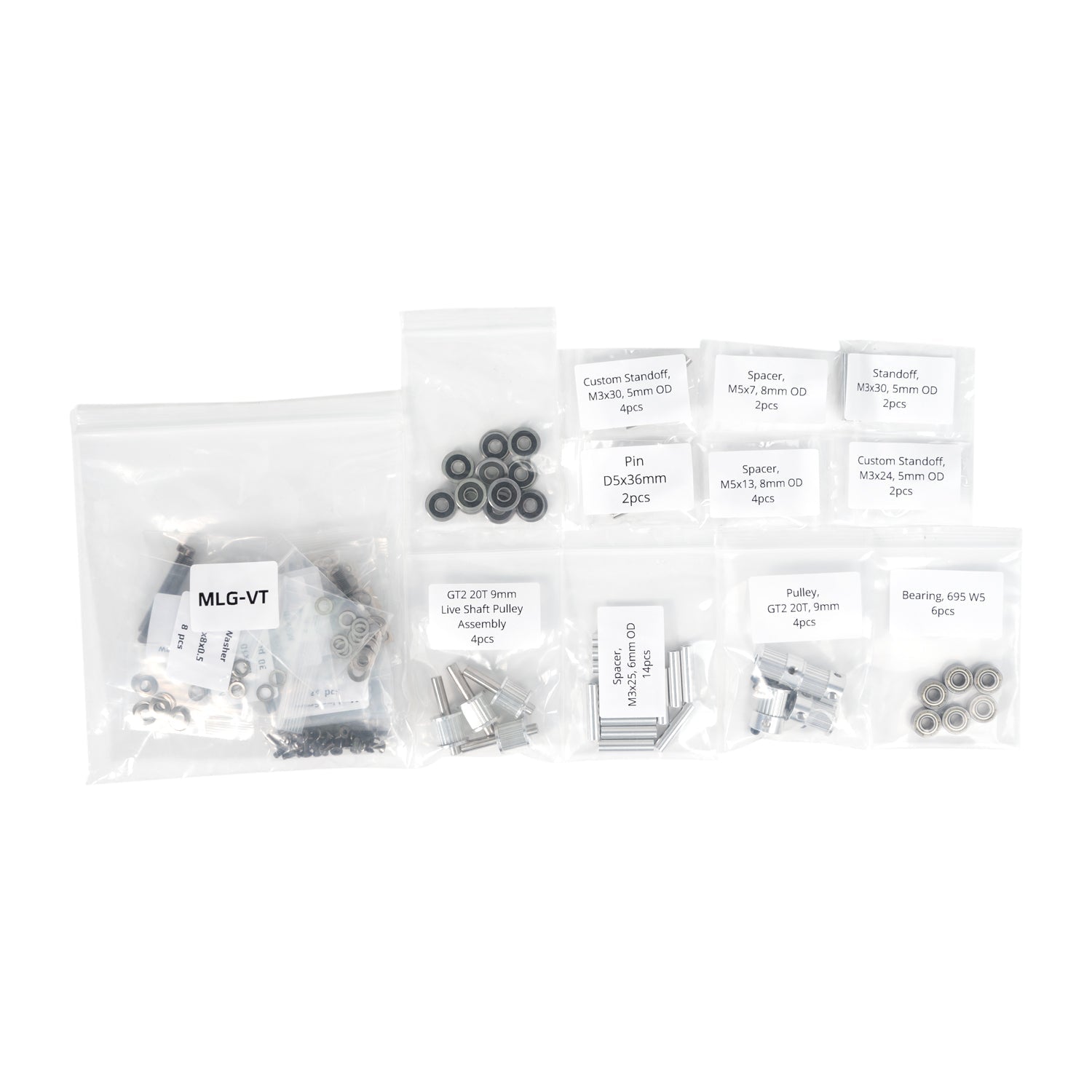

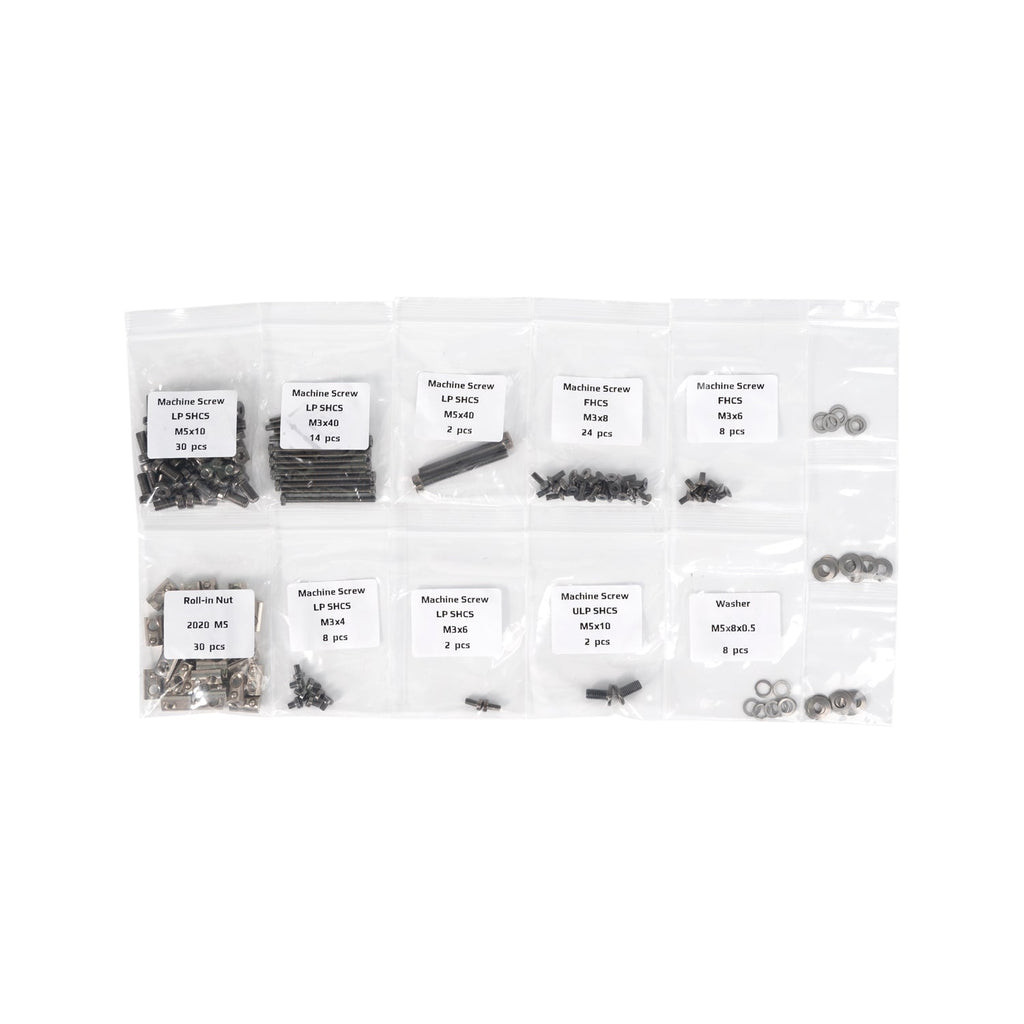

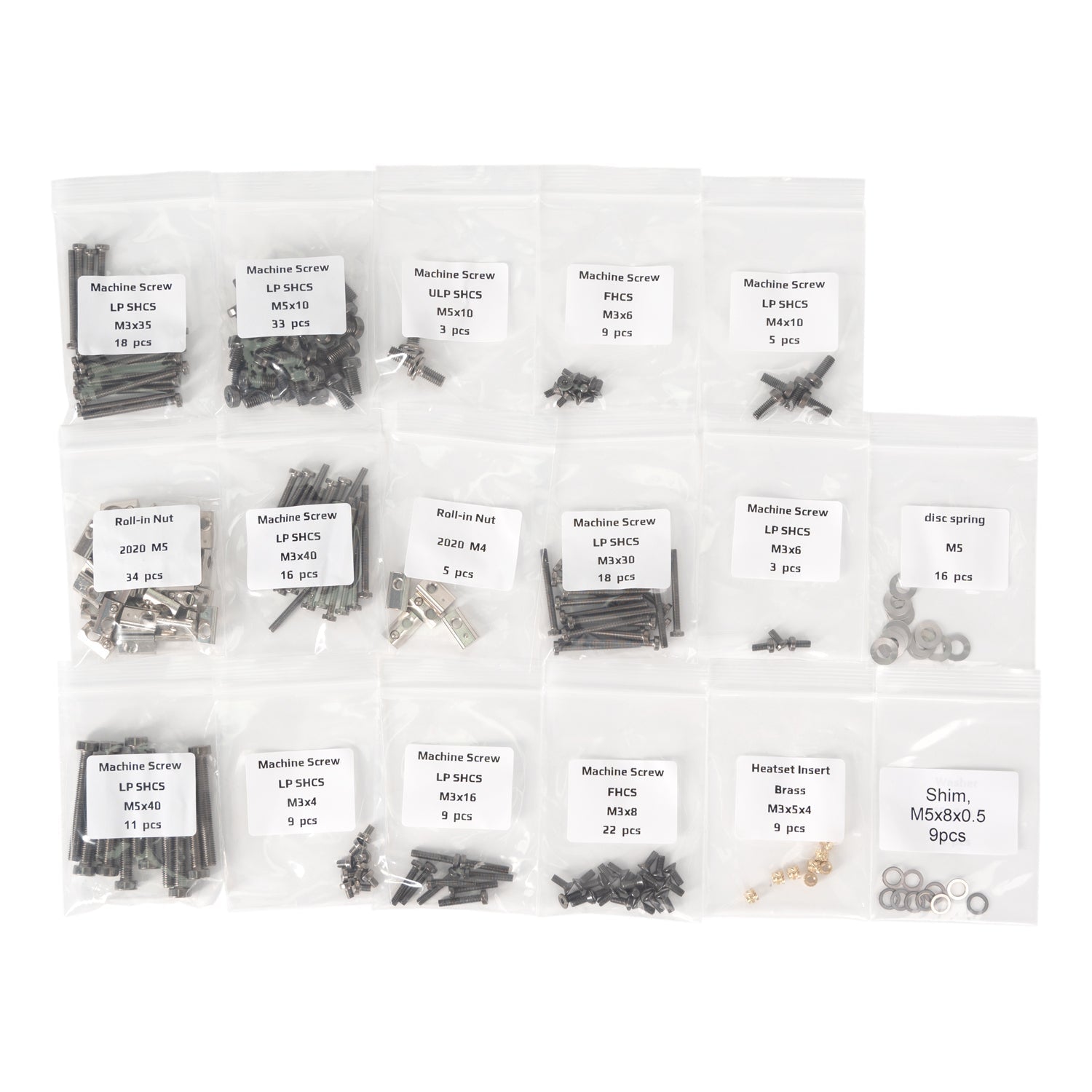

- Everything included except belts and steppers

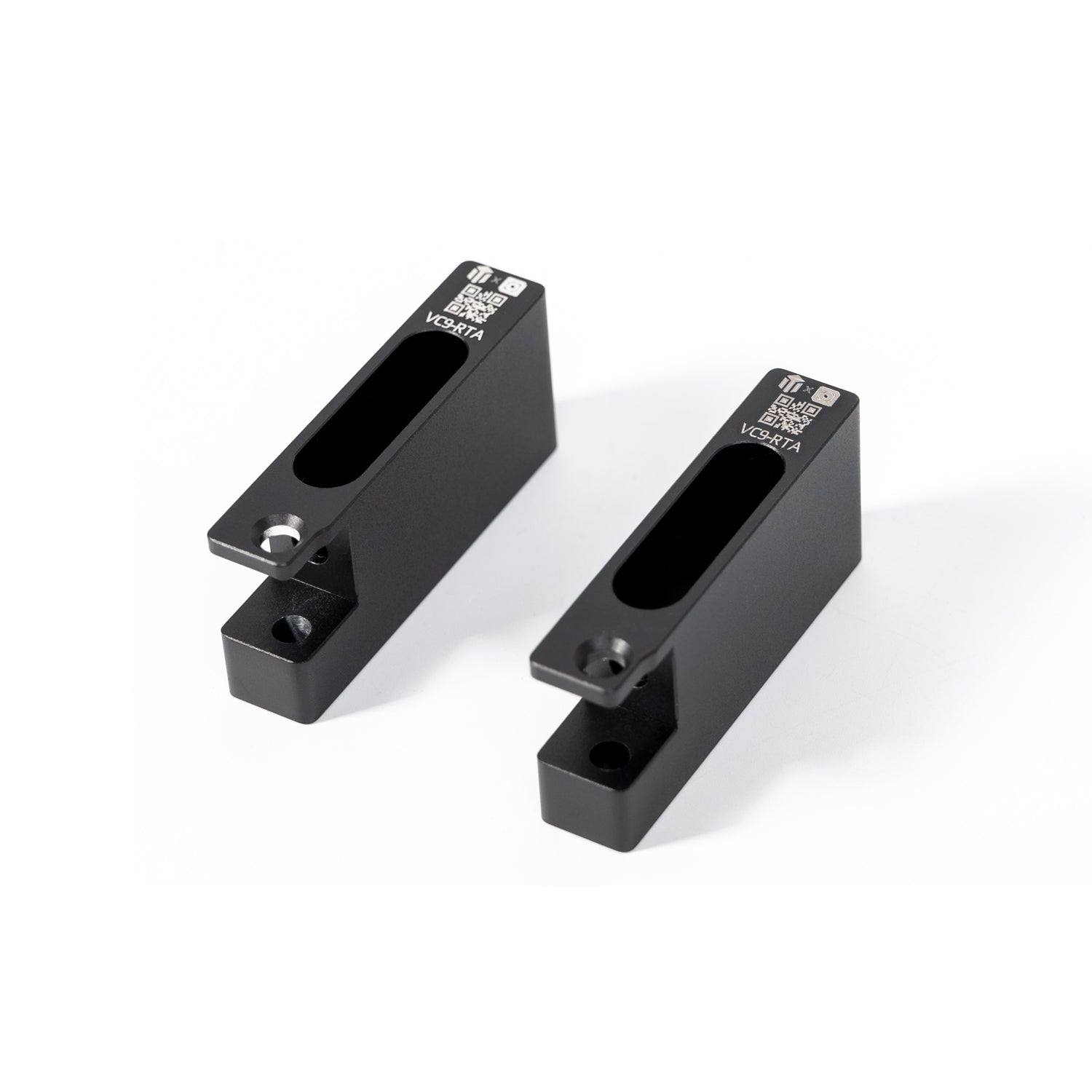

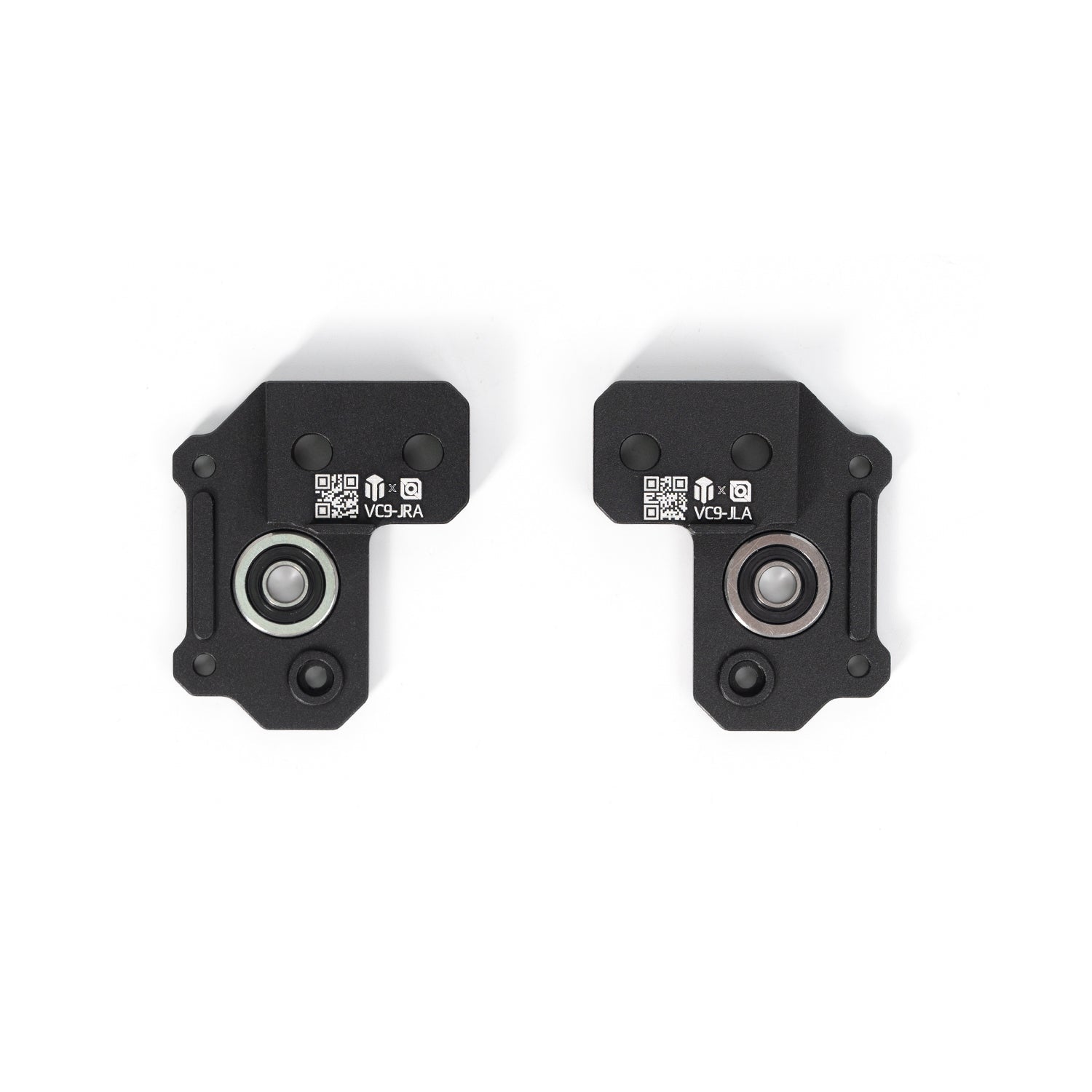

- Robust, removable tensioners for easier belting up and pre-tensioning
- 9/10mm belt support (toolhead dependent)
- Genuine Gates pulleys and press-fit live shaft idlers

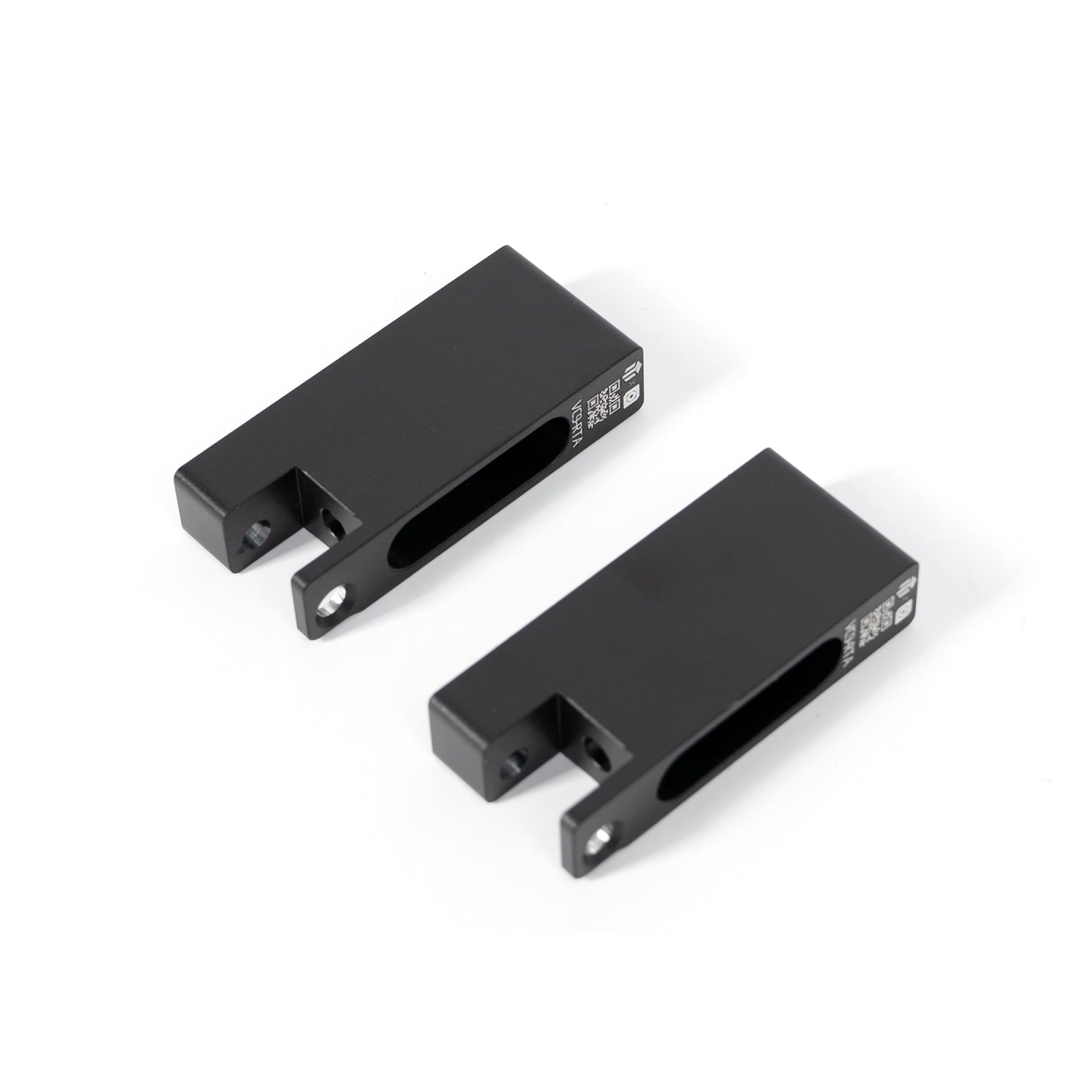

- AWD front extrusion support for toolchangers
Recommendations:
- Made for standard 250-350mm bed sizes
- Frame upgrades for full performance potential (4040, structural panels)
- Best paired with non-modular, performance-oriented toolheads, preferably metal
- LDO 2504 (S45R) Speedy Power steppers (45mm round shaft, 2m long cable)
- Quality, high-preload X-rail
Designer
CloakedWayne
Project Coordinator
JasonFromLDO
Design Consultant
DaveFromLDO
Scarecrow
The_Adeo
Production
LDO Motors
Testing
Brazuka
The_Adeo
Scarecrow
Zakfarias
SyNoon
JoseFromLDO us
Kittie Katt
Reth
JaredC01
Tae
TheVoronModder
