Description

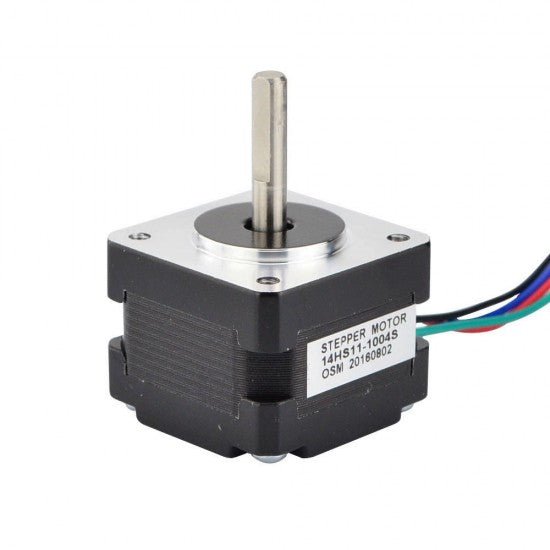

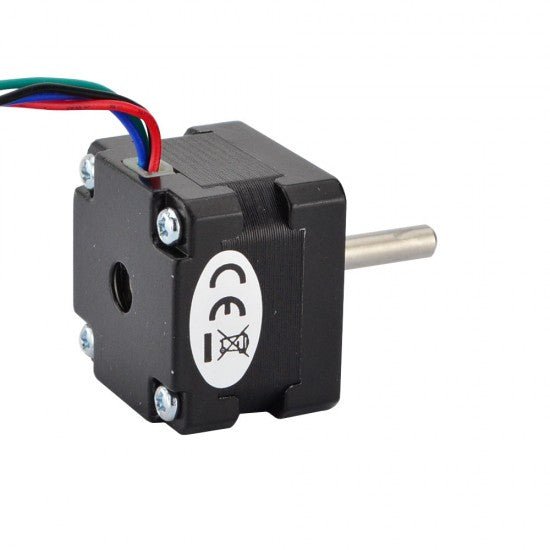

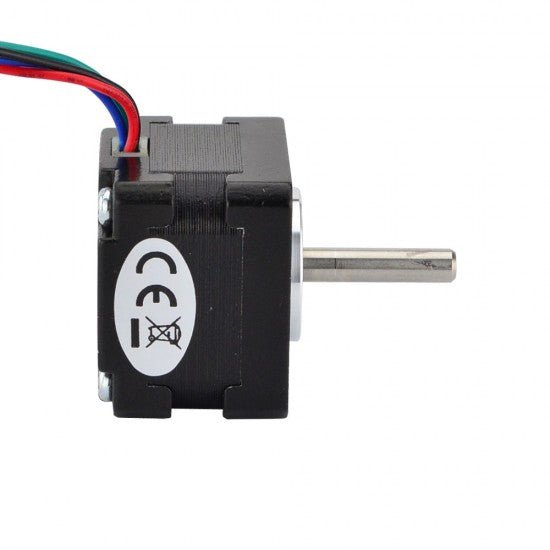

his bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x28mm. It has 4 wires, each phase draws 1 A at 3.5V, with holding torque 12.5Ncm (17.7oz.in).
Electrical Specification
- Manufacturer Part Number: 14HS11-1004S
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 12.5Ncm(17.7oz.in)
- Rated Current/phase: 1.0A
- Phase Resistance: 3.5ohms
- Inductance : 3.5mH ± 20%(1KHz)
Physical Specification
- Frame Size: 35 x 35mm
- Body Length: 28mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight : 140g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Full Datasheet: 14HS11-1004S.pdf
- Torque Curve: 14HS11-1004S Torque Curve.pdf
- STEP File: Here
| ELECTRICAL SPECIFICATION | |
| Inductance(mH) | 3.5 |
| Phase Resistance(ohm) | 3.5 |
| Rated Current(A) | 1 |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Ncm) | 12.5 |
| Holding Torque(oz.in) | 17.7 |
| PHYSICAL SPECIFICATION | |
| IP Rating | 40 |
| Frame Size(mm) | Nema 14 (35 x 35) |
| Body Length(mm) | 28 |
| Single Shaft/Dual Shaft | Single Shaft |
| Output Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Weight(g) | 120 |
