Description

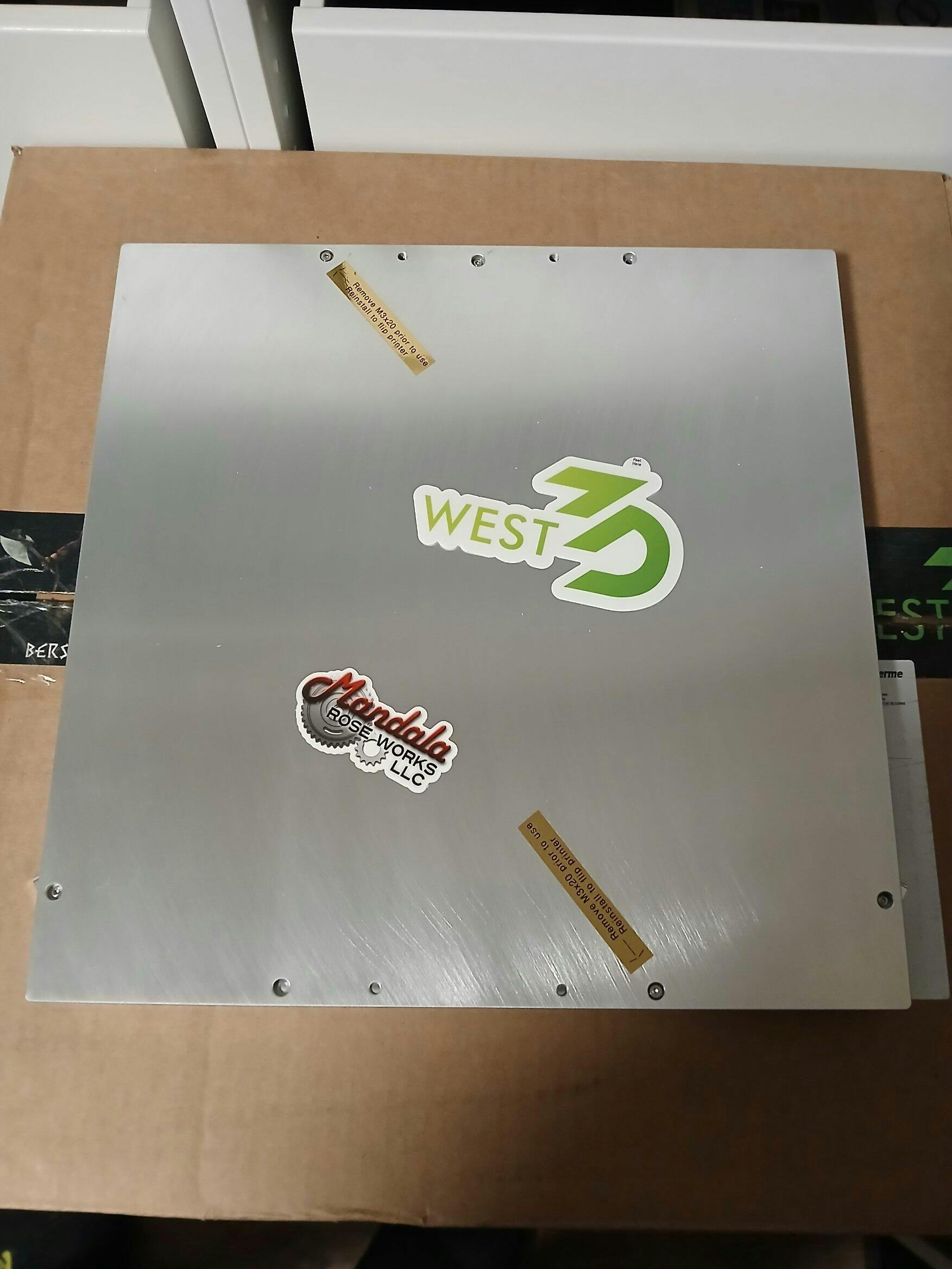

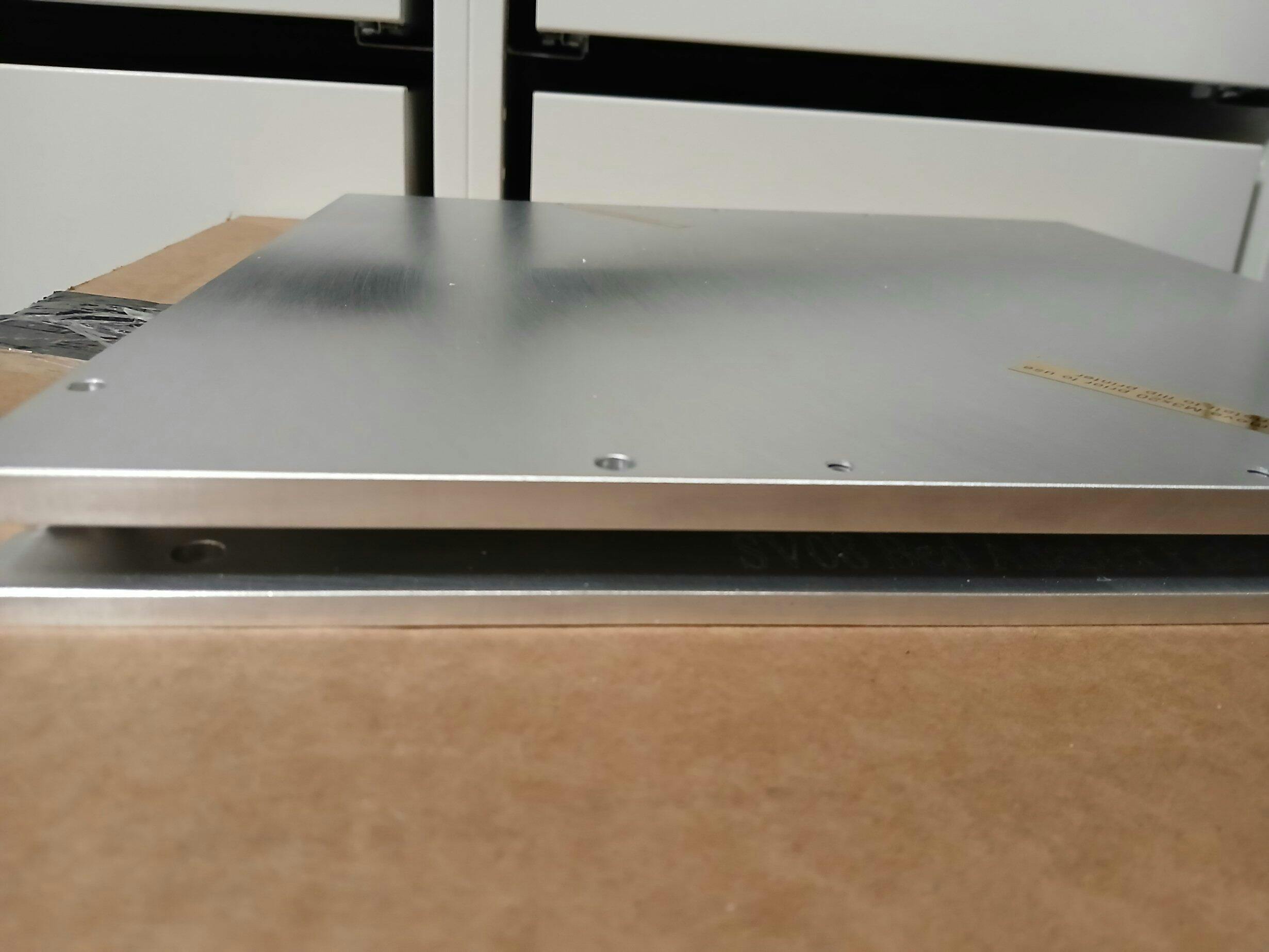

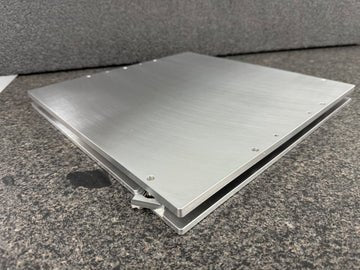

The Sovol SV08 printer is a very economical printer, but users have had issues with the waviness of the beds. We have created the Sovol SV08 Bed Adapter which makes use of our Voron 350 Beds and gives you a kinematically mounted bed replacement solution for the SV08!

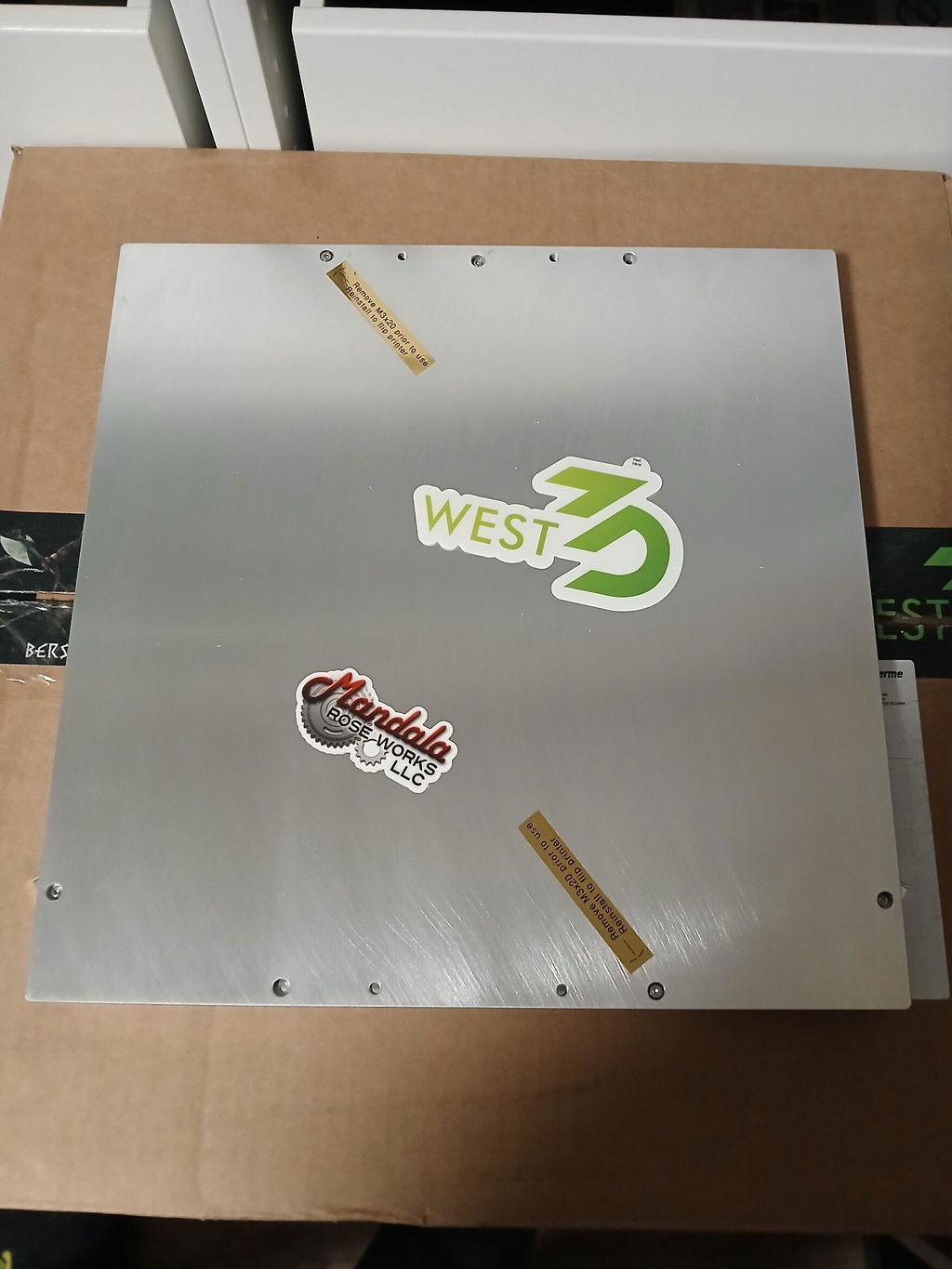

This package includes a Voron 350 Ultraflat bed (flat to no more than 0.1mm out of flat).

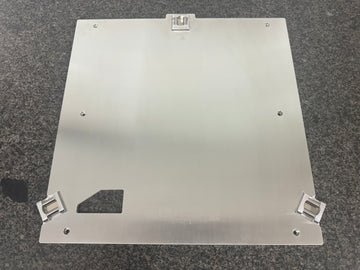

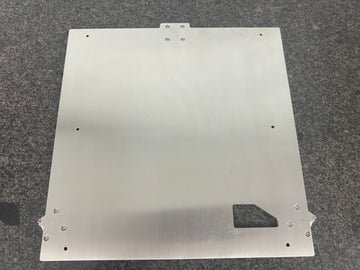

The adapter plate comes with:
- 3 150C N48SH Magnets
- 3 Pin Mounts
- Adapter Plate
- 12 Button Head m3x6mm Bolts
- 3 Button Head m3x10mm Bolts
- 3 Internally Threaded Balls for the Kinematic Mounting
- 2 Cap Head m3x20mm bolts used to lock the bed to the adapter plate if you have to flip your printer to work on it.
- The STL for increasing the height of the nozzle touch off button is here courtesy of Kris at KB3D. You will need 2 m3x20 or longer screws to mount the touch off button with this riser.
This bed is pre-assembled using the hardware listed above, you just need to supply the heater and magnet sticker (if you do not order the magbed). Mounting the bed is done with the hardware left after removing the old bed.
The magnets on the adapter plate help keep the kinematic balls in the channels, and it takes over 3000g of force to dislodge the bed from the adapter plate, so Tap will work just fine with this system.
Dimensions are:
- Bed: 355mm x 355mm x 9mm
- Adapter: 370mm x 370mm x 11mm (with the pin mounts installed)
Thanks to @xXDFAXx (Discord) 2jzswapper (YouTube) for the installation video available below.
