Spindle and VFD Inverters for CNC Milling Machines (Milo by Millennium Machines) (110v and 220v)

LDO MotorsSKU: LDO1987
Style: VFD 220v
Price:
$114.99

Description

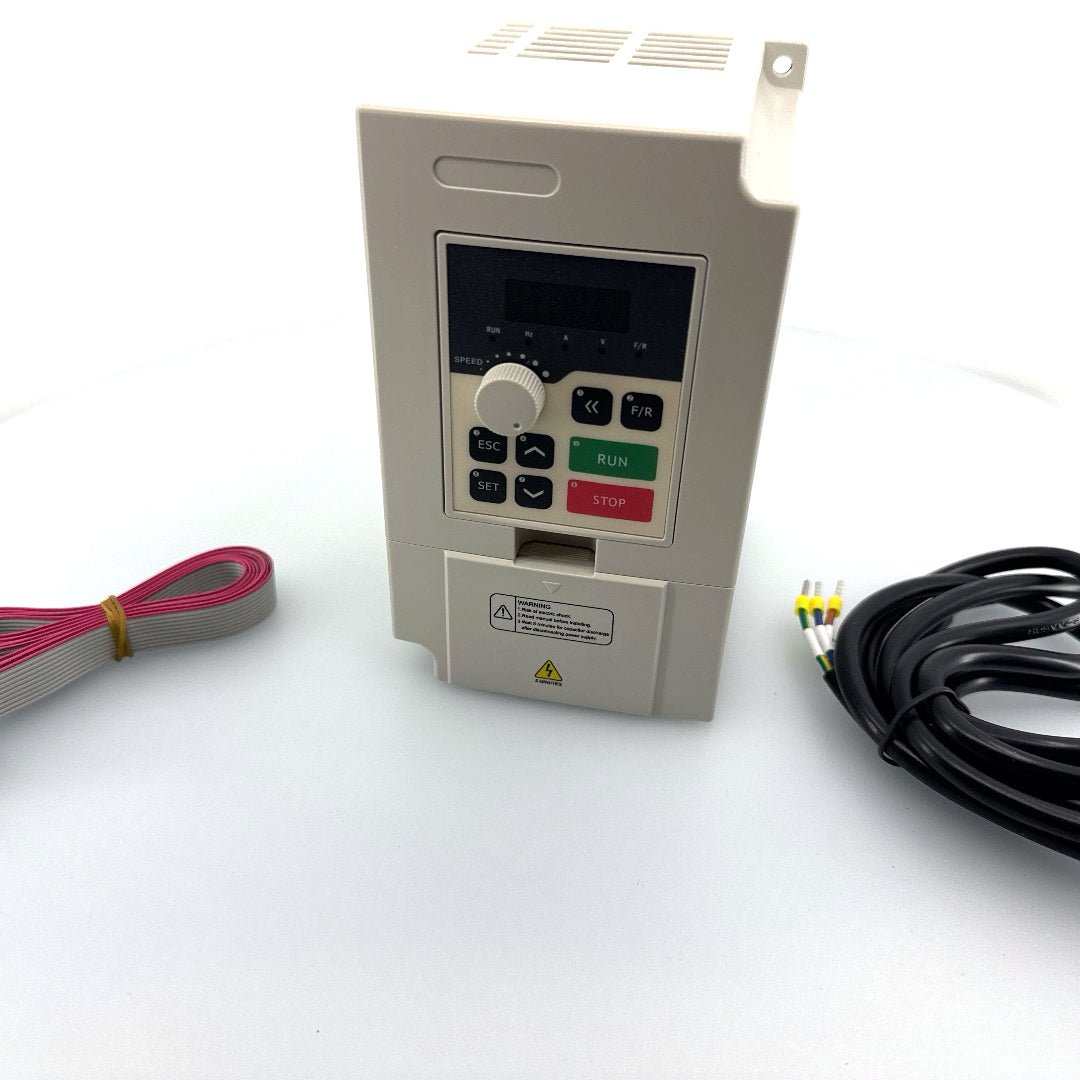

This is a listing for a Spindle and/or Inverter commonly used for CNC machines. Both of these are provided by LDO Motors for West3D (used for the Milo v1.5 we have here.)

The combination of a 110v spindle and VFD is an air cooled 1.5Kw option able to be run on most American standard wall outlets. (technical specifications being uploaded soon.)

220v spindle technical specifications:

Model LDO-GDZ-80F-1.5
Size 80x195mm
Voltage 220V
Current 8A
Frequency 400Hz
Performance 1.5kW
Rotation speed 24 000 rpm
Max. Torque 0.59Nm
Collet ER16
Tension clamp 1-10mm
Incl. Air cooling
