BIQU 42HDB4036Z-24B 1A Nema 17 Motor 1.8 degree Class F High Temp Motor with 1 meter PTFE motor harness

Save $3.00
BTTSKU: BTT1468

Price:
Sale price$10.99 Regular price$13.99

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

This is a great standard Nema 17 motor, insulation class F means it can be used safely in enclosed spaces. This is our standard spec for our Rook printer kits, but works great on most 3D printers. Comes with a 1m long motor harness.

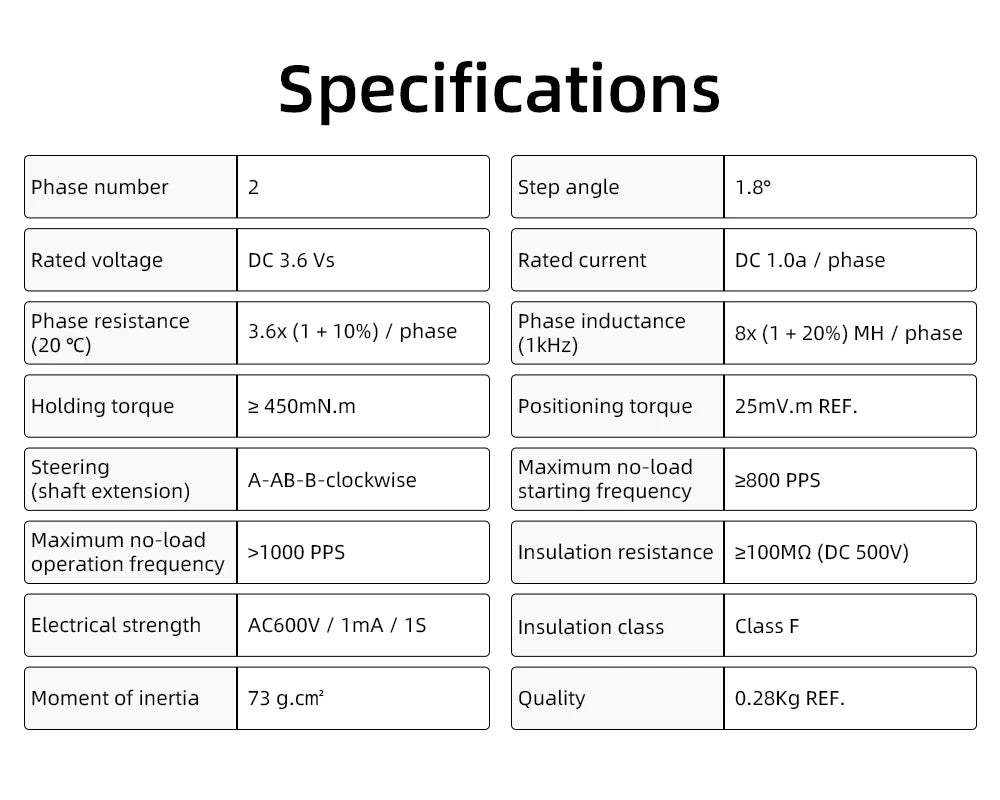

Specifications

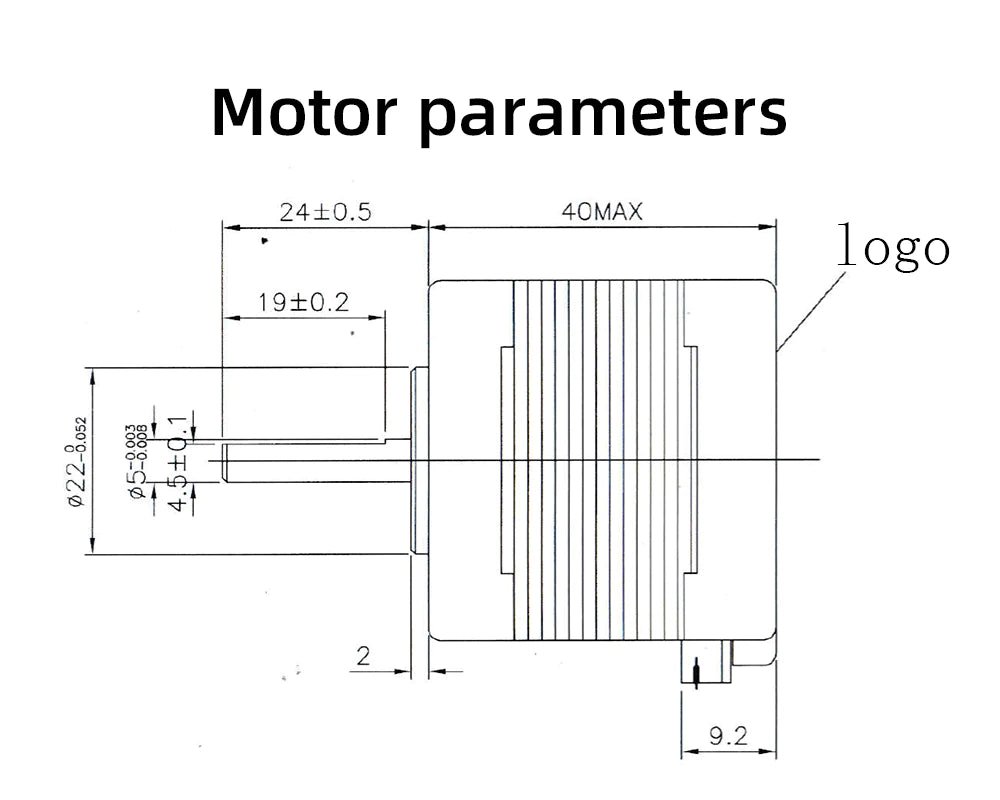

High:40mm

Shaft length:22mm

Color:Black

Phase number:2

Rated voltage:DC 3.6 Vs

Phase resistance:3.6*(1+10%) / phase

Steering(shaft extension):A-AB-B-clockwise

Maximum no-load operation frequency:>1000 PPS

Electrical strength:AC600V/1mA/1S

Moment of inertia:73 g.cm ²

Holding torque:≥450mN.m



Step angle:±1.8°

Rated current:DC 1.0a/phase

Phase inductance(1kHz):8X(1+20%)MH/phase

Positioning torque:25mV.m REF.

Maximum no-load starting frequency:≥800 PPS

Insulation resistance:≥100MΩ(DC 500V)

Insulation class:Class F

Quality:0.28Kg REF
