Product Overview¶

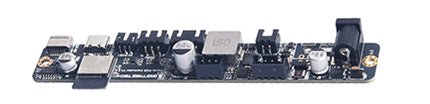

The Panda RGB Controller enables wireless control of up to two RGB light strips. You can set them to a custom display pattern or synchronize them with your 3D printer's activity.
Product Features¶
-
Onboard multiple light strip connectors, with included adapter cables for customer convenience.
-
Reserved fast programming interface for easy DIY firmware flashing and future firmware upgrades.
-
Onboard ESP32 WIFI module, supporting wireless control.
Product Specifications¶
-
Control Board Size: 100mm*25mm
-
Main Control: ESP32-C3-MINI
-
Power Input: DC5.5x2.1: 24V 3A
-
Logic Voltage: 3.3V
-
5V RGB Output Interface: PH2.0 3P: 5V 1.5A (peak), XH2.54 3P: 5V 2A (peak)
-
24V RGB Output Interface: Two XH2.54 4P: 24V 2A (peak)
-
24V Output Interface: XH2.54 2P: 24V 1.5A (peak)
Product Interface Diagram¶
For more information check out the BTT Wiki
