ChaoticLab CNC Voron Tap Complete (multiple colors)

Save $30.00
ChaoticLabSKU: CHA1199

Version: V1 Black
Price:
Sale price$19.99 Regular price$49.99

Customer Reviews

Based on 21 reviews
81%
(17)
10%
(2)
0%
(0)
5%
(1)
5%
(1)
J
JEFF STEIMLE
Good Product!

Pros
Good build quality.
Easier to setup than I thought it would be.
Works with a bed that has embedded magnets.
More consistent than inductive probe.
Helps with lot with first layer/print quality.
Status lights on probe to easily see when probe triggers.

Cons
No faster than an inductive probe

The probe speed con is largely a non issue for me. I used to do a gantry level and bed mesh at the start of every print when using the inductive probe.
I installed a Mandala Rose ultra flat bed and kinematics mount so gantry levels still run at the beginning of each print but bed meshes only run now when I change something out in the hot end/print plate or when I go from printing PLA to ABS or some filament where the bed temp is much higher.

A
Adam C McGilligan

chaotic labs tap is a solid product

I
Infinite 3D Creations
perfect service

was totally satisfied with the service. will use them again.

Description

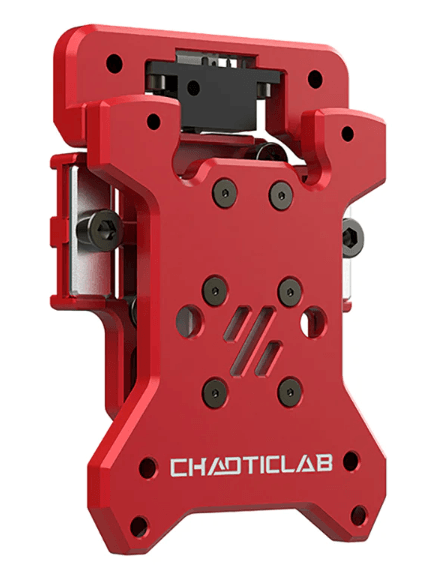

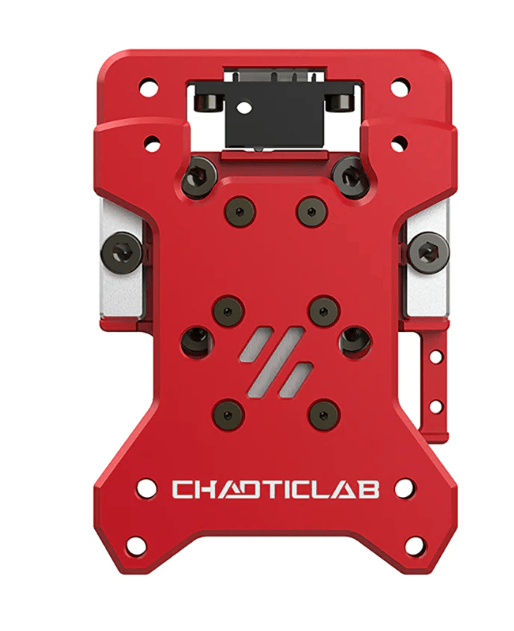

Who said installing tap was hard? This thing is pre-made, rail and all. This is CNC'd Aluminum Alloy and pretty dang light for Tap (59.8g)

V1 PRODUCT IS 5V ONLY! IF YOU WANT A 5-24v OPTION CHOOSE V2!

 CNC Voron Tap Specifics:

1. Product brief introduction

Ultra-high precision: 0.4μm (0.0004mm)

Material: All Al6061 T6 aluminum structure. Enhance wear resistance and high-temperature resistance

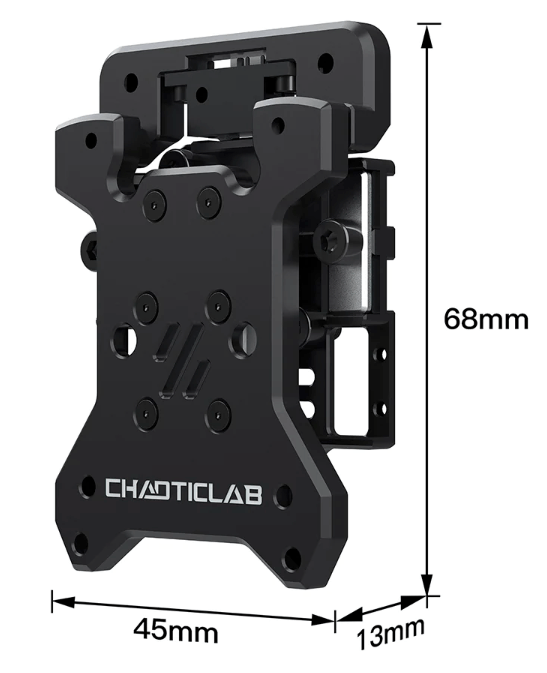

Size: 45mm*13mm*68mm

Ultra Light body: 59.8g

2. Product feature

The effective travel of the printer will not be affected  (the printed version will reduce the Y travel by 3mm or the nozzle will hit the door)

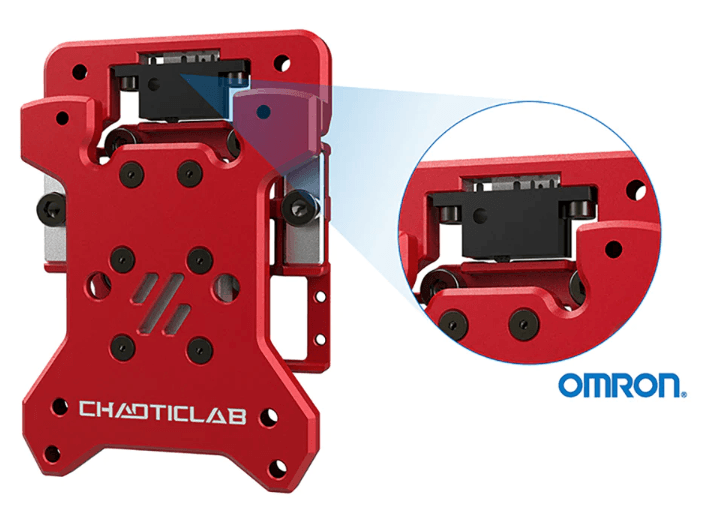

Omron D2FP-FN new optical microswitch. Lower noise, faster trigger, higher sensitivity and accuracy, and long service life.

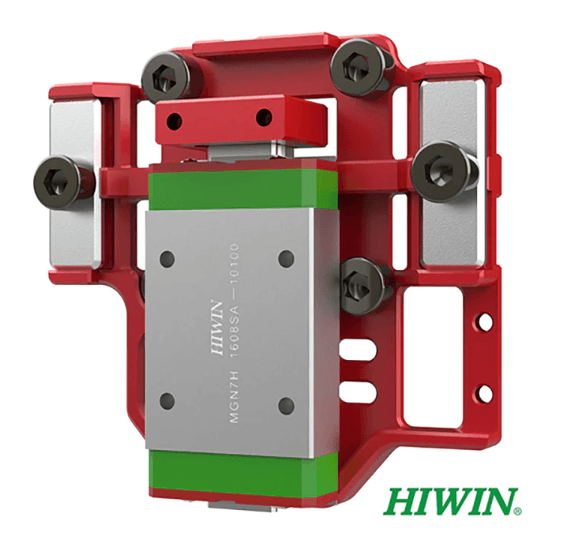

Pre-loaded linear guide rail, stronger stability, higher sliding precision

Life span: 70,000,000+ probing

Easy installation: No need to assemble and disassemble TAP itself! (Do not disassemble by yourself, otherwise, the product may be damaged!)

Suitable for: VORON V2.4 R1&R2 and VORON Trident printers

Not suitable for: Switchwire, V1.8, Legacy VORON V0. Designed for a single MGN12 style carriage.

V1 vs V2 comparison:

•The product is as light as 68g (including mounting screws), reducing the impact on the extrusion head
Effect of weight
•Brand new magnetic component to provide movement limit
•New status lights
•Supports 5-24V wide voltage, making power supply more convenient
•New OMRON proximity switch, more stable
•New X-axis fixed position, more stable installation
•Pre-installed mounting screws make installation more user-friendly

Product File:

CNC Voron Tap Build Guide
