Elegoo Mercury 3.0 PLUS Wash and Cure station

ELEGOOSKU: WES2383

Price:
Sale price$139.99

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

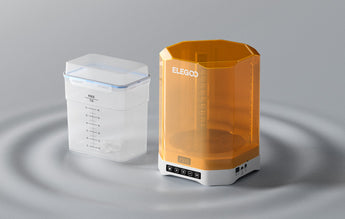

Elevate Your 3D Printing Workflow with the Elegoo Mercury 3.0 Plus Wash and Cure Station

The Elegoo Mercury 3.0 Plus is the ultimate 2-in-1 solution for post-processing your 3D printed models. This advanced wash and cure station streamlines your workflow, saving you time and effort.

Key Features:

  • Enhanced Cleaning: The upgraded cleaning system ensures thorough removal of resin residue, leaving your prints pristine.
  • Powerful Curing: The 360-degree rotating turntable and 24 powerful UV lights guarantee even and efficient curing, maximizing the strength and durability of your models.
  • Large Capacity: Accommodate larger prints or multiple smaller ones with ease, thanks to the generous tank size.
  • User-Friendly Design: The intuitive interface and easy-to-use controls make operation a breeze.
  • Safety First: The anti-UV cover protects you from harmful UV rays, ensuring a safe and worry-free experience.

Benefits:

  • Professional-Quality Finishes: Achieve stunningly smooth and detailed 3D prints that rival factory-made products.
  • Increased Productivity: Streamline your post-processing workflow and spend more time creating.
  • Improved Print Longevity: Proper curing enhances the lifespan of your 3D prints.
  • Enhanced Safety: The anti-UV cover safeguards your health and the environment.

Upgrade your 3D printing experience with the Elegoo Mercury 3.0 Plus.

From Elegoo:

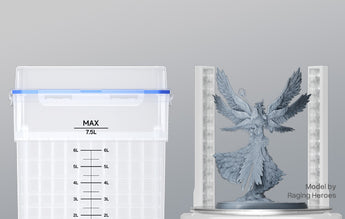

Size-Upgraded for Larger Capacity

Upgrade to Mercury Plus V3.0 for increased capacity and maximized efficiency. Designed with a generous 7.5L cleaning capacity, which is 114% greater than V2.0, and a curing size expanded by 460%, the machine ensures effortless handling of larger models or multiple prints in one go.

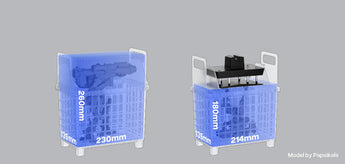

Dual Cleaning Options

There are two convenient cleaning options tailored to your specific needs.

Basket Cleaning Mode: Simply remove the model from the build plate and put it into the basket for direct cleaning. This mode accommodates a maximum wash volume of 230mm x 135mm x 260mm.

Hanging Cleaning Mode: Fix the build plate on the brackets and start cleaning. The new-added adjustable support brackets easily adapt to accommodate build plates up to 10 inches, ensuring a perfect fit for your models. This mode allows for a maximum wash volume of 214mm x 135mm x 180mm.

Thorough Cleaning

Featuring an upgraded POM bearing, Mercury Plus V3.0 ensures smoother rotation and enhanced water agitation at high-speed, resulting in more efficient model cleaning and thorough removal of residual resin.

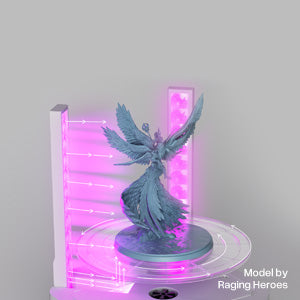

Powerful 360° All-Round Curing

The machine features a 360° rotating turntable with 24 powerful 405nm UV lights, ensuring rapid, even curing that captures every detail flawlessly. The innovative combination of lamp columns and reflective mirrors under the transparent turntable creates effective light refraction, ensuring thorough top-to-bottom curing for better-quality surfaces.

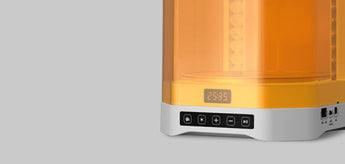

Simple Operation, Easy to Use

With an intuitive touch panel, you can easily track the setting and remaining times. Tailor the wash and cure duration (maximum 30 minutes) to your specific needs, ensuring optimal results every time.

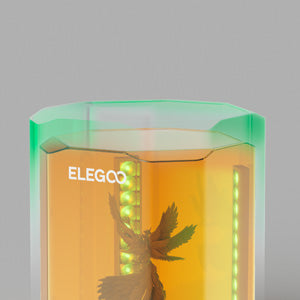

Anti-UV Protection Cover

The anti-UV cover effectively blocks 99.9% of ultraviolet rays, protecting your eyes while ensuring optimal curing. Additionally, the micro switch instantly stops the curing process when the cover is removed, providing seamless operation and enhanced safety.

Ideal Compatibility

Compatible with most LCD/DLP/SLA 3D printers on the market, providing a simple and efficient post-processing support for your prints.

It is specifically designed for all ELEGOO resin 3D printers. For the Jupiter series, you will need to remove the build plate for cleaning, while for other models, please refer to the “MAXIMUM WASH VOLUME” in the specification section to determine if the plate removal is necessary based on the model’s height.

Specification

CONTROL METHOD

Touch button

POWER REQUIREMENTS

100-240V 50/60Hz 24V 2.5A

DIMENSION

302.5mm(L)*302.5mm(W)*412.5mm(H)

PACKAGE SIZE

379mm(L)*379mm(W)*497mm(H)

GROSS WEIGHT

6.3KG

NET WEIGHT

4.7KG

MAXIMUM WASHING VOLUME

214mm *135mm *180mm (with build plate)

230mm *135mm *260mm (without build plate)

MAXIMUM CURING SIZE

∅250mm*290mm(H)
