Description
Don't like soldering little LEDs, it's OK we don't either. This takes that work out of the equation with a pre-soldered solution with wire to length to fit a XOL Toolhead
-
-

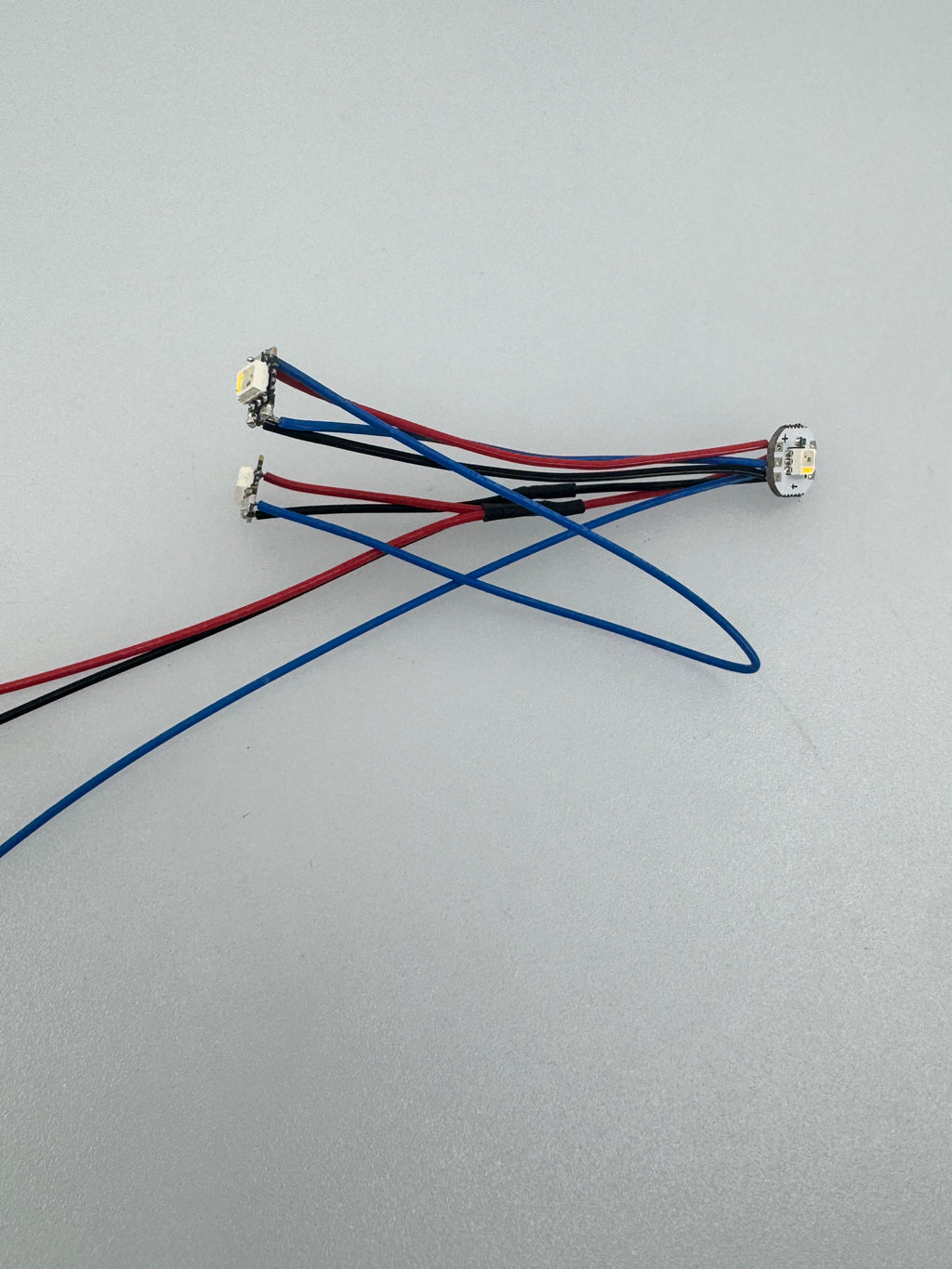

- Completely soldered and ready to go
- Includes 2x RGBW sequins and 1x Neopixel
- cable length according to BOM guidelines
- you just need to crimp the end cables.
-
More Info About the RGBW Sequins:

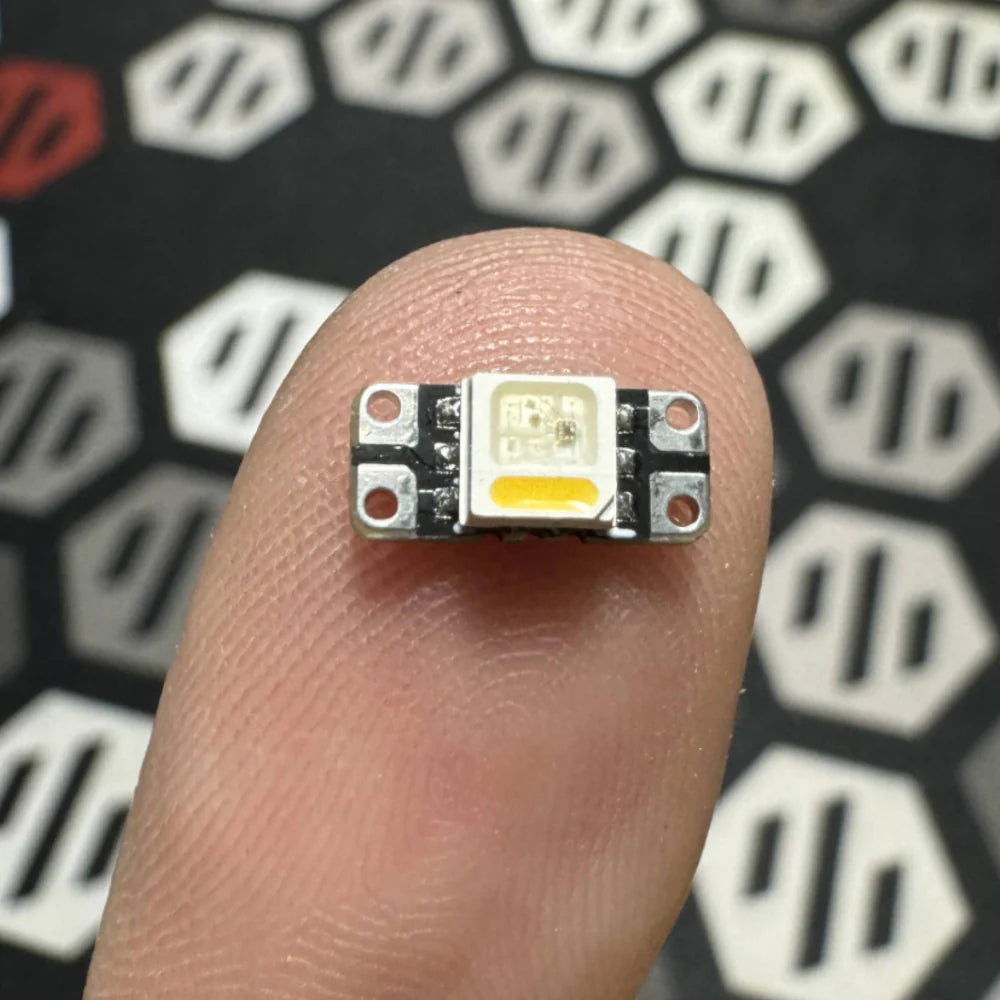

This compact, sequin-sized board features an integrated RGBW LED, combining vibrant RGB colors with a dedicated bright white light.
The white LED is exceptionally bright!
With a thickness ranging from 0.7mm to 0.8mm, it is thinner than our previous RGB sequins.
It is fully compatible with the XOL toolhead from the Armchair Team
It is also compatible with the Voron Mini SB toolhead.
Schematics:
+ = VIN 5v
DIN = DATA IN. Connect to the RGB data output of your motherboard
– = Ground
DO of the first sequin can be connected to the DIN of the second sequin to make an LED RGB Chain.
Author and credits: https://github.com/dracotonisamond/Voron-Stuff/tree/main/Pinlight
