Description
Spacious Curing Volume: Cure 3 Ultra accommodates models up to 362 x 200mm. It can tackle large parts or cure multiple models in a single run simultaneously, which greatly increases efficiency in batches post-curing, perfect for print farms, industrial mass production or bigger printing projects.
Consistent Curing: 4 LED UV Lights distributed on all sides and combined with a 360° transparent turntable to guarantee that every angle of your 3D model receives the necessary UV exposure, resulting in a flawlessly cured finish. The default curing time is 3 mins, but it can be adjusted to 30 mins according to your needs.
Fast Drying Settings: 100% dried prints are always necessary. If IPA is left on the model before curing, it will easily leave white marks and cracks. The curing station is equipped with a heated drying system that allows to set the timer from 0 to 15 mins, ensuring the prints are ready for optimum curing.
Detachable Air Filter: This curing station features a 500cm² carbon-activated filter that is magnetically attached to the back of the unit for easy installation and replacement. It is aimed to lower the resin odors, ensuring a safer and more pleasant workspace.
Safety Protection Trigger: The resin curing station will not run when the flip-hinged lid is open, the trigger will work as a safety precaution. Moreover, a plastic protective case on the curing station is provided to protect the users from direct exposure to the UV light, while still allowing users to observe the curing status.

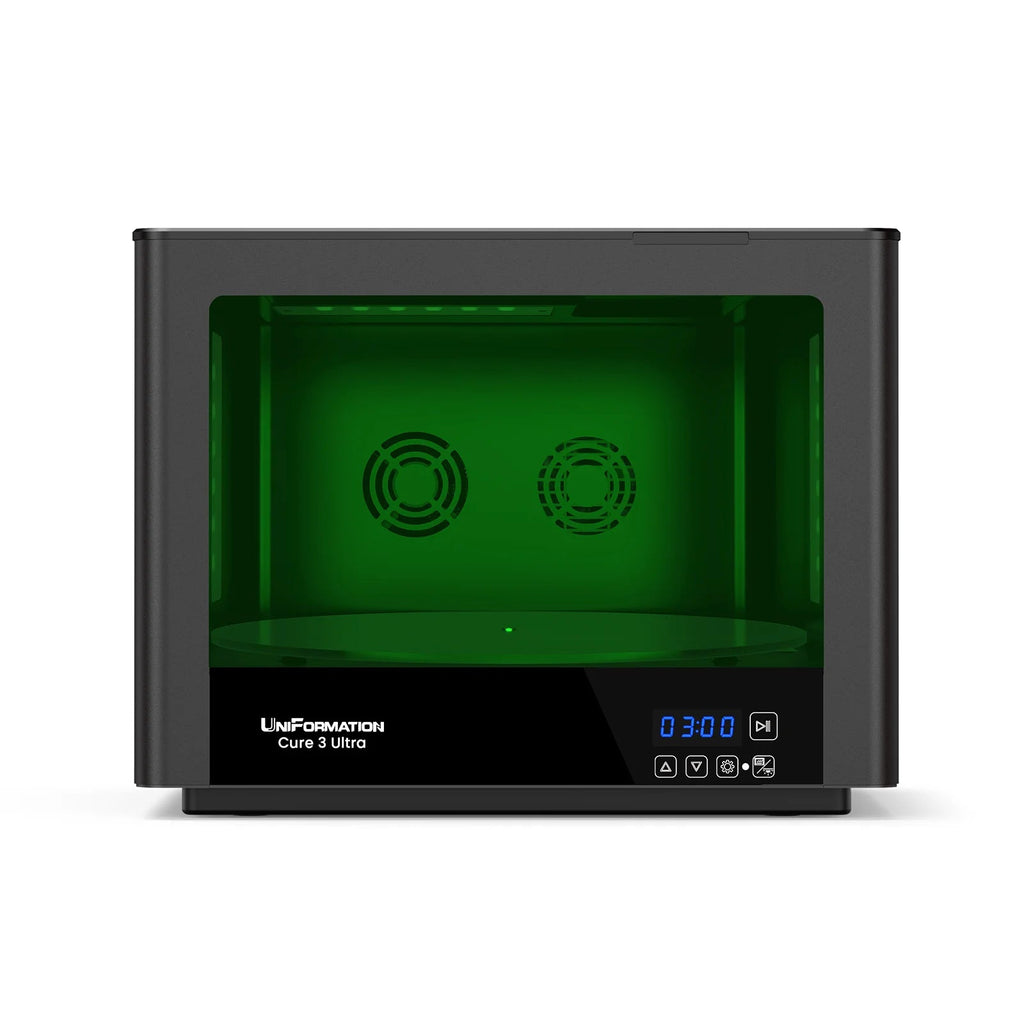

Uniformation - Cure3 Ultra
For seamless workflow efficiency
Specification
| Product Dimensions | L399*W437*H305mm |
|---|---|
| Space For Models | D362*H200mm |
| Scope of Application | Figures, Jewelry, Dentistry, Precision Parts, Models, etc. |
| Timing Range | The setting defaults to a drying time of 5 minutes(maximum 15 minutes per run) and a curing time of 3 minutes (maximum 30 minutes per run). |
| Curing Method | 400-405nm UV light rotation curing |
| Drying Method | Heat drying(45°C-50°c) |
| Input Voltage | 110V/220V(Please select the appropriate voltage version based on your country's voltage) |
| Power Consumption | Drying 300W,Curing 80w |
| Weight | 15.IKg |
